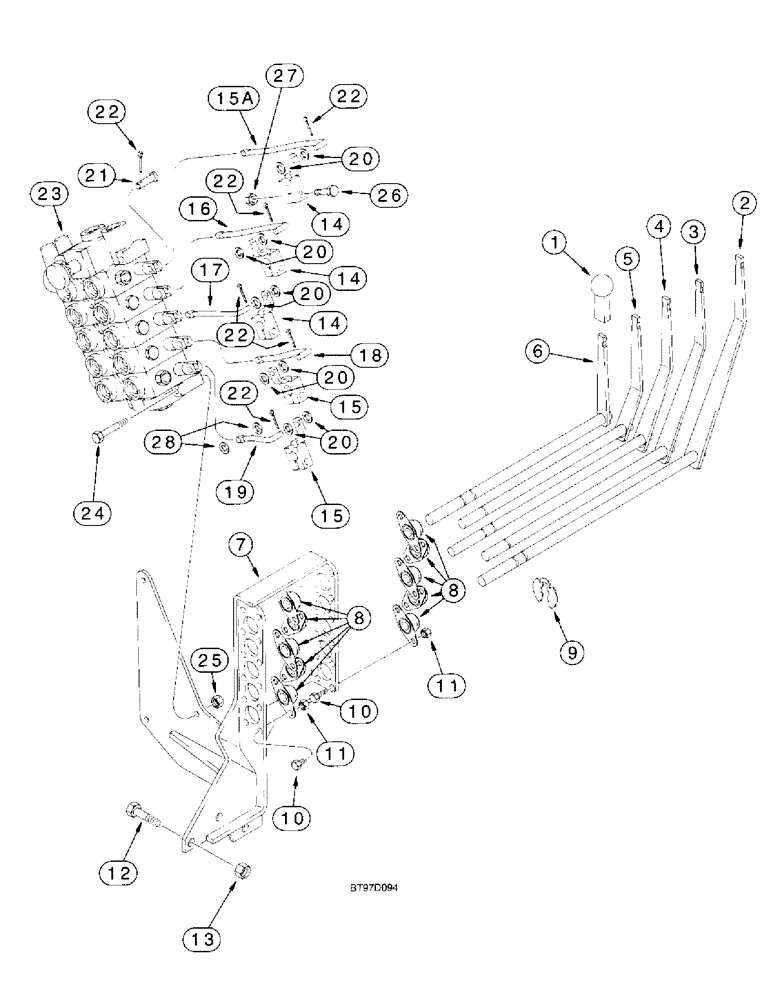

Запчасти Case 580L (9-056) - THREE-POINT HITCH CONTROLS, (3RD LEVER, REF 4, IS TILT; 4TH LEVER, REF 3 IS PITCH), 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

1

D135387

GRIP

KNOB lever

5шт.

2

227968A1

LEVER

lift control

1шт.

3

227966A1

LEVER

pitch control

1шт.

4

227970A1

LEVER

tilt control

1шт.

5

227973A1

LEVER

implement control, front auxiliary

1шт.

6

227975A1

LEVER

implement control, rear auxiliary

1шт.

7

227963A2

LEVER

BRACKET valve and control lever mounting

1шт.

8

L15401

BEARING,15.89mm ID

pivot, self aligning, 5/8 inch

10шт.

9

D95096

SNAP RING,M15.88 x 1.27mm Thk

retaining

8шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

6шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

12шт.

12

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12 - 1.75 x 45 mm, Valve mounting bracket to three point hitch frame

3шт.

13

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

3шт.

14

142244A1

COUPLING FLANGE

RETAINER short pivot

3шт.

15

142245A2

COUPLING FLANGE

RETAINER long pivot

2шт.

15a

181487A1

THREADED ROD

ROD implement control, rear auxiliary, Serial Range: shaft-valve

1шт.

16

181486A1

THREADED ROD

ROD implement control, front auxiliary, Serial Range: shaft-valve

1шт.

17

181485A1

THREADED ROD

ROD control, Serial Range: shaft-valve

1шт.

18

181484A1

ROD

control, Serial Range: shaft-valve

1шт.

19

197354A1

THREADED ROD

ROD lift control, Serial Range: shaft-valve

1шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

21

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

5шт.

22

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

10шт.

23

142252A2

VALVE, CONTROL

VALVE ASSEMBLY, three point hitch control, five spool, see Figure 9-001

1шт.

24

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

hex, valve to mounting, 8.8, M8 x 1.25 x 70

3шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

3шт.

26

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

5шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

5шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Lift control rod M6

2шт.
