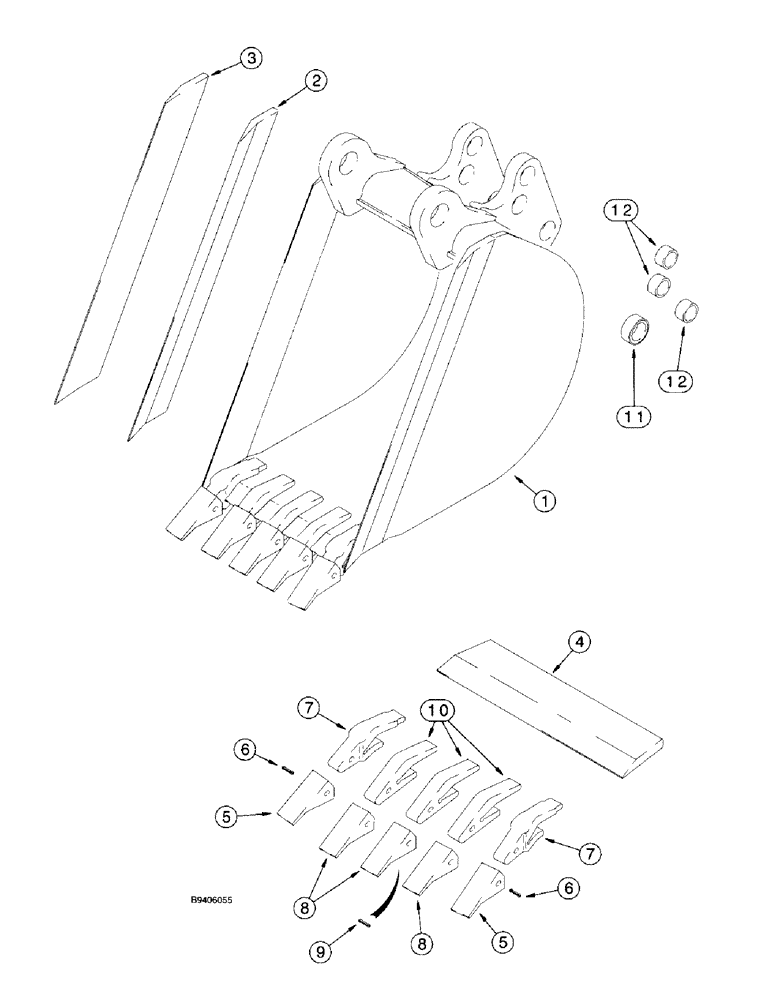

Запчасти Case 580L (9-051) - UNIVERSAL BACKHOE BUCKETS, TRENCHING BUCKET & TEETH - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D150348

BUCKET

ASSEMBLY, heavy duty trenching, with 5 teeth, 610 mm, 24 inch wide, order from machinery price list, Includes: Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, bucket, 610 mm, 24 inch wide

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, bucket, 610 mm, 24 inch wide

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE cutting, center, 610 mm, 24 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 610 mm, 24 inch wide, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

tooth, outer corners, 610 mm, 24 inch wide

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, 610 mm, 24" wide

1шт.

7

D138157

SHANK

tooth, outer corners, 610 mm, 24 inch wide

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, 610 mm, 24 inch wide, Includes Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 610 mm, 24 inch wide

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, 610 mm, 24" wide

1шт.

10

D48212

SHANK

tooth, center, 610 mm, 24 inch wide

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 610 mm, 24 inch wide

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 610 mm, 24 inch wide

6шт.

1

D150364

BUCKET

ASSEMBLY, heavy duty trenching, with 5 teeth, 762 mm, 30 inch wide, not shown, order from machinery price list, Includes: Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, bucket, 762 mm, 30 inch wide

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, bucket, 762 mm, 30 inch wide

1шт.

4

D145061

EDGE, CUTTING

EDGE cutting, center, 762 mm, 30 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 762 mm, 30 inch wide, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

tooth, outer corners, 762 mm, 30 inch wide

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, 762 mm, 30" wide

1шт.

7

D138157

SHANK

tooth, outer corners, 762 mm, 30 inch wide

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, 762 mm, 30 inch wide, Includes Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 762 mm, 30 inch wide

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, 762 mm, 30" wide

1шт.

10

D48212

SHANK

tooth, center, 762 mm, 30 inch wide

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 762 mm, 30 inch wide

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 762 mm, 30 inch wide

6шт.
