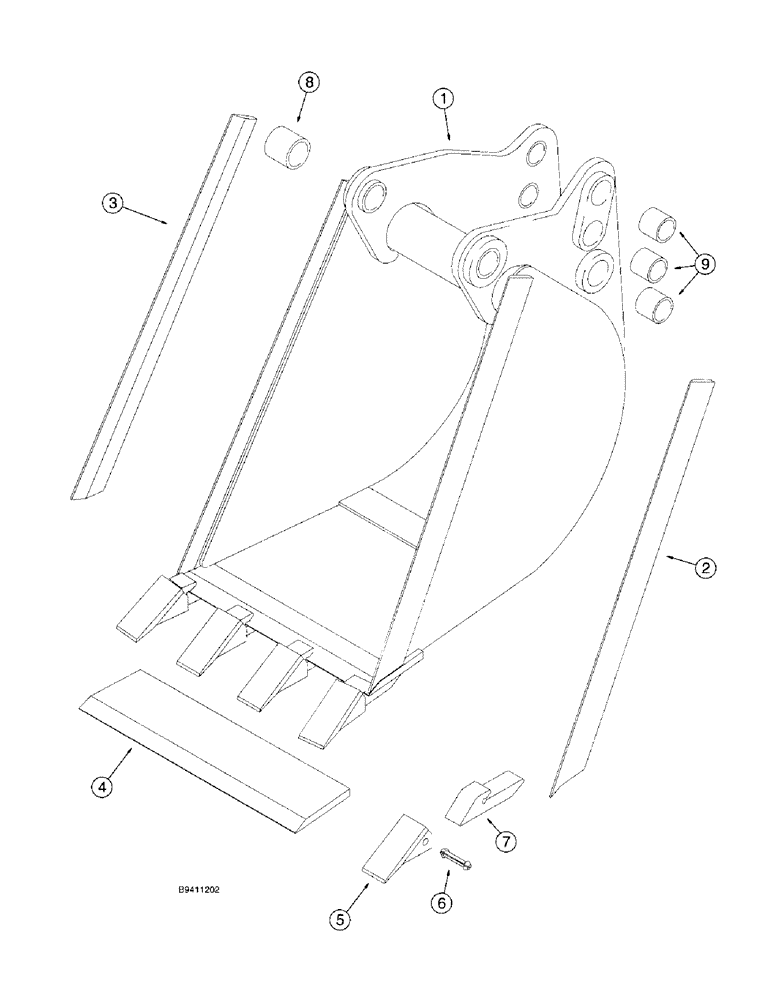

Запчасти Case 580L (9-050) - BACKHOE BUCKETS, 457 MM (18 INCH) WIDE TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

183808A1

BUCKET

ASSEMBLY, trenching, with 4 teeth, 457 mm, 18 inch wide, order from machinery price list, See Figure 9-49 for 18 inch Universal bucket, Includes: Ref. 2-4, 8-9, and P/N D41659

1шт.

2

129894A1

EDGE

cutting, right hand side, bucket

1шт.

3

129893A1

EDGE

cutting, left hand side, bucket

1шт.

4

183810A1

EDGE

cutting, center, 457 mm, 18 inch bucket

1шт.

D41659

TOOTH

ASSEMBLY, bucket, Includes: Ref. 5-7

4шт.

5

D39093

TOOTH

POINT tooth

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
