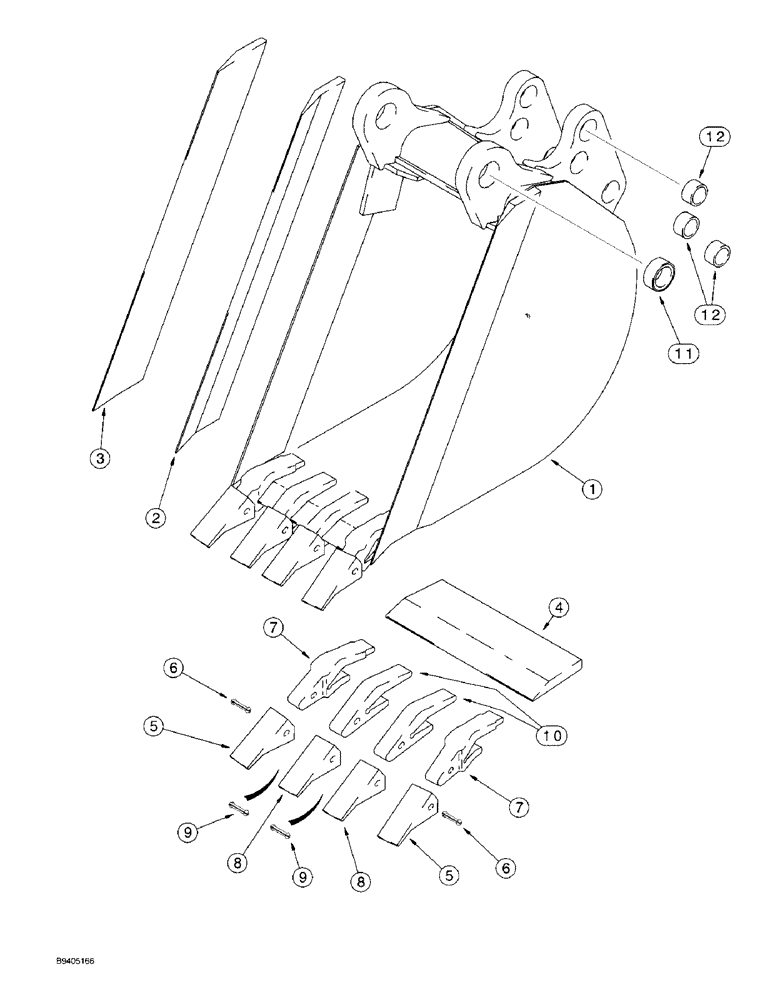

Запчасти Case 580L (9-049) - UNIVERSAL BACKHOE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D147247

BUCKET

ASSEMBLY, heavy duty trenching, with 3 teeth, 406 mm, 16 inch wide, not shown, order from machinery price list, Includes: Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

4

D147249

EDGE

cutting, center, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

tooth, outer corners, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, 406 mm, 16" wide trenching bucket & teeth, heavy duty

1шт.

7

D138157

SHANK

tooth, outer corners, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, 406 mm, 16 inch wide, trenching bucket & teeth, heavy duty, Includes Ref 8-10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, 406 mm, 16" wide trenching bucket & teeth, heavy duty

1шт.

10

D48212

SHANK

tooth, center, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 406 mm, 16 inch wide trenching bucket & teeth, heavy duty

6шт.

1

D146588

BUCKET

ASSEMBLY, heavy duty trenching, with 4 teeth, 457 mm, 18 inch wide, order from machinery price list, Includes: Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE cutting, center, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

tooth, outer corners, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, 457 mm, 18" wide, trenching bucket and teeth, heavy duty

1шт.

7

D138157

SHANK

tooth, outer corners, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty, Includes Ref 8-10

2шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, 457 mm, 18" wide, trenching bucket and teeth, heavy duty

1шт.

10

D48212

SHANK

tooth, center, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 457 mm, 18 inch wide, trenching bucket and teeth, heavy duty

6шт.
