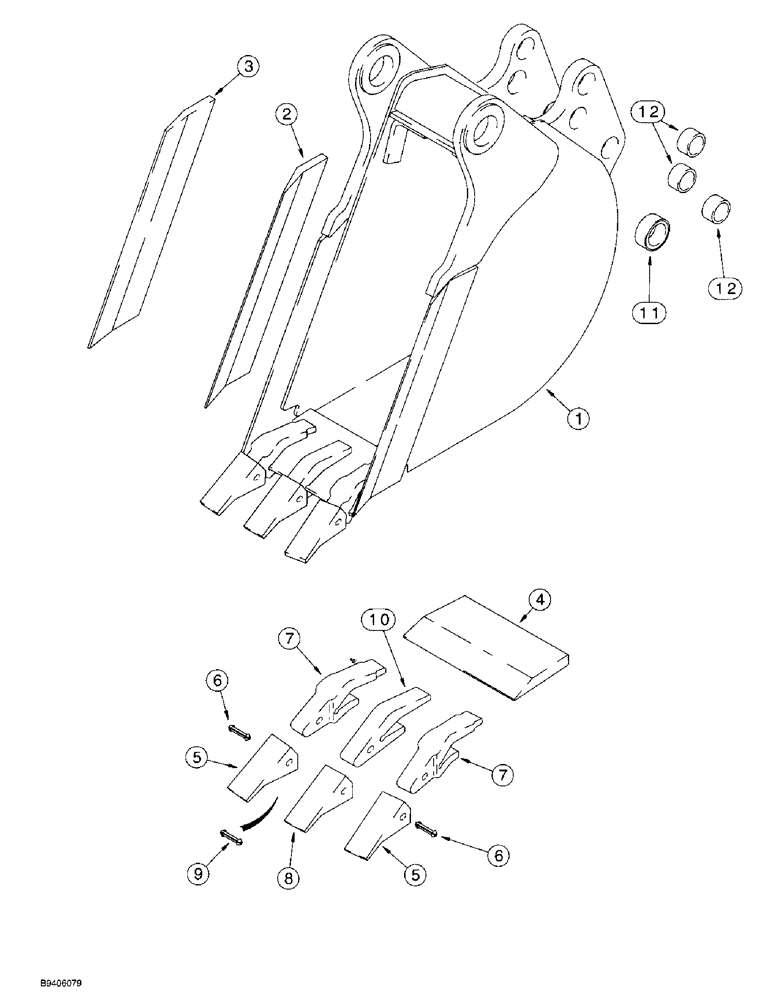

Запчасти Case 580L (9-048) - UNIVERSAL BACKHOE BUCKET, 305 MM (12 INCH) WIDE TRENCHING BUCKET AND TEETH - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D147418

BUCKET

ASSEMBLY, heavy duty trenching, with 3 teeth, 305 mm, 12 inch wide, order from machinery price list, Includes: Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

See Ref. 32 on Figure 9-046 for pin used on 12 inch Universal bucket.

1шт.

2

D147411

EDGE, CUTTING

EDGE cutting, right hand side, bucket

1шт.

3

D147410

EDGE

cutting left hand side, bucket

1шт.

4

D147409

EDGE, CUTTING

EDGE cutting, center, 305 mm, 12 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

tooth, outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8-10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2/1/4 x 3/4 inch

1шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

1шт.
