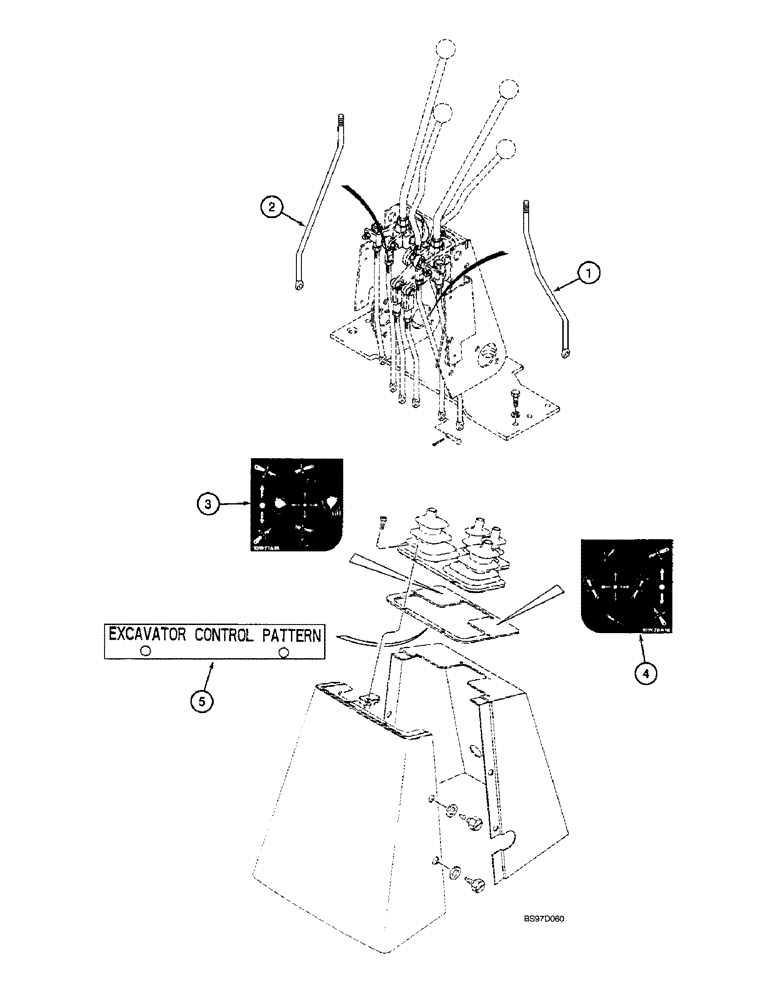

Запчасти Case 580L (9-039) - BACKHOE CONTROLS, IN EXCAVATOR CONTROL PATTERN (09) - CHASSIS/ATTACHMENTS

245592A1

KIT

excavator control pattern, purchase from parts and componenets, Includes: Ref. 1-5

1шт.

1

195030A2

ROD

dipper, Replaces: existing boom control rod

1шт.

The right hand control lever, which used to control the dipper, now controls the boom and the left hand control lever, which used to control the boom, now controls the dipper. The machine must be equipped with hand swing controls. If your machine is equipped with Case foot swing controls, the foot swing to hand swing controls field kit must be ordered and installed before installing this kit.

1шт.

2

195032A1

ROD

boom, Replaces: existing dipper control rod

1шт.

The right hand control lever, which used to control the dipper, now controls the boom and the left hand control lever, which used to control the boom, now controls the dipper. The machine must be equipped with hand swing controls. If your machine is equipped with Case foot swing controls, the foot swing to hand swing controls field kit must be ordered and installed before installing this kit.

1шт.

3

E49498

DECAL

control, right hand

1шт.

4

E49497

DECAL

control, left hand

1шт.

5

198410A1

LARGE PLATE

PLATE excavator control pattern

1шт.
