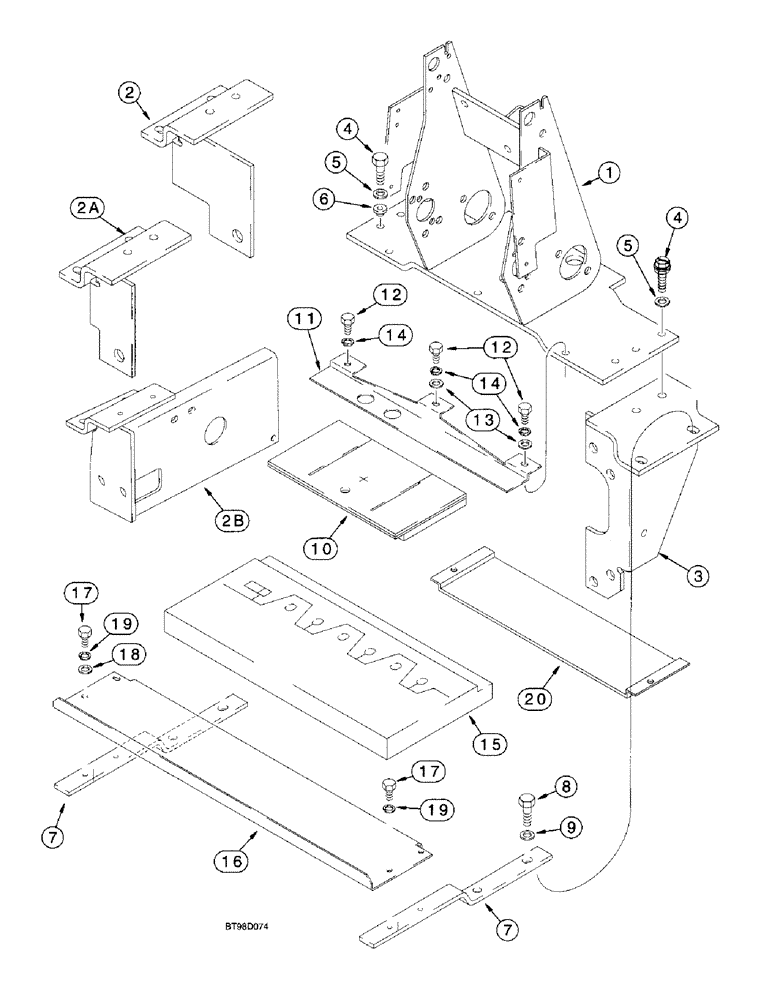

Запчасти Case 580L (9-034) - BACKHOE CONTROL TOWER SUPPORT AND SEALS (09) - CHASSIS/ATTACHMENTS

1

185975A1

SUPPORT

backhoe control mounting, with three mounting holes in base for Ref. 11 seal support bracket

1шт.

2

180376A1

SUPPORT

BRACKET mounting, left hand, 6 spool valve

1шт.

2a

180402A1

SUPPORT

BRACKET mounting, left hand, 7 spool valve, without auxiliary hydraulics

1шт.

2b

300580A1

BRACKET

mounting, left hand, 7 or 8 spool valve, with auxiliary hydraulics

1шт.

3

121519A1

SUPPORT

BRACKET mounting, right hand, valve mounting

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

flat, hardened, 13/32 x 1-1/8 x 9/64 inch

4шт.

6

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

Mount Console

2шт.

7

184696A1

SUPPORT

BRACKET seal support, front, if used, Ref. 20 may replace Ref. 7 and 16 on some models

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

flat, hardened, 13/32 x 1-1/8 x 9/64 inch

4шт.

10

182295A1

SUPPORT

SEAL foam, control tower

1шт.

11

184695A1

SUPPORT

BRACKET seal support, front

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

15

232875A1

BAFFLE

SEAL noise reduction, backhoe valve rods

1шт.

16

184694A1

CHANNEL

BRACKET seal support, rear, if used, Ref. 20 may replace Ref. 7 and 16 on some models

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

If used Hex, M6 x 16, 8.8

4шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If used M6

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, , If Used M6

4шт.

20

300840A1

SUPPORT

BRACKET foam support, Replaces: Ref. 7 and 16 on some models

1шт.
