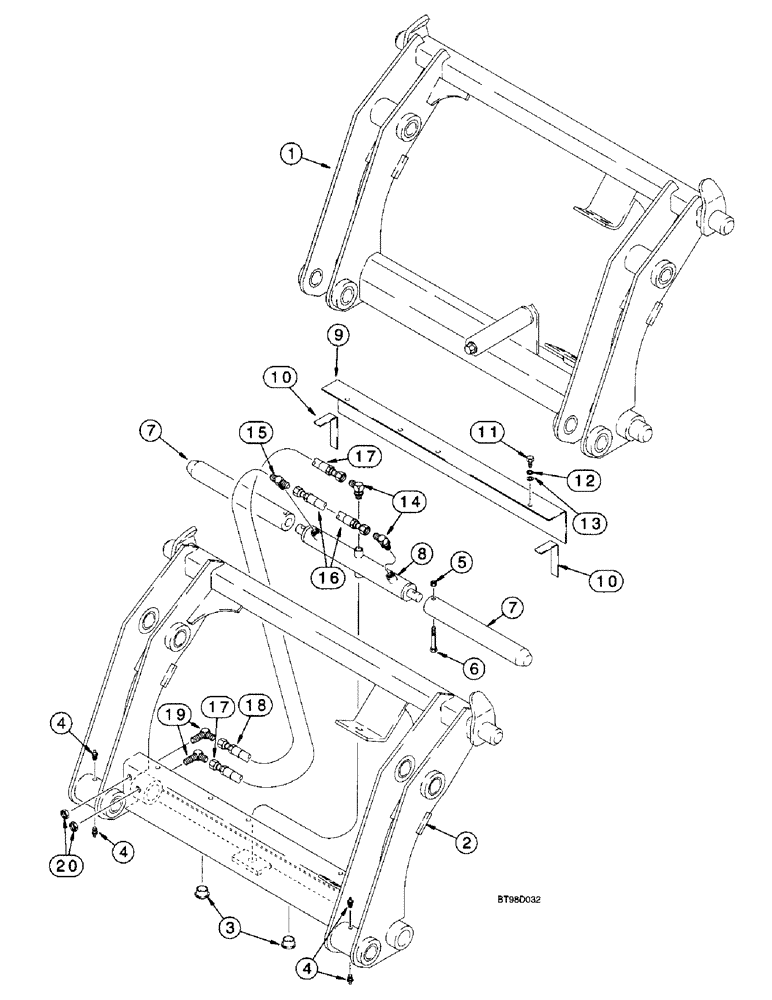

Запчасти Case 580L (9-032) - TOOL QUICK COUPLERS (09) - CHASSIS/ATTACHMENTS

1

191239A1

COUPLING

COUPLER tool, loader, manual, used with D121194 bucket position pointer and 139235A1 right hand bucket cylinder link, Ref. 6 and 13, on Figure 9-13 and Ref. 40-44, Figure 8-67, if used

1шт.

Coupler comes complete, component parts are not serviced separately.

1шт.

292969A2

COUPLING

COUPLER quick, tool, loader, hydraulic, with auxiliary hydraulics, category III, for complete assembly order from machiner price list, Includes: Ref. 2 - 35

1шт.

See Figure 8-060 for hydraulic tool quick coupler hydraulics.

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME quick tool coupler, hydraulic

1шт.

3

305497A1

PLUG,1.25" x 0.5"

plastic, quick tool coupler, hydraulic, 1-1/4 ID x 1/2 inch OD

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Quick tool coupler, hydraulic 1/4"-28 x .56" lg, Self-Tap

4шт.

5

231-4246

LOCK NUT,3/8"-16, GB

NUT, LOCK, , Tool quick coupler, Hydraulic 3/8"-16, GB

2шт.

6

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

Quick tool coupler, hydraulic Hex, 3/8"-16 x 2 1/2", G8

2шт.

7

305496A1

PIN,49.23mm OD x 381mm L

quick tool, coupler, hydraulic, 1-15/16 OD x 15 inch long

2шт.

8

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double acting, Quick tool coupler, Component parts not serviced separately

1шт.

305499A1R

REMAN-HYD CYLINDER

570LXT LANDSCAPER, 580L BACKHOE, BOTH SERIES 2 (1/98-)

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

9

305495A1

COVER

channel, quick tool coupler, hydraulic

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL foam, quick tool coupler hydraulic

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, quick tool coupler, hydraulic, 5/16 NC x 1 inch

3шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Tool quick coupler, hydraulic 5/16"

3шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Quick tool coupler, Hydraulic

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, quick tool coupler, hydraulic, 18-9/16 inch flare x adj. O-ring boss, Includes: P/N 237-6006

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

15/32 ID x 5/64 inch wide

1шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

quick tool coupler, hydraulic, 18-9/16 inch adj. O-ring branch x flare x flare, Includes: P/N 237-6006

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

15/32 ID x 5/64 inch wide

1шт.

16

305492A1

HYDRAULIC HOSE,260.00 mm

- Quick tool coupler 260.00 mm

1шт.

17

305494A1

HYDRAULIC HOSE,387.00 mm

- Quick tool coupler 387.00 mm

1шт.

18

305493A1

HYDRAULIC HOSE,235.00 mm

- Quick tool coupler 235.00 mm

1шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Quick tool coupler, hydraulic 90º Blkhd, 9/16"-18, 37º x 9/16"-18, 37º

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, hex, lock bulkhead, quick tool coupler, hydraulic, 9/16 inch NF

2шт.

21

305508A1

DECAL KIT

KIT, DECALS, Quick tool coupler, Hydraulic, Incl. Four decals, Not shown

1шт.

22

307385A1

HYDRAULIC HOSE,387.40 mm

HOSE, HYDRAULIC (15-1/4") used to service couplers 292969A2 and 86982425 387.40 mm

2шт.

22

84203107

HYDRAULIC HOSE,469.9mm L

HOSE, HYDRAULIC 469.9mm (18.5") used to service couplers 87602620 and 87602625

2шт.

23

307386A1

HYDRAULIC HOSE,628.70 mm

HOSE, HYDRAULIC, Quick tool coupler, , 24-3/4" long, Not shown 628.70 mm

1шт.

24

307387A1

HYDRAULIC HOSE,717.60 mm

HOSE, HYDRAULIC, Quick tool coupler, , Not shown 717.60 mm

1шт.

25

307388A1

HOSE PROTECTION,26" / 660.4mm L

HOSE, PROTECTION, Quard, Quick tool coupler, Hydraulic, 660 mm, 26" long, Not shown

1шт.

26

307389A1

PIVOT

SWIVEL coupler, quick tool coupler, hydraulic, not shown

2шт.

27

137344A1

PLUG

CAP male coupling, quick tool coupler, hydraulic, not shown

1шт.

28

137343A1

PLUG

CAP female coupling, quick tool coupler, hydraulic, not shown

1шт.

29

123537A1

COUPLING, QUICK, FEM

COUPLING, QUICK, FEMALE, Disconnect, Quick tool coupler, Hydraulic, Not shown

1шт.

30

245423A1

FITTING

COUPLER hydraulic, quick tool coupler, not shown

1шт.

31

126155A1

FITTING

CONNECTOR straight, bulkhead, quick tool coupler, hydraulic, not shown

2шт.

32

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

90 degree, quick tool coupler, hydraulic, 14-7/8 inch flare x bulkhead flare, not shown

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT hex, lock, bulkhead, quick tool coupler, hydraulic, 1-1/16 inch NF, not shown

2шт.

34

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

NUT hex, lock quick tool coupler, hydraulic, 7/8 inch NF, not shown

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Quick tool coupler, hydraulic, not shown

2шт.
