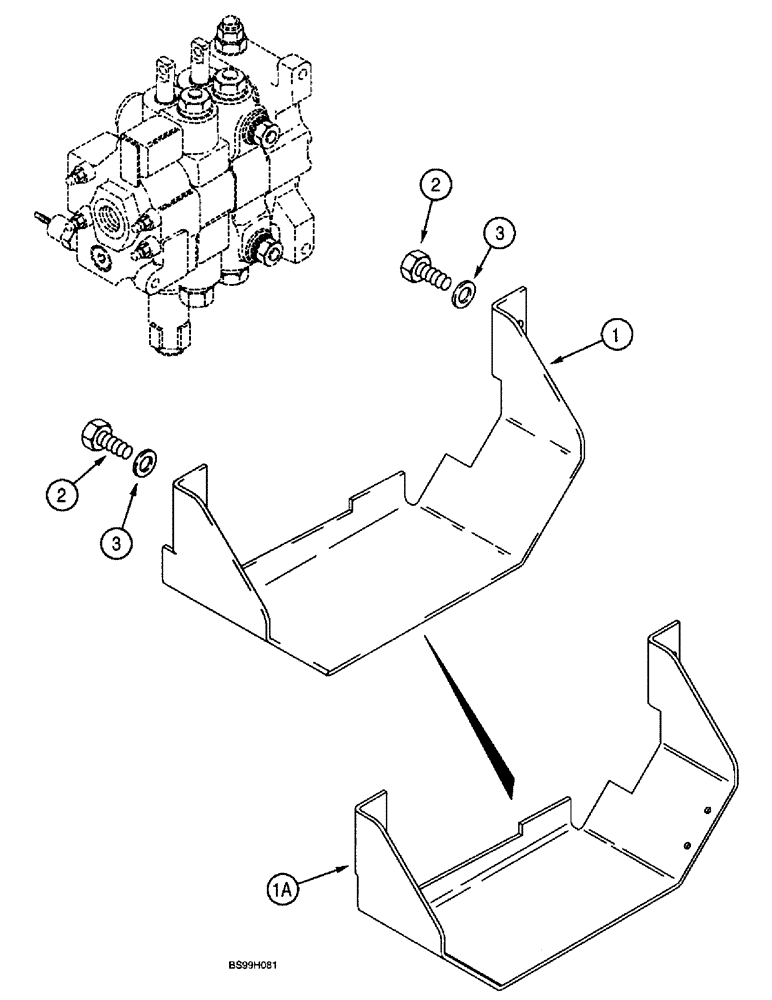

Запчасти Case 580L (9-031) - LOADER VALVE GUARD (09) - CHASSIS/ATTACHMENTS

1

238048A2

SHIELD

GUARD valve shield, if used

1шт.

1a

330100A1

SHIELD

BUCKET ASSEMBLY, clam, 2083 mm, 82 inch wide, order from machinery price list, Includes: Ref. 3-9, 12-14, and P/N's 175156A1, 175160A1

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.
