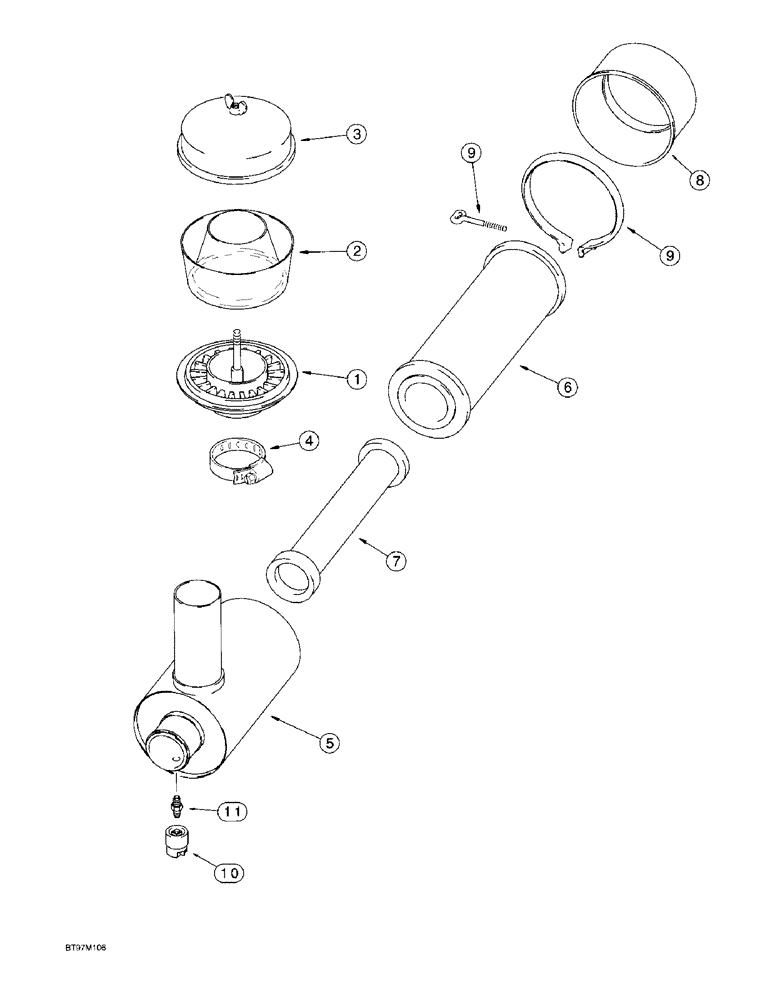

Запчасти Case 580L (2-12) - AIR CLEANER AND PRECLEANER ASSEMBLIES, MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

228120A1

PRECLEANER

ASSEMBLY, air cleaner, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY precleaner assy.

1шт.

2

277377R1

FILTER BOWL

BOWL precleaner assy.

1шт.

3

A42281

COVER

precleaner assy.

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Precleaner assy. #64, 3.56/4.50 Type F Worm

1шт.

293571A1

AIR CLEANER

CLEANER ASSEMBLY, air, engine, Includes: Ref. 10, 11, and P/N 226378A1

1шт.

226378A1

AIR CLEANER

CLEANER ASSEMBLY, air, engine, Includes: Ref. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING air cleaner assy.

1шт.

6

222421A1

AIR FILTER

ELEMENT primary, air cleaner assy.

1шт.

7

222422A1

AIR FILTER

ELEMENT secondary, air cleaner assy.

1шт.

8

247743A1

FILTER COVER

COVER end cap, air cleaner assy.

1шт.

9

R21391

CLAMP

band, Includes hardware, housing to end cover, Includes bolt, air cleaner assy.

1шт.

10

292740A1

RESTRICTION SWITCH

SWITCH air restriction, air cleaner assy.

1шт.

11

D36264

FITTING

ADAPTER air restriction indicator, air cleaner assy.

1шт.
