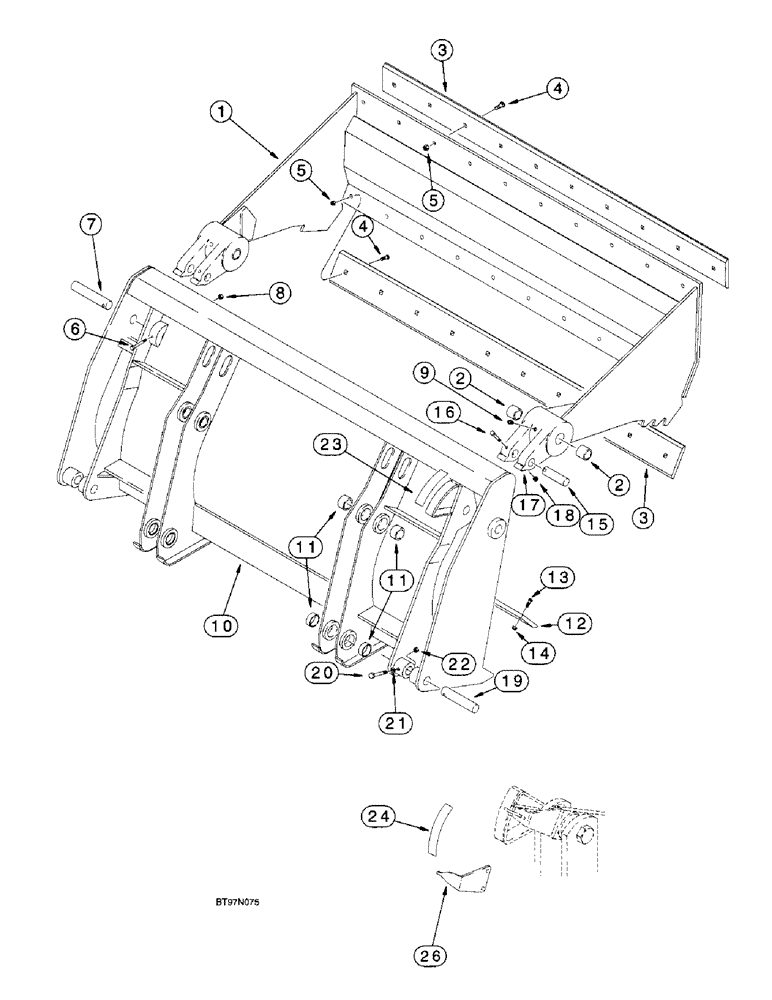

Запчасти Case 580L (9-030) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

315003A1

BUCKET

ASSEMBLY, clam, loader, with hydraulics, 2083 mm, 82 inch wide, order from machinery price list, Includes: Ref. 1 - 23 below and Ref. 1 - 21 hydraulics on Figure 8-18, Includes: Ref. 15-23, and P/N 185488A1

1шт.

185488A1

BUCKET

ASSEMBLY, clam, 2083 mm, 82 inch wide, order from machinery price list, Includes: Ref. 3-9, 12-14, and P/N's 175156A1, 175160A1

1шт.

175156A1

CLAMSHELL BUCKET

BUCKET, CLAMSHELL, Assy, Incl Ref 1-2

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM bucket

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

clam pivot, 25 mm, 1 inch long, clam pivot

4шт.

3

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

EDGE, CUTTING, Bucket

2шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

20шт.

5

29-1012

NUT,3/4"-10, G8

hex, 3/4 inch NC, grade 8

20шт.

6

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

heavy hex flange, 10 - 1.5 x 110 mm

2шт.

7

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

175160A1

4 IN 1 BUCKET

BLADE ASSEMBLY, clam bucket, Includes: Ref. 10-11

1шт.

10

NSS

NOT SOLD SEPARAT

BLADE bucket

1шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

12

121920A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L

EDGE, CUTTING, Blade

1шт.

13

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

BOLT, PLOW, 5/8"-11 x 2", G8, Full Thd

10шт.

14

29-1010

NUT,5/8"-11, G8

hex, 5/8 inch NC, grade 8

10шт.

15

D51392

PIN,31.72mm OD x 101.6mm L

cylinder mounting, upper

2шт.

16

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

19

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

20

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

hex, 10 - 1.5 x 80 mm

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

23

321-1708

DECAL

0 - 2 - 4, clam bucket opening indicator

1шт.

24

321-1707

DECAL

clam bucket position

1шт.

26

250851A1

POINTER

bucket position, bolts to clam bucket link, see Figure 9-027 for link and mounting hardware

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
