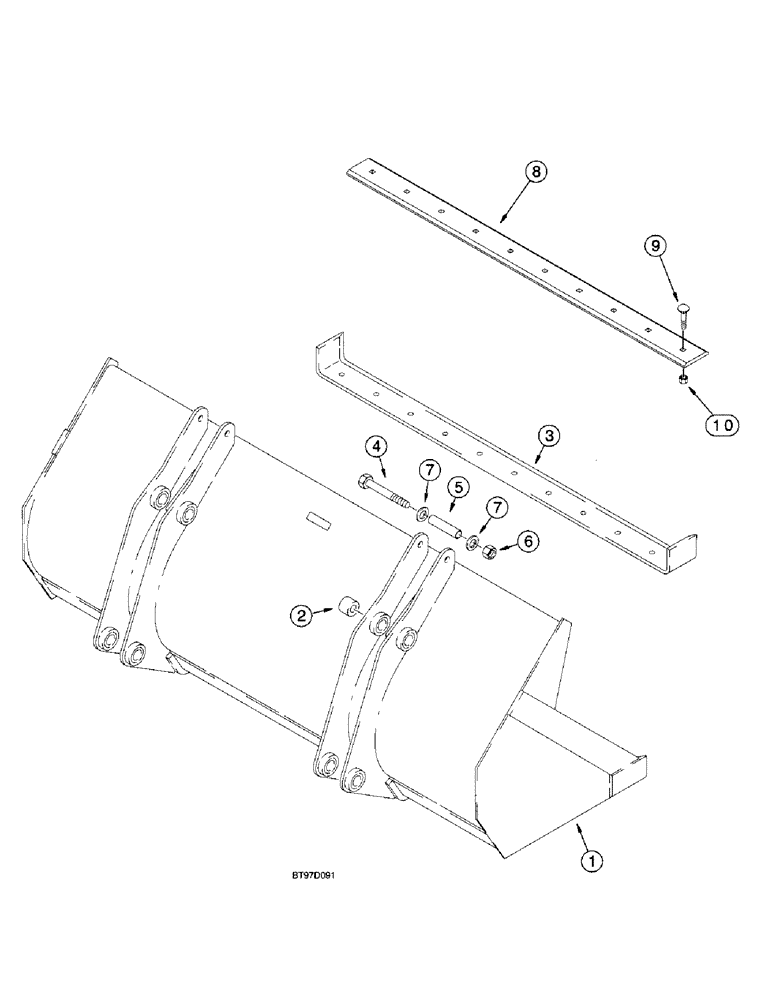

Запчасти Case 580L (9-028) - LOADER LONG LIP BUCKETS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
253125A1
BUCKET
ASSEMBLY, loader, without bucket teeth, 2083 mm, 82 inch wide, order from machinery price list, Includes: Ref. 1, 4-7
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET loader, Includes: Ref. 2-3
1шт.
2
D129264
BUSHING,40.3mm ID x 50mm OD x 28mm L
bucket ear
8шт.
3
132988A1
CUTTING EDGE
cutting, center, 2083 mm, 82 inch bucket
1шт.
4
828-20160
BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9
- hex, 20 - 2.5 x 160 mm, class 10.9
2шт.
5
142538A1
SPACER,21mm ID x 25mm OD x 105mm L
chain hook
2шт.
6
832-10420
NUT,M20 x 2.5, Cl 8
NUT, LOCK, M20 x 2.5, Cl 8
2шт.
8
112946A1
EDGE, CUTTING
EDGE cutting, center, bolt-on, 2083 mm, 82 inch bucket
1шт.
9
420-21232
CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 8
BOLT plow, 3/4 NC x 2 inch, grade 8
10шт.
10
429-1012
NUT,3/4"-10, G8
hex, 3/4 inch NC, grade 8
10шт.
276317A1
BUCKET ASSEMBLY, loader, without bucket teeth, 2083 mm, 82 inch wide, with bolt on cutting edge, order from machinery price list, Includes: Ref. 8-10, and P/N 253125A1
1шт.
253125A1
BUCKET
ASSEMBLY, loader, without bucket teeth, 2083 mm, 82 inch wide, order from machinery price list, Includes: Ref. 1, 4-7
1шт.
1
NSS
NOT SOLD SEPARAT
BUCKET loader, Includes: Ref. 2-3
1шт.
2
D129264
BUSHING,40.3mm ID x 50mm OD x 28mm L
bucket ear
8шт.
3
132988A1
CUTTING EDGE
cutting, center, 2083 mm, 82 inch bucket
1шт.
4
828-20160
BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9
- hex, 20 - 2.5 x 160 mm, class 10.9
2шт.
5
142538A1
SPACER,21mm ID x 25mm OD x 105mm L
chain hook
2шт.
6
832-10420
NUT,M20 x 2.5, Cl 8
NUT, LOCK, M20 x 2.5, Cl 8
2шт.
8
112946A1
EDGE, CUTTING
EDGE cutting, center, bolt on, 2083 mm, 82 inch bucket
1шт.
9
420-21232
CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 8
BOLT plow, 3/4 NC x 2 inch, grade 8
10шт.
10
429-1012
NUT,3/4"-10, G8
hex, 3/4 inch NC, grade 8
10шт.
Выбрано товаров: 23
