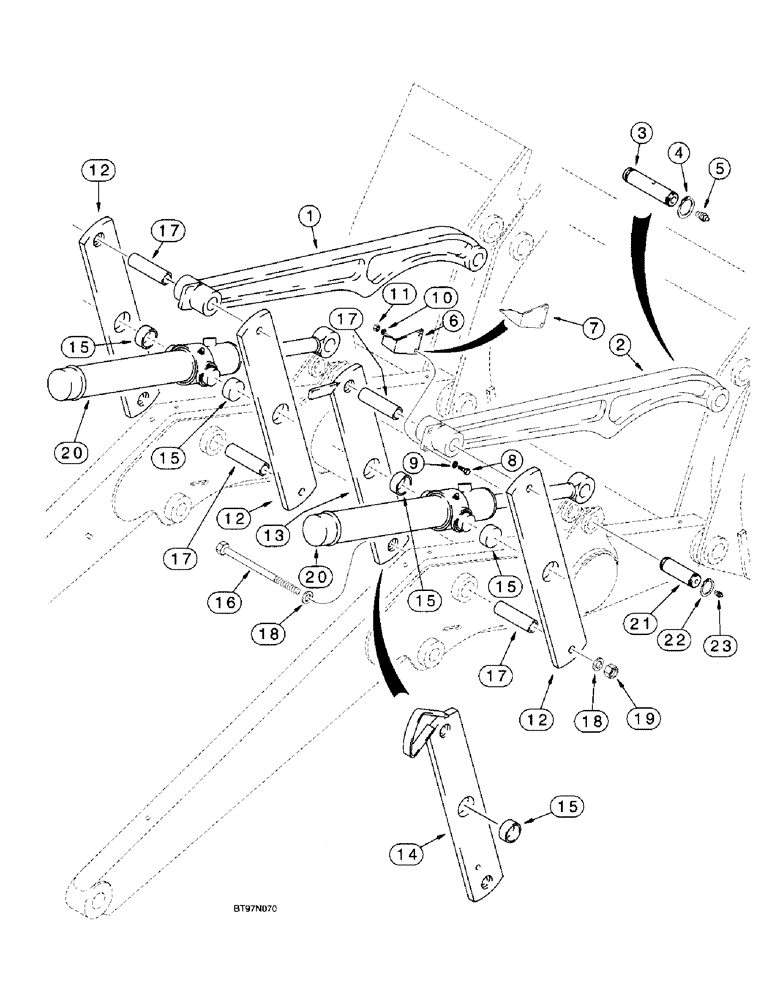

Запчасти Case 580L (9-027) - LOADER FRAME BUCKET LINKS AND BUCKET CYLINDER LINKS (09) - CHASSIS/ATTACHMENTS

1

331621A1

PITMAN

LINK bucket, left hand, without mounting holes for bucket position pointer, used in production, for service order 331620A1 link, Ref. 2; Replaces: 141471A1

1шт.

2

331620A1

PITMAN

LINK bucket, left hand or right hand, with mounting holes for bucket position pointer, Replaces: 141472A1

1-2шт.

3

118901A1

PIN,40mm OD x 180mm L

Bucket links to loader bucket

2шт.

4

800-44040

SNAP RING,M40, Ext

RING heavy external retaining, No. 40, pin retaining

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

6

D121194

POINTER

bucket position, models without clam bucket

1шт.

7

250851A1

POINTER

bucket position, models with clam bucket

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, Full thd, M8 x 1.25 x 30

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

2шт.

12

139180A1

LINK ASSY.

LINK bucket cylinder, outer right hand and inner and outer left hand, Includes: Ref. 15 bushing

3шт.

13

139235A1

PITMAN

LINK bucket cylinder, inner right hand, with extra hole for anti rollback rod, models without clam bucket, Includes: Ref. 15 bushing, see Ref. 14 link for models with clam bucket

1шт.

14

139195A1

PITMAN

LINK bucket cylinder, inner right hand, with extra hole for anti rollback rod, models with clam bucket, Includes: Ref. 15 bushing, see Ref. 13 for models without clam bucket, Includes: Ref. 15

1шт.

15

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

one per each link, Ref 12-14

1шт.

16

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

hex, 20 - 2.5 x 190 mm, class 10.9

4шт.

17

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING spacer, cylinder links

4шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

8шт.

19

829-1420

NUT,M20, Cl 10

4шт.

20

175238A1

CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

ASSEMBLY, loader bucket, 70 mm, 2-3/4 inch ID x 522 mm, 20-9/16 inch stroke, see Figure 8-011

2шт.

21

116339A1

PIN,40mm OD x 125mm L

- bucket cylinder rod end

2шт.

22

800-44040

SNAP RING,M40, Ext

RING heavy external retaining, No. 40, pin retaining

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.
