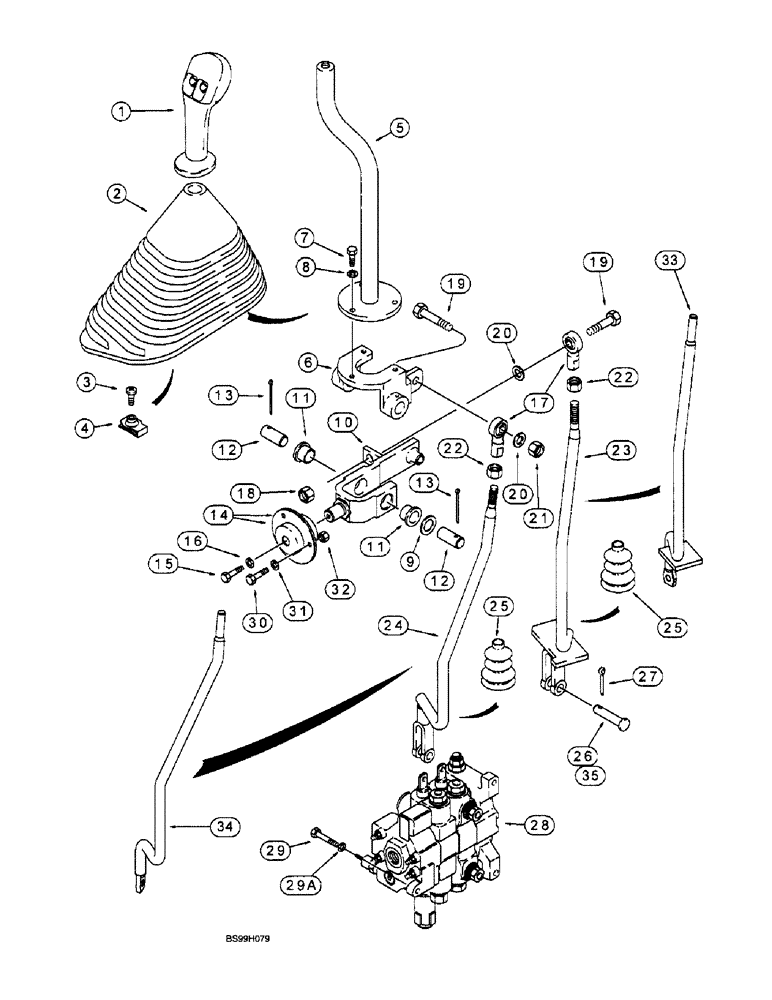

Запчасти Case 580L (9-023) - LOADER LIFT AND BUCKET CONTROLS (09) - CHASSIS/ATTACHMENTS

1

292904A1

HANDLE

control lever, loader, two button, declutch and differential lock switches

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR harness

1шт.

258616A1

LOCK

four pin

1шт.

298176A1

PLUG

cavity

1шт.

345-133

GLUE

ADHESIVE Superbonder 409, 1 ml

1шт.

2

133615A1

BOOT

control lever, models without clam control lever, see Figure 9-024 for boot used on models with clam control lever

1шт.

3

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

5

132661A1

LEVER

control, loader lift and bucket control

1шт.

6

195615A1

SUPPORT

BRACKET control, Serial Range: lever-bellcrank

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

9

495-81184

WASHER,21/32" x 1 1/2" x .030"

flat, 21/32 x 1-1/2 x 1/32 inch, use as a spacer

1шт.

10

176311A1

BELLCRANK

control, loader lift and bucket control, Includes: Ref. 11

1шт.

11

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

flanged, bellcrank

2шт.

12

102761A1

PIN,15.91mm OD x 35mm L

Bellcrank to control lever bracket

2шт.

13

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

14

112380A1

BEARING ASSY

Retainer, Incl Ref 14A

2шт.

14a

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball

11шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

flat, hardened, 9/32 x 7/8 x 3/32 inch

1шт.

17

D136773

BALL JOINT

JOINT ball, 3/8 inch NF

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

425-116

NUT,3/8" - 24, Gr 5

2шт.

23

122359A1

THREADED ROD

ROD bucket control, 302965A1 or 302966A1 valve, if used

1шт.

24

120204A1

THREADED ROD

ROD lift control, 302965A1 or 302966A1 valve, if used

1шт.

25

132931A1

BOOT

at loader valve, 1/2" rod

2шт.

26

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, Special, Used with Ref. 23 and 24 rods, if used

2шт.

27

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY, control, loader, two spool, see Figure 8-70

1шт.

29

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

29a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

30

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, full threads, 6 - 1.0 x 20 mm

3шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

flat, hardened, 9/32 x 7/8 x 3/32 inch

3шт.

32

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

33

301045A1

THREADED ROD,417mm L

ROD bucket control, 328495A1 or 328496A1 valve, if used

1шт.

34

301044A1

THREADED ROD

ROD lift control, 328495A1 or 328496A1 valve, if used

1шт.

35

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, hardened, 5/16 x 15/16 inch, used with Ref. 33 and 34 rods, if used

2шт.
