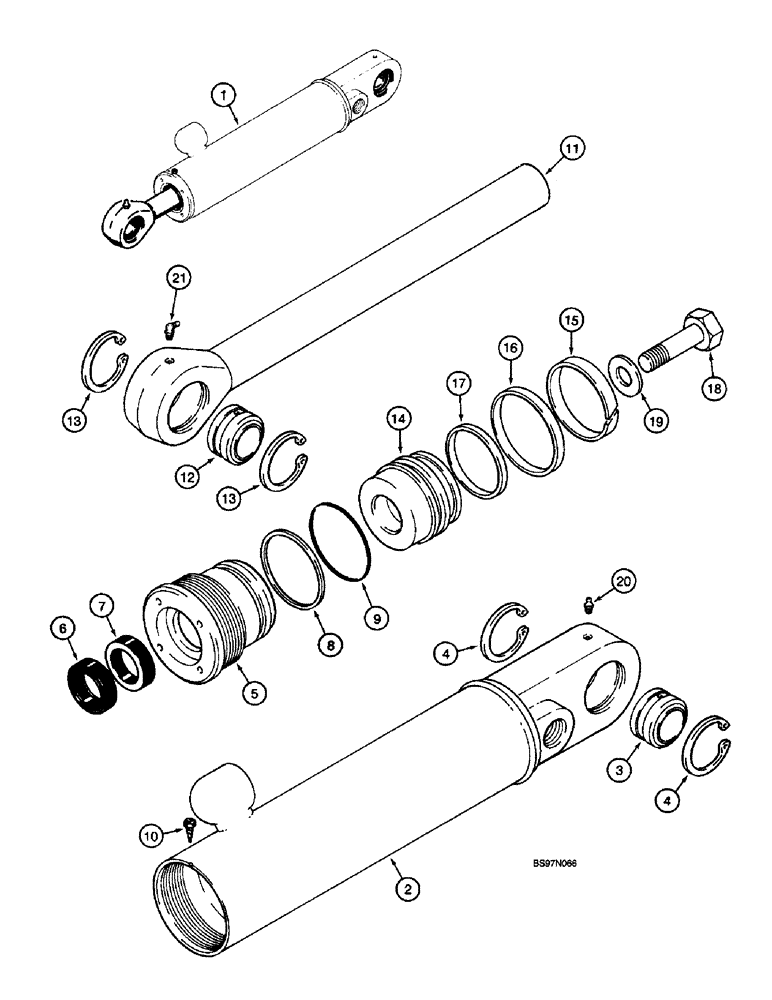

Запчасти Case 580L (8-160) - THREE-POINT HITCH PITCH CYLINDER 570LXT MODELS (08) - HYDRAULICS

1

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

CYLINDER ASSEMBLY, pitch, 64 mm, 2-1/2 ID x 178 mm, 7 inch stroke, Includes: Ref. 2, 10-11, 14-21, and gland assembly

1шт.

138235A1R

REMAN-HYD CYLINDER

580L, 570LXT both (1/98-)

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

138236A1

TUBE,63.5mm Dia

ASSEMBLY, cylinder, internal retaining, Includes: Ref. 3-4

1шт.

3

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING tube

1шт.

4

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, , Bushing 1.625", Int, #162

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 5-9

1шт.

5

118115A2

GLAND

cylinder, Replaces: 118115A1

1шт.

6

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit 183286A1

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod

1шт.

Part of seal kit 183286A1

1шт.

8

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit 183286A1

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of seal kit 183286A1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

138847A1

PISTON ROD

ROD ASSEMBLY, piston, cylinder, 32 mm, 1-1/4 inch diameter, Includes: Ref. 12-13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING piston rod

1шт.

13

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, , Bushing 1.625", Int, #162

1шт.

14

137528A1

PISTON

cylinder

1шт.

15

G100714

RING

wear, piston

1шт.

Part of seal kit 183286A1

1шт.

16

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit 183286A1

1шт.

17

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of seal kit 183286A1

1шт.

18

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Rod eye end 90º, 1/8" NPT x .84" lg

1шт.

183286A1

SEAL KIT

KIT seal, Includes: Ref. 6, 7, 8, 9, 15, 16, 17, and an instruction sheet

1шт.
