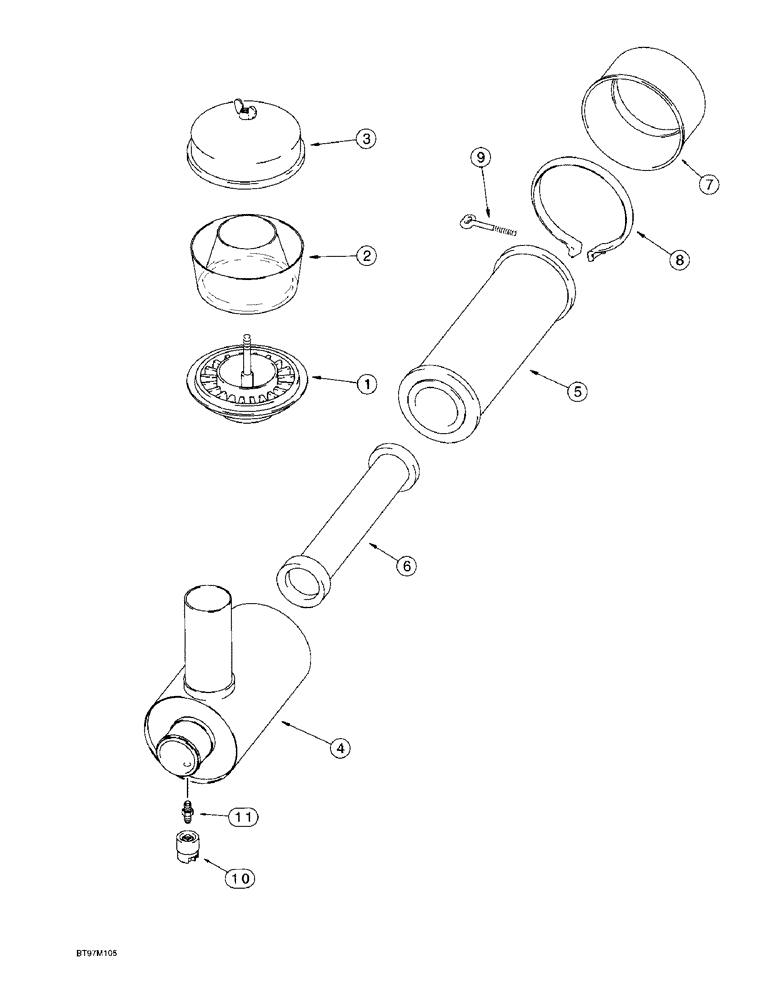

Запчасти Case 580L (2-10) - AIR CLEANER AND PRECLEANER ASSEMBLIES, MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE

193867A1

PRECLEANER

ASSEMBLY, air, Includes Ref. 1-3A

1шт.

1

NSS

NOT SOLD SEPARAT

BODY precleaner assy.

1шт.

2

365413R1

BOWL

precleaner assy.

1шт.

3

365412R91

COVER

precleaner assy.

1шт.

3a

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP adj., 2-9/16 - 3-1/2 inch dia., not shown, 193867A1 precleaner assy.

1шт.

293568A1

AIR CLEANER

CLEANER ASSEMBLY, air, engine, Includes Ref. 10, 11, and P/N 128783A1

1шт.

128783A1

AIR CLEANER

CLEANER ASSEMBLY, air, engine, Includes Ref. 4-9

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING air cleaner assy.

1шт.

5

128781A1

AIR FILTER

ELEMENT primary, air cleaner assy.

1шт.

6

128782A1

AIR FILTER

ELEMENT secondary, air cleaner assy.

1шт.

7

142540A1

FILTER COVER

COVER end, air cleaner assy.

1шт.

8

142539A1

CLAMP,168.28mm

air cleaner assy., housing to end cover

1шт.

9

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

eye, special, air cleaner assy.

1шт.

10

292740A1

RESTRICTION SWITCH

SWITCH air restriction, air cleaner assy.

1шт.

11

D36264

FITTING

ADAPTER air restriction indicator, air cleaner assy.

1шт.
