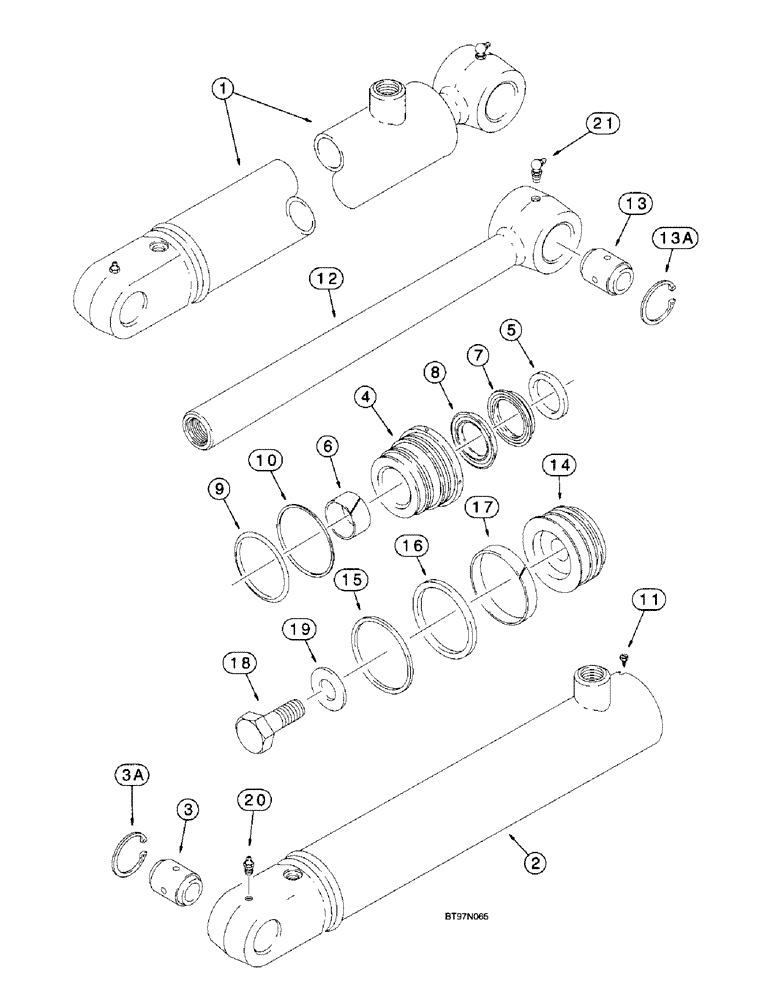

Запчасти Case 580L (8-157A) - THREE-POINT HITCH LIFT CYLINDER, 570 LXT MODELS (08) - HYDRAULICS

1

296715A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 207.2mm Stroke

CYLINDER ASSEMBLY, lift, 76 mm, 3 inch ID x 207 mm, 8-5/32 inch stroke, Includes: Ref. 2, 11-12, 14-21, and gland assembly

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

296716A1

BARREL,426.7 mm Length

TUBE ASSEMBLY, cylinder, Includes: Ref. 4-6, 9-10, and P/N 1542874C1

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING tube

1шт.

3a

103-21200

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder

1шт.

4

297280A1

GLAND

cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit 1543256C1

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center, Gland

1шт.

Part of seal kit 1543256C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Incl Ref 7-8

1шт.

Part of seal kit 1543256C1

1шт.

7

1542997C1

SEALING RING

rod, NSS

1шт.

8

1542996C1

SEAL

buffer, NSS

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit 1543256C1

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit 1543256C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

296720A1

PISTON ROD

ROD ASSEMBLY, piston, 38 mm, 1-1/2 inch diameter, Includes: Ref. 13, 13A

1шт.

13

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING piston rod

1шт.

13a

103-21200

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

14

296723A1

JACK PISTON

PISTON cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of seal kit 1543256C1

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston

1шт.

Part of seal kit 1543256C1

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit 1543256C1

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Rod eye end 90º, 1/8" NPT x .84" lg

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Incl Ref 5, 6, 9, 10, 15, 16, 17 and P/N 1542874C1 and an instruction sheet

1шт.
