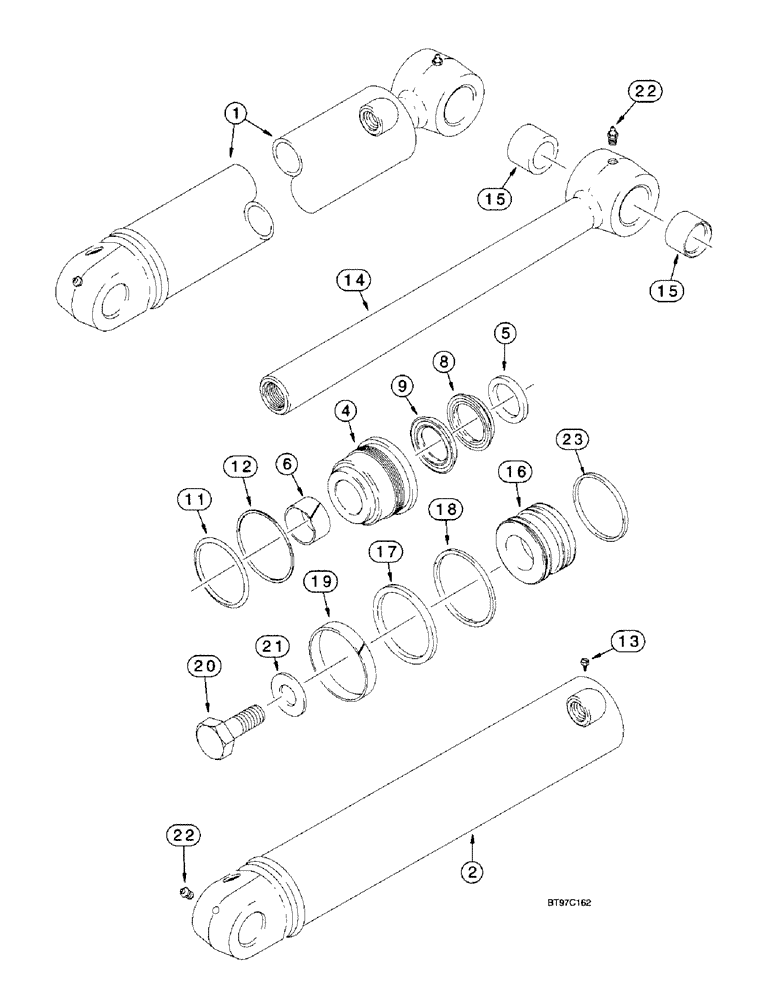

Запчасти Case 580L (8-150) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

233114A1

CYLINDER ASSY.

CYLINDER ASSEMBLY, dipper, 108 mm, 4-1/4 inch ID x 686 mm, 27 inch stroke, no longer available, order 233114A2 cylinder

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

233114A2R

REMAN-HYD CYLINDER

Reman For New PN 233114A1

1шт.

1

233114A2C

CORE-HYD CYLINDER

Return Number

1шт.

1

233114A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 685.8mm Stroke

CYINDER ASSEMBLY, dipper, 108 mm, 4-1/4 inch ID x 686 mm, 27 inch stroke, Includes: Ref. 2, 12, 14, 16-23, and gland assembly

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

233114A2R

REMAN-HYD CYLINDER

Reman For New PN 233114A2

1шт.

1

233114A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

297952A1

BARREL,107.82 mm ID, 936 mm Length

TUBE cylinder, Replaces: 233000A1 tube

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 4-6, 11-12, and P/N 1542877C1

1шт.

4

234141A2

CYLINDER END CAP

GLAND cylinder, Replaces: 234141A1 gland

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod

1шт.

Part of seal kit 234844A1

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

Center

1шт.

Part of seal kit 234844A1

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT seal, NSS, order 234844A1 kit below, Includes: Ref. 8-9

1шт.

Part of seal kit 234844A1

1шт.

8

1542929C1

SEAL,2.778mm OD

rod, NSS, order 234844A1 kit below

1шт.

9

1542928C1

SEAL,2.275" ID

buffer, NSS, order 234844A1 kit below

1шт.

11

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Gland -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

Part of seal kit 234844A1

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit 234844A1

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

175778A1

PISTON ROD

ROD ASSEMBLY, piston, cylinder, 57 mm, 2-1/4 inch diameter, Includes: Ref. 15

1шт.

15

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long

2шт.

16

233110A2

PISTON,107.29mm Bore, 57.2mm Rod, 68.15mm W

cylinder, Replaces: 233110A1 piston

1шт.

17

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit 234844A1

1шт.

18

G110529

RING

backup, piston seal

1шт.

Part of seal kit 234844A1

1шт.

19

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Part of seal kit 234844A1

1шт.

20

28-2256

BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8

hex, 1-3/8 NF x 3-1/2 inch, grade 8

1шт.

21

G32559

WASHER

flat, special, 1-3/8 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

23

233104A1

RING,103.36mm ID, Ext

piston, cast iron

1шт.

Part of seal kit 234844A1

1шт.

234844A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 11, 12, 17, 18, 19, 23, and P/N 1542877C1, also a seal and wiper not used in this application, and an instruction sheet

1шт.
