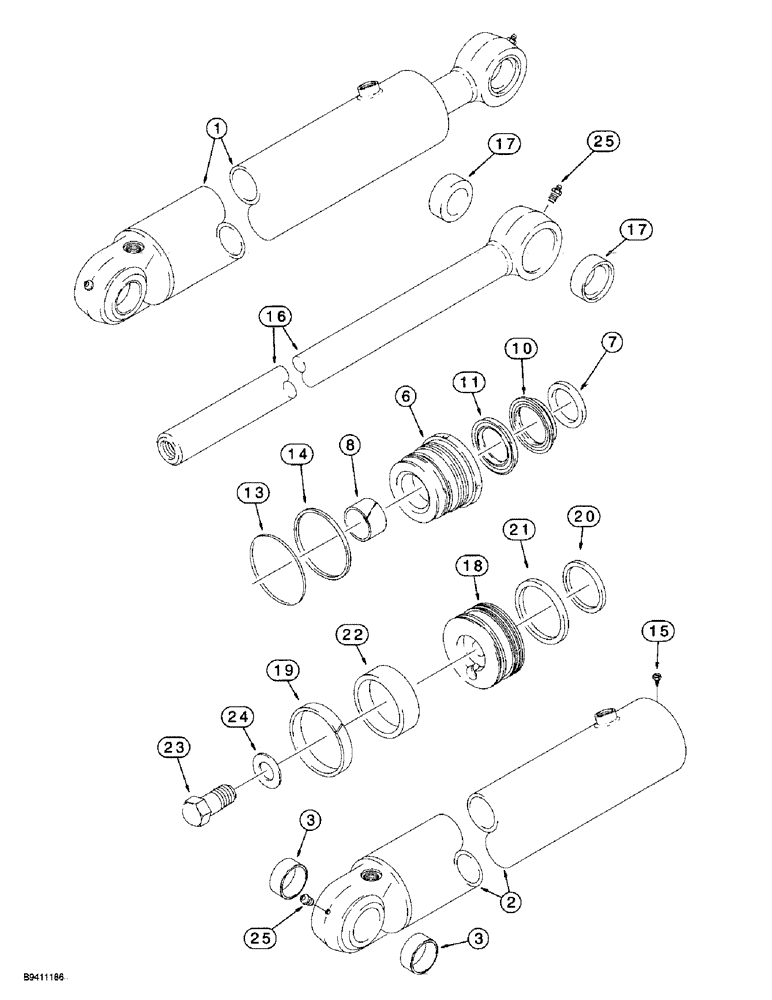

Запчасти Case 580L (8-148) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

189653A1

CYLINDER ASSY.

CYLINDER ASSEMBLY, boom, 114 mm, 4-1/2 inch Id x 981 mm, 38-5/8 inch stroke, Includes: Ref. 2, 15, 16, 18-25, and gland assembly

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

189653A2R

REMAN-HYD CYLINDER

Reman for New PN 189653A1

1шт.

1

189653A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

189654A1

TUBE,114.17 mm OD, 1241.2 mm Length

cylinder, Includes: Ref. 3

1шт.

3

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

tube, 50 x 34 mm long

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 6-8, 13-14, and P/N 1542877C1

1шт.

6

127862A2

CYLINDER END CAP

GLAND cylinder, has identification groove on outer lip, Replaces: 127862A1

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod

1шт.

Part of seal kit 182218A1

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

Center

1шт.

Part of seal kit 182218A1

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT seal, NSS, order 182218A1 kit below, Includes: Ref. 10-11

1шт.

Part of seal kit 182218A1

1шт.

10

1542929C1

SEAL,2.778mm OD

rod, NSS, order 182218A1 kit below

1шт.

11

1542928C1

SEAL,2.275" ID

buffer, NSS, order 182218A1 kit below

1шт.

13

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

gland 4-1/4 ID x 1/8 inch wide

1шт.

Part of seal kit 182218A1

1шт.

14

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

backup, gland O-ring

1шт.

Part of seal kit 182218A1

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

16

182109A1

PISTON ROD

ROD piston, 57 mm, 2-1/4 inch diameter, Includes: Ref. 17

1шт.

17

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long, rod

2шт.

18

189657A1

JACK PISTON

PISTON cylinder

1шт.

19

182116A1

RING,Locking, 108.64mm ID x 118.3mm OD x 6.33mm Thk

cast iron

1шт.

Part of seal kit 182218A1

1шт.

20

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING backup, piston seal

1шт.

Part of seal kit 182218A1

1шт.

21

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

piston

2шт.

Part of seal kit 182218A1

1шт.

22

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING wear, piston

1шт.

Part of seal kit 182218A1

1шт.

23

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

24

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special, 1-1/4 inch

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

182218A1

SEAL KIT

KIT seal, Includes: Ref. 7, 8, 13, 14, 19, 20, 21, 22, and P/N 1542877C1 and an instruction sheet

1шт.
