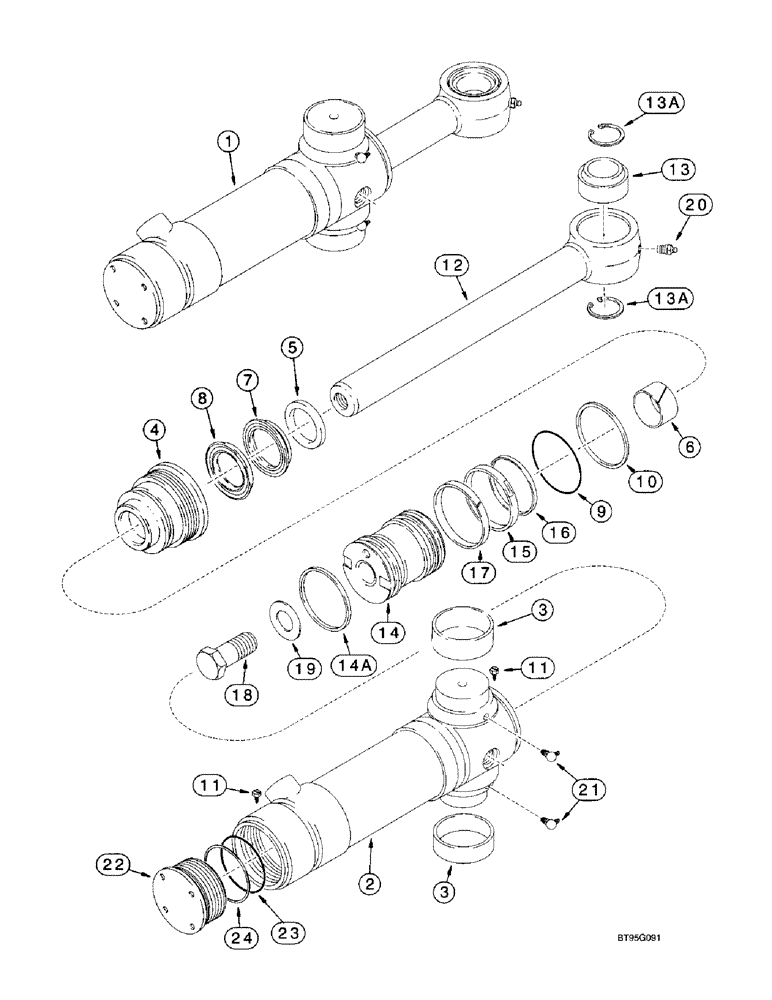

Запчасти Case 580L (8-146) - BACKHOE SWING CYLINDER (08) - HYDRAULICS

1

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

CYLINDER ASSEMBLY, swing, 95 mm, 3-3/4 inch ID x 292 mm, 11-1/2 inch stroke, Includes: Ref. 2, 11, 12, 14-21, and P/N 188035A1 and gland assembly

1шт.

188027A2R

REMAN-HYD CYLINDER

570LXT, 580L All (1/98-)

1шт.

188027A2C

CORE-HYD CYLINDER

Return Number

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

220165A2

TUBE

ASSEMBLY, cylinder, 188027A2 cylinder, Includes: 18028A2 tube, 188035A1 end cap assembly, Ref. 22-24 and one of 276-2446 screw, Ref. 11, if used, not available as an assembly, order componenets, Includes: Ref. 2

1шт.

2

188028A2

TUBE,527.7 mm Length

ASSEMBLY, cylinder, 188027A2 cylinder, does not include 188035A1 end cap assembly, Ref. 22-24 or one of 276-2446 screw, Ref. 11, if used, Includes: Ref. 3

1шт.

3

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

BUSHING tube, external

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 4-6, 9-10, and P/N 1542876C1

1шт.

4

188032A2

GLAND,95.3mm Bore, 50.8mm Rod, 82.4mm W

cylinder, Replaces: 188032A1

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit 191747A1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of seal kit 191747A1

1шт.

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Order 122535A1 kit below, Incl Ref 7-8

1шт.

Part of seal kit 191747A1

1шт.

7

1543001C1

SEAL

rod, NSS, order 122535A1 kit below

1шт.

8

1543000C1

SEAL

buffer, NSS, order 122535A1 kit below

1шт.

9

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

Gland -237, 70 Duro, 3.359" ID x .139" Thk

1шт.

Part of seal kit 191747A1

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup

1шт.

Part of seal kit 191747A1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

177518A1

PISTON ROD

ROD ASSEMBLY, piston, 51 mm, 2 inch diameter, Includes: Ref. 13-13A

1шт.

13

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

BUSHING piston rod, self aligning

1шт.

13a

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

1шт.

14

188034A2

PISTON

cylinder, Replaces: 188034A1 piston

1шт.

14a

191252A1

SEALING RING,85.9mm ID x 95.3mm OD x 4.7mm Thk

RING cast iron

1шт.

Part of seal kit 191747A1

1шт.

15

1340764C1

SEAL,Locking, 92.13mm ID x 96.85mm OD x 6.96mm Thk

SEAL piston

1шт.

Part of seal kit 191747A1

1шт.

16

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

backup, piston seal

1шт.

Part of seal kit 191747A1

1шт.

17

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

RING wear, piston

1шт.

Part of seal kit 191747A1

1шт.

18

28-1664

BOLT,Hex, 1" - 14 x 4", Gr 8

hex, 1-14 x 4 inch, grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special, hardened, 1 inch

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

188035A1

CYLINDER END CAP

CAP ASSEMBLY, end, Includes: Ref. 22-24

1шт.

22

188036A1

CAP,Ductile Iron

end

1шт.

23

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8 inch wide

1шт.

Part of seal kit 191747A1

1шт.

24

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

Part of seal kit 191747A1

1шт.

191747A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 9, 10, 14A, 15, 16, 17, 23, 24, and P/N 1542876C1 and an instruction sheet

1шт.
