Запчасти Case 580L (8-140) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

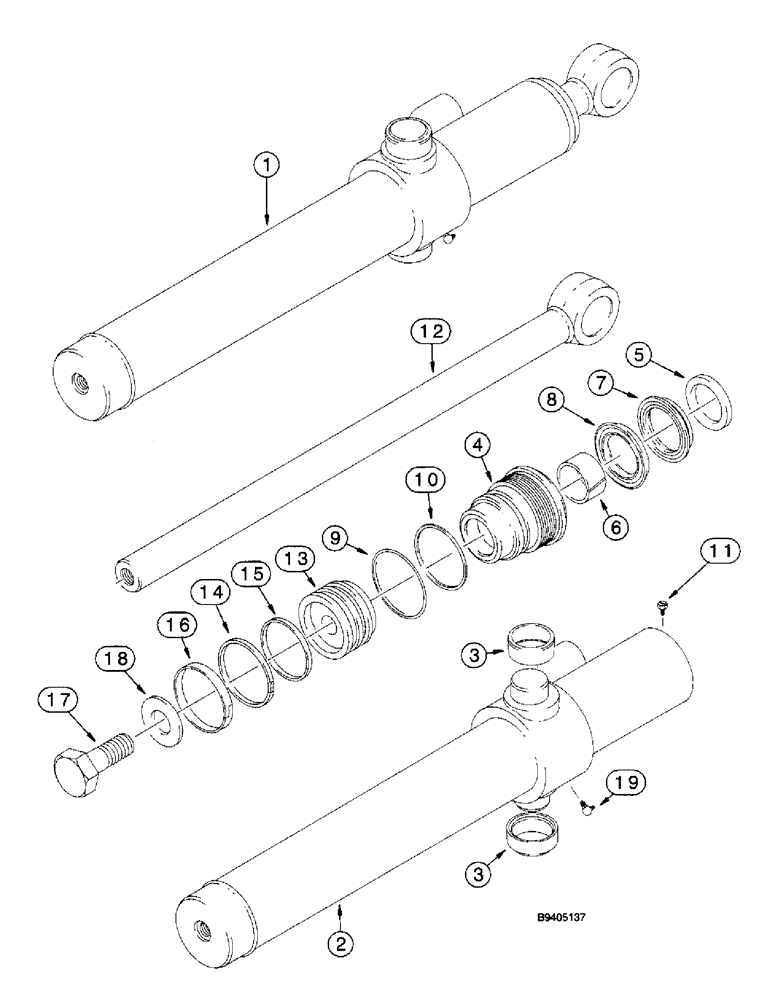

Схема запчастей Case 580L - (8-140) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS
2
11
3
17
3
1
16
13
6
7
12
15
19
9
14
4
10
8
5
18

Артикул

Название

Примечание

Количество

1

175238A1

CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

ASSEMBLY, bucket, left hand and right hand, 70 mm, 2-3/4 inch ID x 522 mm, 20-9/16 inch stroke, Includes: Ref. 2, 10-19, and gland assembly

1шт.

2

175239A1

TUBE,69.85 mm ID, 76.99 mm OD

ASSEMBLY, cylinder, Includes: Ref. 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 4-6, 9-10, and P/N 1542874C1

1шт.

4

175247A2

GLAND

cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit 175251A1

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center, Gland

1шт.

Part of seal kit 175251A1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 175251A1 kit below, Incl Ref 7-8

1шт.

Part of seal kit 175251A1

1шт.

7

1542997C1

SEALING RING

rod, NSS, order 175251A1 kit below

1шт.

8

1542996C1

SEAL

buffer, NSS, order 175251A1 kit below

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit 175251A1

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit 175251A1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

110307A1

PISTON ROD

ROD piston, without bushings in eye, 38 mm, 1-1/2 inch diameter

1шт.

13

175250A1

PISTON,69.28mm Bore, 38.1mm Rod, 50.7mm W

cylinder

1шт.

14

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

piston, expandable, outer

1шт.

Part of seal kit 175251A1

1шт.

15

G104439

RING

seal, piston seal

1шт.

Part of seal kit 175251A1

1шт.

16

G105187

RING

wear, piston, piston

1шт.

Part of seal kit 175251A1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

175251A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 9, 10, 14, 15, 16, and P/N 1542874C1 and an instruction sheet

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
