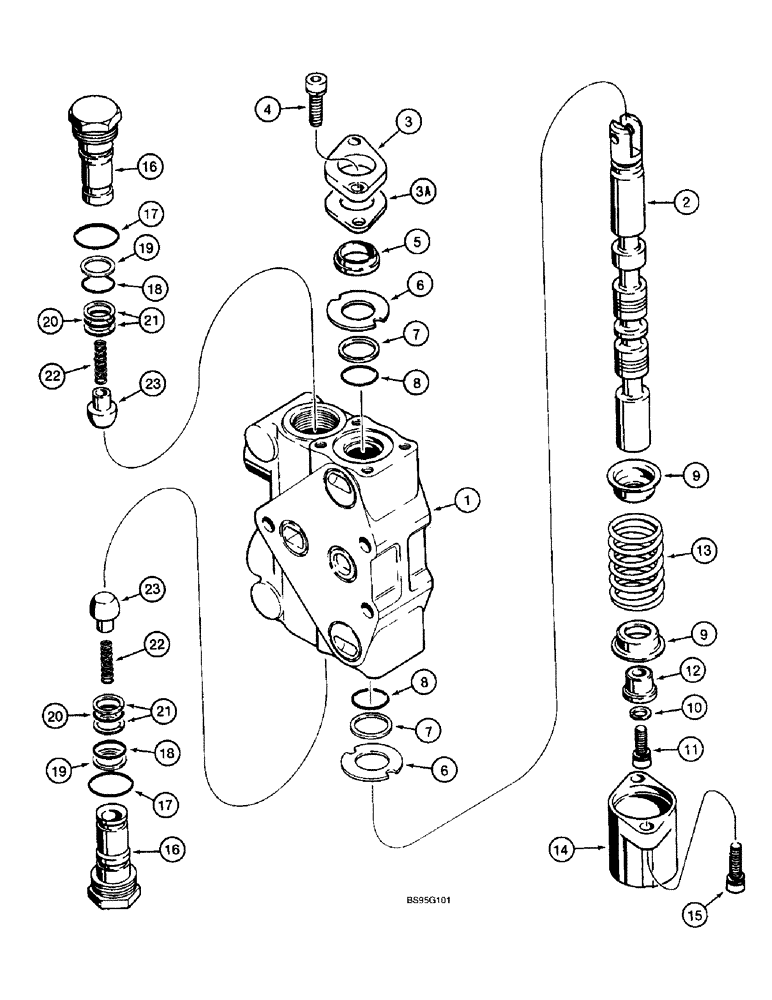

Запчасти Case 580L (8-128) - THREE-POINT HITCH CONTROL VALVE, PITCH, TILT AND IMPLEMENT SECTIONS (08) - HYDRAULICS

224454A1

HYD VALVE SECTION

SECTION ASSEMBLY hitch pitch, tilt and implement, Includes: Ref. 1-6, and P/N's N8880, S300253, N8884

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

3

N8194

LARGE PLATE

PLATE retainer, seal, outer

1шт.

3a

N7030

LARGE PLATE

PLATE retainer, seal, inner

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

slotted, with split lockwasher, 1/4 NC x 7/8 inch

2шт.

5

N7029

SCRAPER

WIPER spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER seal

2шт.

N8880

SEAL

KIT seal, spool, Includes: Ref. 7-8

1шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING backup, spool O-ring

2шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL lip

2шт.

S300253

SET OF PARTS

CAP ASSEMBLY, valve spool positioner, Includes: Ref. 9-15

1шт.

9

H267591

SPRING SEAT

SEAT spring

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

BOLT hex socket, 1/4 NC x 1-3/4 inch

1шт.

12

N14593

STEP BOLT

BOLT special, collar

1шт.

13

D87306

SPRING

centering, spool

1шт.

14

S300258

CAP

valve spool

1шт.

15

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

slotted, with split lockwasher, 1/4 NC x 7/8 inch

2шт.

N8884

VALVE POPPET

VALVE ASSEMBLY, load check, Includes: Ref. 16-23

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup

1шт.

20

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

21

D88725

BACK-UP RING

RING backup

2шт.

22

H268730

SPRING

poppet

1шт.

23

D28576

VALVE POPPET

POPPET load check

1шт.
