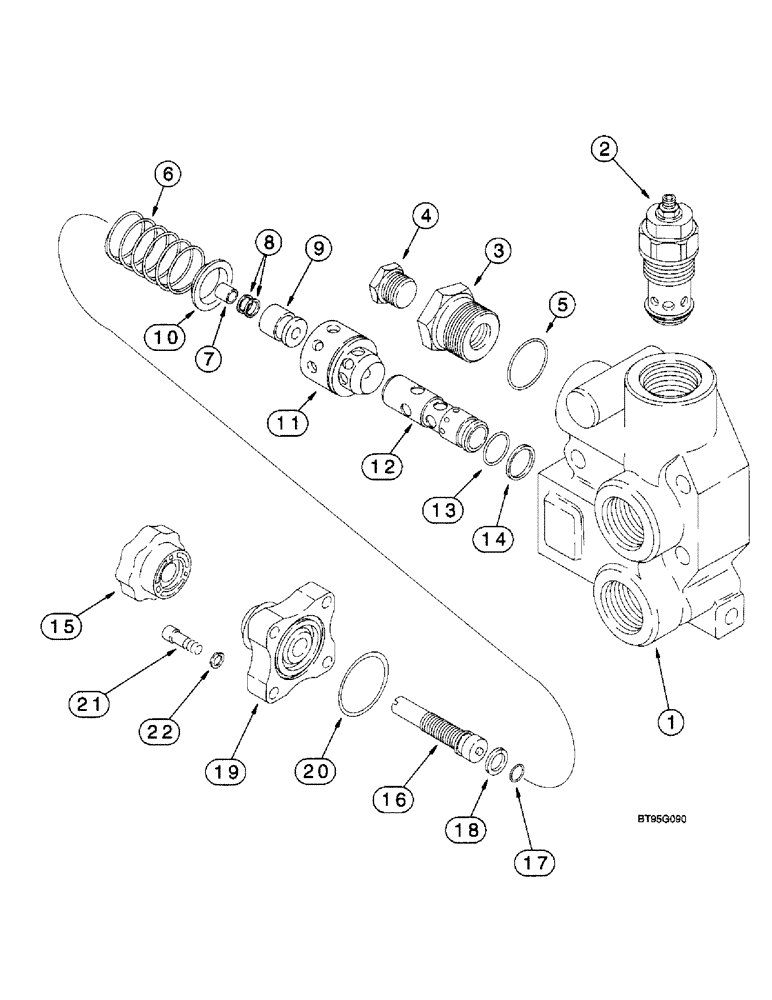

Запчасти Case 580L (8-122) - THREE-POINT HITCH CONTROL VALVE INLET/OUTLET SECTION (08) - HYDRAULICS

224452A1

ELEMENT

SECTION ASSEMBLY inlet, outlet, flow control, Includes: Ref. 1, 2, and P/N's N7109, N7110, N7111

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING inlet/outlet section

1шт.

2

N8191

VALVE

ASSEMBLY, main relief, parts list Figure 9-3

1шт.

N7109

PLUG

ASSEMBLY, section ports, Includes: Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG section port

1шт.

4

221-841

PLUG

hex socket, 1/4 inch PT

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

N7110

CONTROL

ASSEMBLY, flow, Includes: Ref. 6-14

1шт.

6

L35302

SPRING

flow control

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE piston

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM sleeve

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON flow control

1шт.

10

L35301

CUPEL

COLLAR metering sleeve

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE metering

1шт.

12

NSS

NOT SOLD SEPARAT

GUIDE sleeve, flow control

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup

1шт.

N7111

GOVERNOR

REGULATOR ASSEMBLY, flow control, Includes: Ref. 15-22

1шт.

15

D54188

KNOB

regulator assembly

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup

1шт.

19

NSS

NOT SOLD SEPARAT

COVER regulator

1шт.

20

A16755

O-RING

cover

1шт.

21

61-32514

HEX SOC SCREW,1/4"-20 x 7/8"

BOLT hex socket, 1/4 NC x 7/8 inch

4шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
