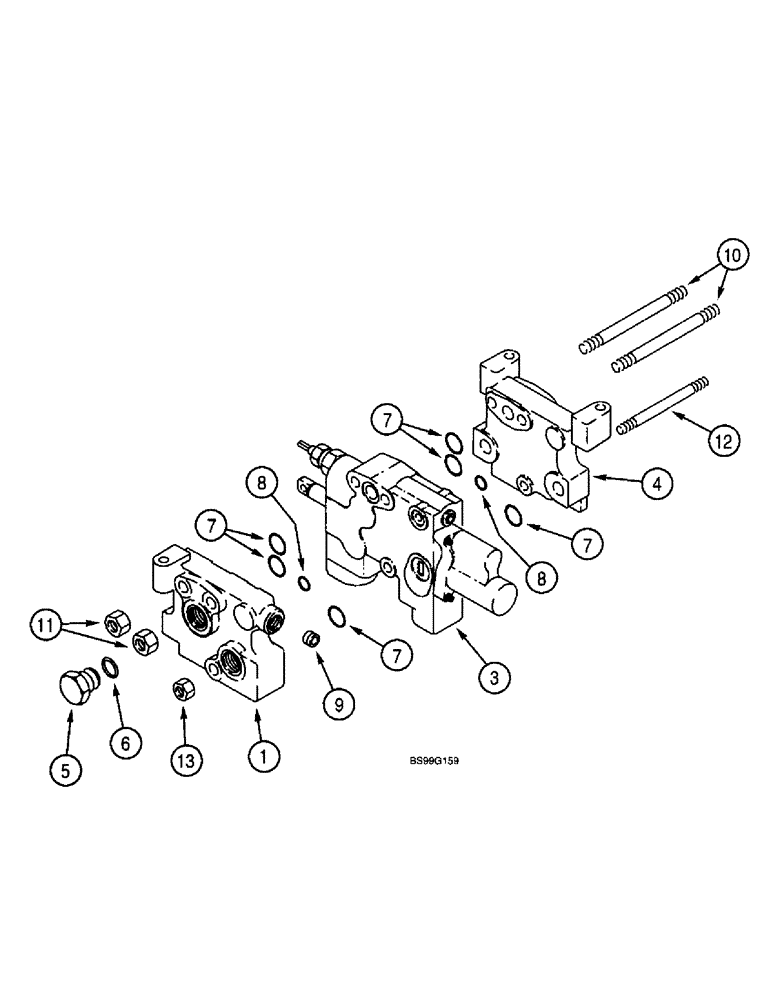

Запчасти Case 580L (8-114) - AUXILIARY VALVE, HAND HELD HYDRAULICS, ONE SPOOL (08) - HYDRAULICS

121741A1

VALVE, CONTROL

VALVE ASSEMBLY auxiliary, for hand held hydraulics, Includes: Ref. 1-5, 7-13

1шт.

1

121638A2

ELEMENT

MANIFOLD cover, inlet, outlet

1шт.

3

131197A1

HYD VALVE SECTION

SECTION ASSEMBLY, hand held auxiliary hydraulics, parts list Figure 8-116

1шт.

4

121639A2

ELEMENT

MANIFOLD cover, power beyond

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Included w/ Seal Kit, P/N 1346105C2 -117, 90 Duro, .799" ID x .103" Thk

6шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

Section ports, small -112, 90 Duro, .487" ID x .103" Thk

2шт.

9

137039A1

PLUG

hex socket

1шт.

10

1346129C3

TRUSS ROD

STUD tie

2шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

4шт.

12

1346128C3

TRUSS ROD

STUD tie

1шт.

13

304951A1

NUT

hex, 10 mm - 1.5

2шт.
