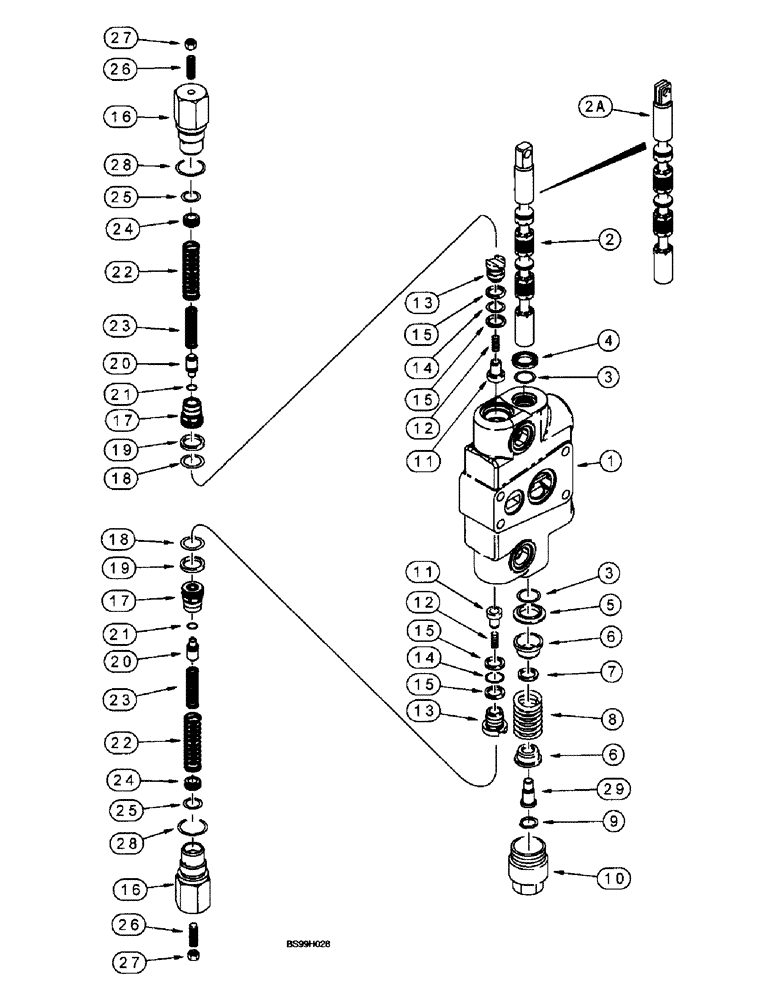

Запчасти Case 580L (8-112) - BACKHOE CONTROL VALVE, OPTIONS, AUXILIARY HYDRAULICS SECTION (08) - HYDRAULICS

294198A1

HYD VALVE SECTION

SECTION ASSEMBLY, options, auxiliary hydraulics, with circuit relief valves, spool eye no color coded, with male spool eye, if used

1шт.

333417A1

HYD VALVE SECTION

SECTION ASSEMBLY, options, auxiliary hydraulics, with cirucit relief valves, spool eye color coded yellow, with female clevis spool eye, if used, Includes: Ref. 1-10, 29, and P/N's 1346219C3, G109391

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL 294198A1 bucket section

1шт.

2a

NSS

NOT SOLD SEPARAT

Included w/ SEAL KIT, P/N 1346105C2

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included w/ SEAL KIT, 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool, 1/16 inch thick, 294198A1 sectin, if used

1шт.

8

1994596C1

SPRING

centering, purple, spool, 2-15/16 inch free length

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end, if used #47, Ext

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346219C3

VALVE, CHECK

VALVE ASSEMBLY, load check, hollow poppet pin, Includes: Ref. 11-15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

13

1343708C1

PLUG

load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, options section, used in production, order G109449 kit for service, Includes: Ref. 16-28

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

Included w/ SERVICE KIT, P/N G109449

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING 1/2 ID x 1/16 inch wide

1шт.

26

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, oval point, 5-16 NF x 1 inch

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

29

G106409

SEAT

SCREW spool end, use with 345-49 Loctite

1шт.

1346105C2

SEAL KIT

KIT seal, Includes: Refs. 3, 4, 14, 15, 18, 19, and 28, plus additional O-rings not required for this application

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109449

KIT

service, for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve, Ref. 16-28, which is the same as G109391 except with a different pressure setting, Includes: Ref. G109391

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
