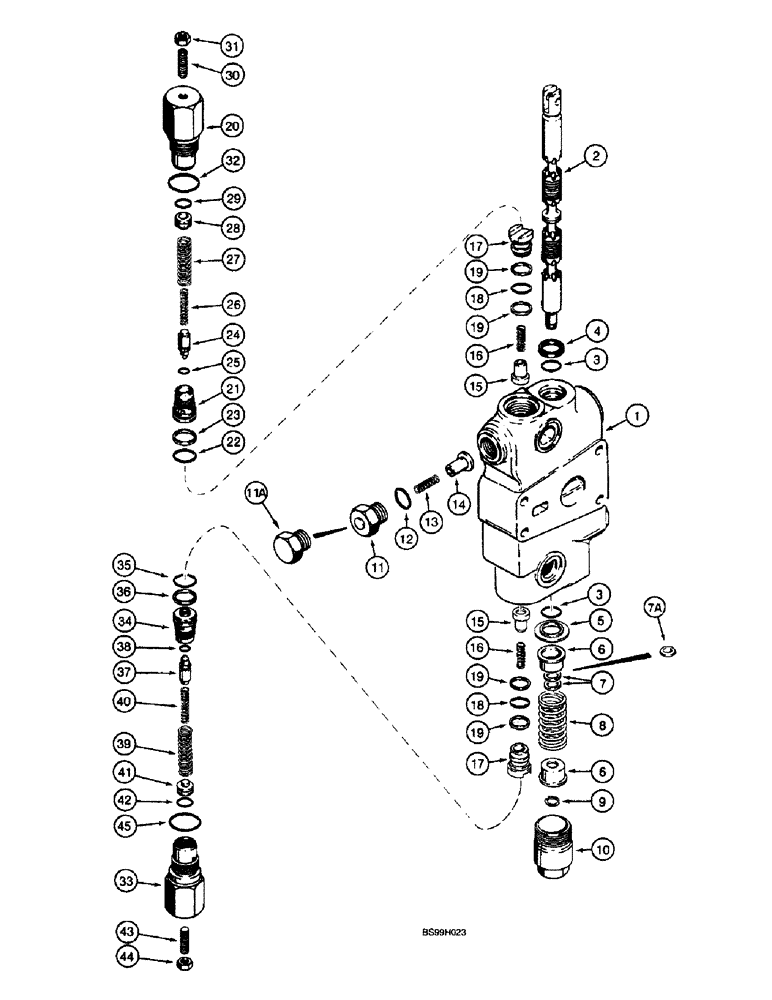

Запчасти Case 580L (8-102) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

144321A5

HYD VALVE SECTION

SECTION ASSEMBLY, boom, with circuit relief valves and anticavitatin valve, without color coded spool eye, if used

1шт.

144321A6

HYD VALVE SECTION

SECTION ASSEMBLY, boom, with circuit relief valves and anticavitation valve, with green color coded spool eye, if used, Includes: Ref. 1-10, and P/N's 1346221C3, 1346219C3, G109391, 1346023C1

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING boom section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL boom section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool, 1/16 inch thick, 144321A5 section only

2шт.

7a

332753A1

SPACER

spool, 1/8 inch thick, 144321A6 section only

2шт.

8

1994596C1

SPRING

centering, purple, spool, 2-15/16 inch free length

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end #47, Ext

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346221C3

VALVE

ASSEMBLY, anticavitation, order Ref. 11-14, Replaces: 1346221C2, Includes: Ref. 11-14

1шт.

11

G34937

PLUG

1346221C2 anticavitation valve, raised head

1шт.

11a

332473A1

PLUG,Hex, 7/8" - 14

1346221C3 anticavitation valve, smooth head

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

1шт.

1346219C3

VALVE, CHECK

VALVE ASSEMBLY, load check, hollow poppet pin, Includes: Ref. 15-19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

17

1343708C1

PLUG

load check

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, upper, boom section, used in production, order G109449 kit for service, Includes: Ref. 20-27

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

Included w/ SERVICE KIT, P/N G109449

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, upper, boom section, used in production, order G109449 kit for service, continued from previous page, Includes: Ref. 28-32

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

Included w/ SERVICE KIT, P/N G109449

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, oval point, 5/16 NF x 1 inch

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

1346023C1

VALVE

ASSEMBLY, circuit relief, lower, boom section, used in production, order G110077 kit for service, Includes: Ref. 33-45

1шт.

Included w/ G110077

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

36

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

43

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW set, hex socket headless, oval point, 5/16 NF x 1-1/4 inch

1шт.

44

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109449

KIT

service, for G109391 circuit relief valve, kit includes an instructin sheet and G109447 circuit relief valve, Ref. 20-32, which is the same as G109391 except with a different pressure setting, Includes: Ref. G109391

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G110077

KIT

service, for 1346023C1 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve, Ref. 33-45, which is the same as 1346023C1 except with a different pressure setting, Includes: Ref. 1346023C1

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

1346105C2

SEAL KIT

KIT seal, Includes: Refs. 3, 4, 12, 18, 19, 22, 23, 32, 35, and 36, plus additional O-rings not required for this application

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
