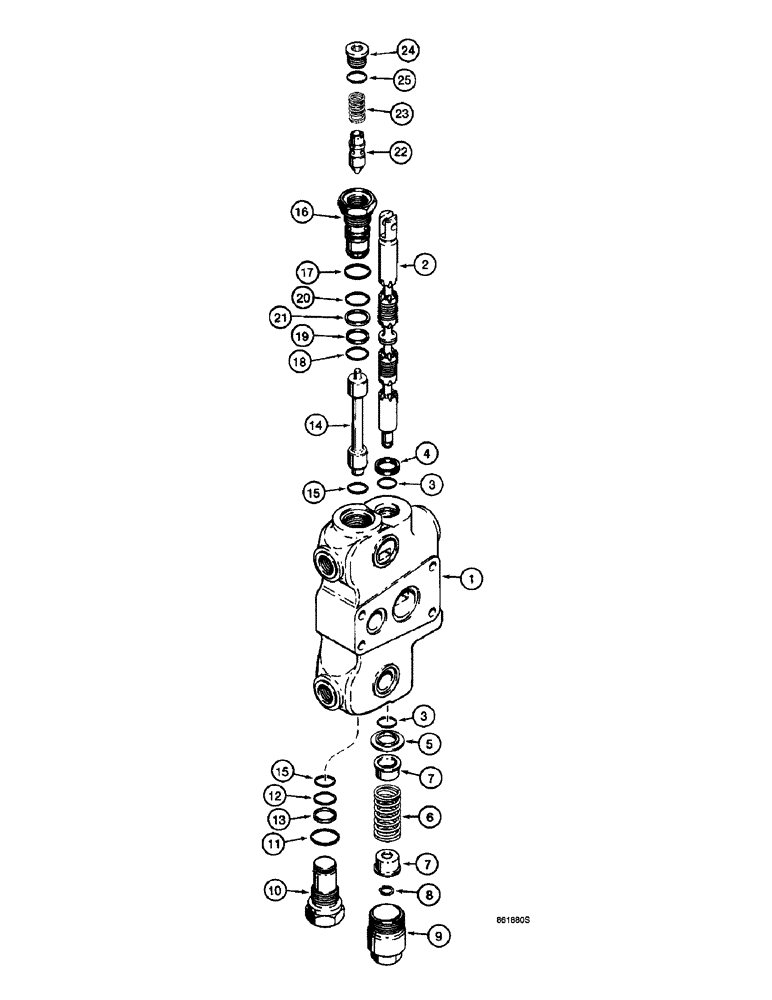

Запчасти Case 580L (8-100) - BACKHOE CONTROL VALVE, LEFT-HAND AND RIGHT-HAND STABILIZER SECTIONS (08) - HYDRAULICS

253989A2

HYD VALVE SECTION

SECTION ASSEMBLY, left hand and right hand stabilizer, with lock check, if used

2шт.

253989A3

VALVE SECTION

SECTION ASSEMBLY, left hand and right hand stabilizer, with lock check, if used, Includes: Ref. 1-9, 14-15, and P/N's G33122, G109627

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING left hand and right hand stabilizer sections

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL left hand and right hand stabilizer sections

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G34463

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end #47, Ext

1шт.

9

G33080

CAP

centering spring, spool end

1шт.

G33122

PLUG,ORB

ASSEMBLY, relief, Includes: Ref. 10-13

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG relief

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

13

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

14

1986754C1

SPOOL

shuttle, lock check

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Shuttle spool -018, 90 Duro, .739" ID x .070" Thk

2шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

G109627

PLUG

ASSEMBLY, lock check, Includes: Ref. 16-25

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT lock check body

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Seat plug end

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat lock check end -018, 90 Duro, .739" ID x .070" Thk

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

20

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Seat, center -019, 90 Duro, .801" ID x .070" Thk

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

21

G110468

RING

backup, center O-ring

1шт.

Included w/ SEAL KIT, P/N 134610C1

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET lock check

1шт.

23

G109630

SPRING

lock check

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1346106C1

SEAL KIT

KIT seal, Includes: Refs. 3, 4, 11, 12, 15, 17, 18, 19, 20, and 21, plus additional O-rings not required for this application

1шт.
