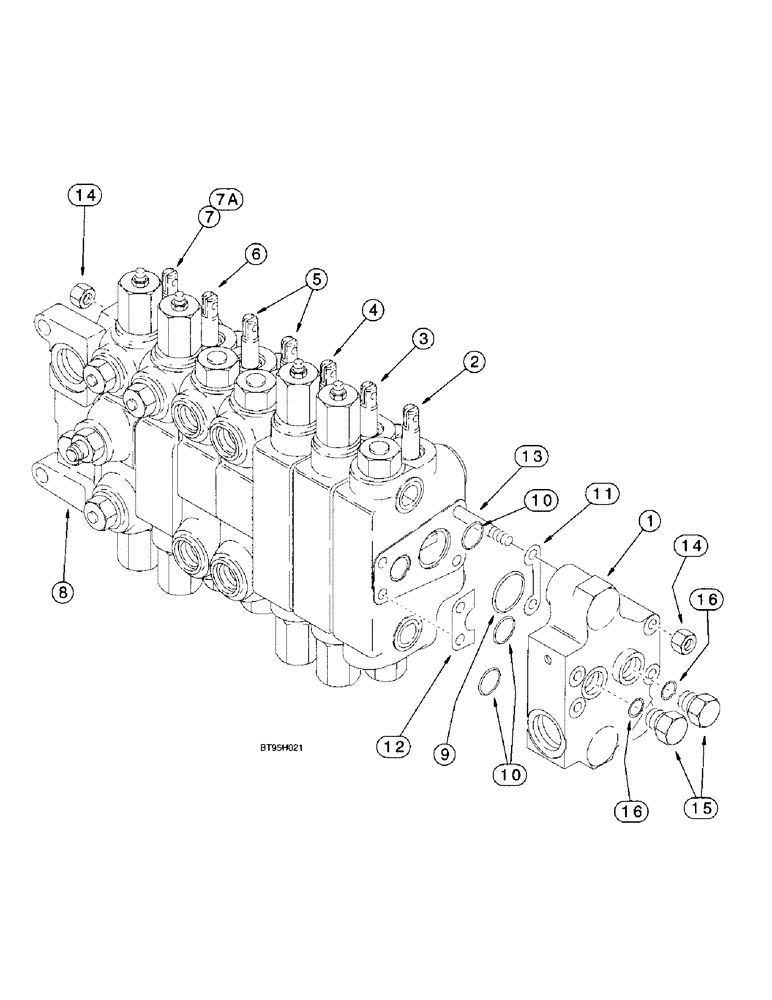

Запчасти Case 580L (8-091A) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER WITHOUT AUXILIARY HYDRAULICS (08) - HYDRAULICS

144332A5

VALVE, CONTROL

VALVE ASSEMBLY, backhoe control, 7 spool, foot swing, boom and swing section spool eyes are color coded green and orange, respectively, with check valve in outlet section, if used

1шт.

144331A5

VALVE, CONTROL

VALVE ASSEMBLY, backhoe control, 7 spool, hand swing, boom and swing section spool eyes are color coded green and orange, respectively, with check valve in outlet section, if used, Includes: Ref. 1-15

1шт.

1

327867A1

HYD VALVE SECTION

SECTION ASSEMBLY, outlet, with hex plug, with check valve, parts list Figure 8-94

1шт.

2

144324A4

HYD VALVE SECTION

SECTION ASSEMBLY, dipper, extension, parts list Figure 8-110

1шт.

3

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY, bucket, part list Figure 8-96

1шт.

4

136610A5

HYD VALVE SECTION

SECTION ASSEMBLY, dipper, part list Figure 8-98

1шт.

5

253989A3

VALVE SECTION

SECTION ASSEMBLY, stabilizer, left hand and right hand,, part list Figure 8-100

2шт.

6

144321A6

HYD VALVE SECTION

SECTION ASSEMBLY, boom, part list Figure 8-102 and 8-104

1шт.

7

144681A6

HYD VALVE SECTION

SECTION ASSEMBLY, swing, foot swing control valve, part list Figure 8-106 and 8-108

1шт.

7a

144682A6

HYD VALVE SECTION

SECTION ASSEMBLY, swing, hand swing control valve, part list Figure 8-106 and 8-108

1шт.

8

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY, inlet, parts list Figure 8-94

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

8шт.

Included w/ SEAL KIT, P/N 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small inch wide -119, 90 Duro, .924" ID x .103" Thk

24шт.

Included w/ SEAL KIT, P/N 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

13

G108899

ROD

tie, 3/8 NC x 18-15/16 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

hex, 14-7/8 inch O-ring boss, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1346107C2

SEAL KIT

KIT seal, Includes: Refs. 9 & 10, plust additional O-rings not required for this application

1шт.
