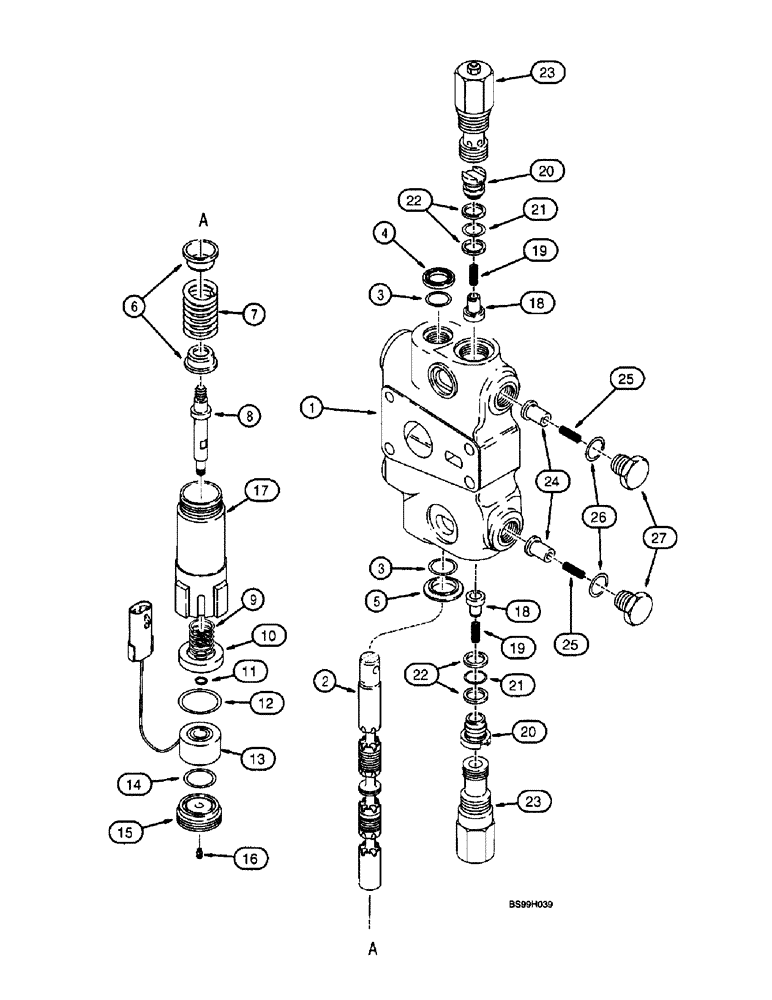

Запчасти Case 580L (8-077A) - LOADER CONTROL VALVE BUCKET SECTION - WITH MAGNETIC DETENT AND CIRCUIT RELIEF VALVE (08) - HYDRAULICS

328443A1

VALVE SECTION

SECTION ASSEMBLY, bucket, with magnetic detent and circuit relief valves, female clevis type spool eye, 328495A1, 328495A2, 328496A1 or 328496A2 valve, Includes: Ref. 1-17, 23, and P/N's 1346219C3, 1346221C3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

302326A1

SPRING,Compression, 28.067mm OD x 72.41mm L

centering, spool

1шт.

8

118318A1

TAPPET

SHAFT magnetic detent, Replaces: 307214A1 shaft used in production

1шт.

9

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

detent washer

1шт.

10

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

detent

1шт.

11

100-1125

SNAP RING,#25, Ext

Ring, Snap, , washer #25, Ext

1шт.

12

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

13

120148A3

ELECTROMAGNET

MAGNET with connector, Replaces: 120148A2

1шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

15

122330A1

PLUG,9/16" - 18

magnetic detent

1шт.

16

G107780

VALVE, CHECK

PLUG check, magnetic detent

1шт.

17

113787A3

BODY

HOUSING magnetic detent

1шт.

1346219C3

VALVE, CHECK

VALVE ASSEMBLY, load check, hollow poppet pin, Includes: Ref. 18-22

2шт.

18

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice

1шт.

19

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

20

1343708C1

PLUG

load check

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

22

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Included w/ SEAL KIT, P/N 1346105C2

1шт.

23

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, one piece cap, used in production, parts list Figure 8-84, order G109449 circuit relife valve kit for service, see Figure 8-84 for kit

2шт.

1346221C3

VALVE

ASSEMBLY anticavitation, Includes: Ref. 24-27

2шт.

24

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation

1шт.

25

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

332473A1

PLUG,Hex, 7/8" - 14

anticavitation

1шт.

1346105C2

SEAL KIT

KIT seal, Includes: Refs. 3, 4, 21, and 22, plus additional O-rings not required for this application

1шт.
