Запчасти Case 580L (8-074) - LOADER CONTROL VALVE INLET SECTION - WITH STEERING RELIEF VALVE (08) - HYDRAULICS

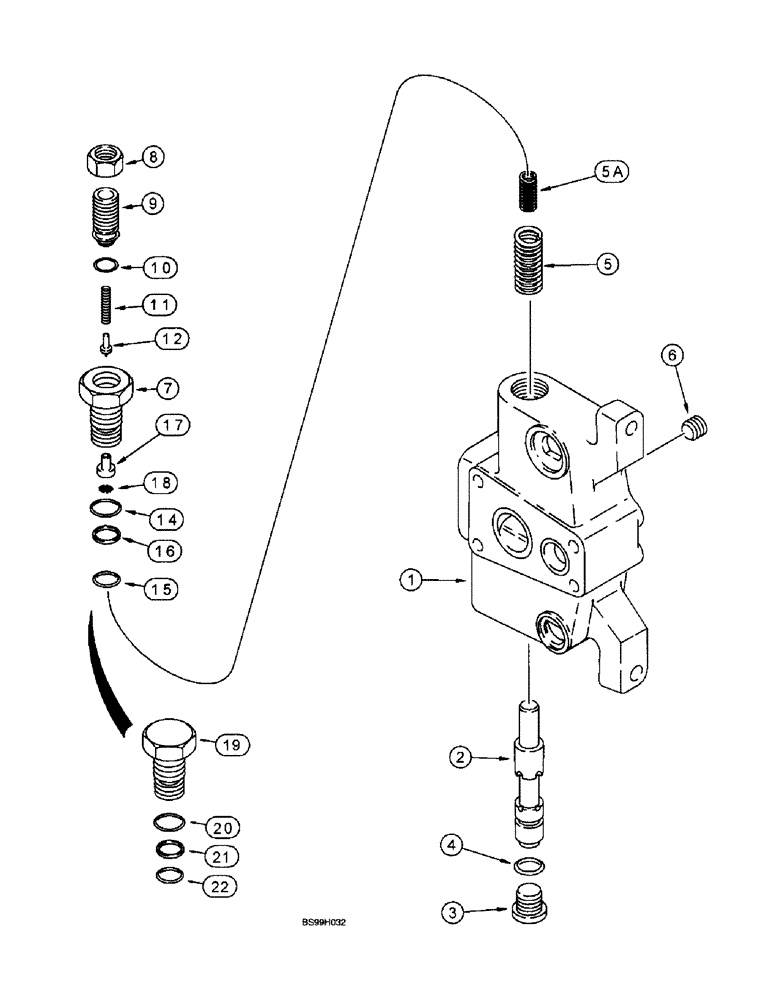

Схема запчастей Case 580L - (8-074) - LOADER CONTROL VALVE INLET SECTION - WITH STEERING RELIEF VALVE (08) - HYDRAULICS
21
14
3
16
20
17
18
8
2
15
22
9
10
4
19
5a
5
12
7
11
6
1

Артикул

Название

Примечание

Количество

121736A2

VALVE SECTION

SECTION ASSEMBLY, inlet, with pilot relief valve, Includes: Ref. 1-18, used in 302965A1, 302966A1, 328495A1 or 328496A1 valve

1шт.

130060A2 pilot relief valve is required on units equipped with hand held auxiliary hydraulics.

1шт.

364148A1

HYD VALVE SECTION

SECTION ASSEMBLY, inlet with pilot relief plug, Includes: Ref. 1-6 and Ref. 19-22, used in 328495A2 or 328496A2 valve, Includes: Ref. 1-3, 5-6, and P/N's 130060A2, 251714A1

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING inlet section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL inlet section

1шт.

3

86625138

PLUG,7/18" - 14

Includes Ref. 4 Hex Soc, 7/8"-14 ORB

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

122140A1

SPRING,Compression, 21mm OD x 55.18mm L

outer

1шт.

5a

122141A1

SPRING,Compression, 12.75mm OD x 50.82mm L

inner

1шт.

6

114903A1

PLUG

orifice, steering port

1шт.

130060A2

PILOT VALVE

VALVE ASSEMBLY, relief, pilot, with screen filter, Ref. 18, 121736A2 section, Includes: Ref. 7-18

1шт.

130060A2 pilot relief valve is required on units equipped with hand held auxiliary hydraulics.

1шт.

7

G108866

HOUSING,1-1/16" - 12

BODY pilot relief, valve

1шт.

8

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

1шт.

9

G108867

PLUG

adjusting, relief valve

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

130059A1

SPRING

pilot relief

1шт.

12

G108556

VALVE POPPET

POPPET relief, pilot

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Housing -018, 90 Duro, .739" ID x .070" Thk

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring, housing

1шт.

17

196095A1

SEAT

poppet, relief valve, used with Ref. 18 screen filter

1шт.

18

196096A1

SCREEN

relief valve, filter

1шт.

251714A1

PLUG

ASSEMBLY, pilot relief, 364148A1 section, Includes: Ref. 19-22

1шт.

19

248512A1

PLUG

pilot relief

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
