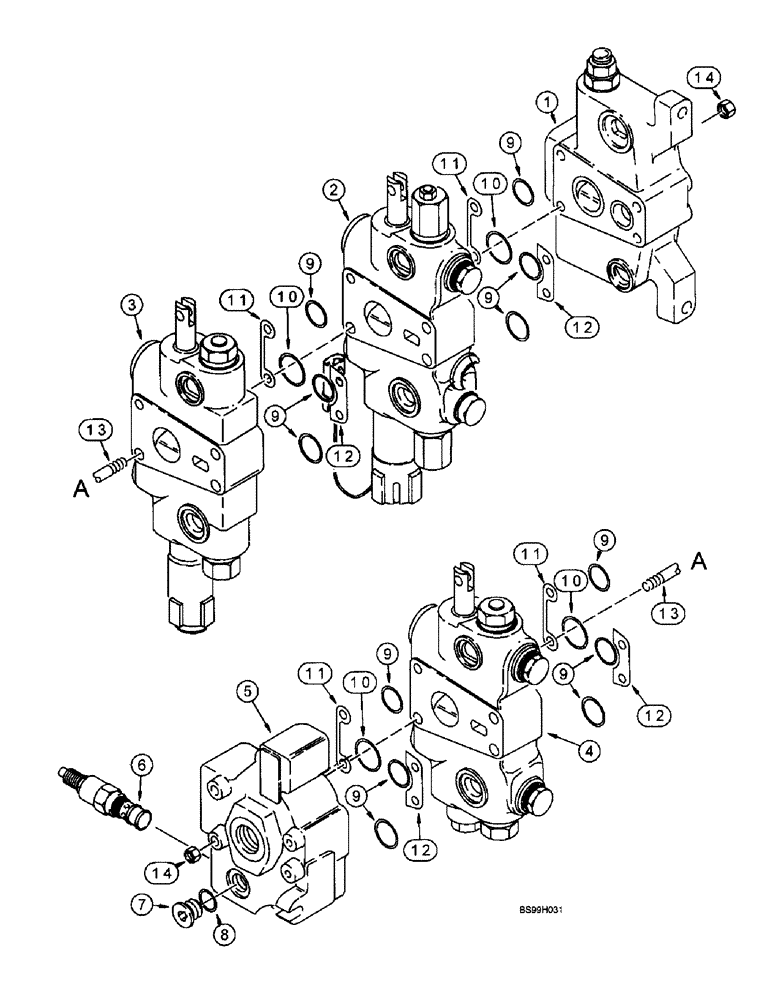

Запчасти Case 580L (8-073A) - LOADER CONTROL VALVE, THREE SPOOL, WITH FEMALE CLEVIS TYPE SPOOL EYES (08) - HYDRAULICS

328495A1

DISTRIBUTOR

VALVE ASSEMBLY, loader control, three spool, with female clevis type spool eyes, with pilot relief valve in inlet section, no longer availabe, order 328495A2 valve

1шт.

328495A2

VALVE

ASSEMBLY, loader control, three spool, with female clevis type spool eyes, with pilot relief plug in inlet section, Includes: Ref. 1-7, 9-14

1шт.

1

121736A2

VALVE SECTION

SECTION ASSEMBLY, inlet, with pilot relief valve, 328495A1 valve, parts list Figure 8-74

1шт.

1

364148A1

HYD VALVE SECTION

SECTION ASSEMBLY, inlet, with pilot relief plug, 328495A2 valve, not shown, parts list Figure 8-74

1шт.

2

328443A1

VALVE SECTION

SECTION ASSEMBLY, bucket, with magnetic detent and circuit relief valve, parts list Figure 8-77A

1шт.

3

328444A1

VALVE SECTION

SECTION ASSEMBLY, lift, with manual detent, parts list Figure 8-79A

1шт.

4

332754A1

HYD VALVE SECTION

SECTION ASSEMBLY, clam, all valves, parts list Figure 8-83A

1шт.

5

132004A2

HYD VALVE SECTION

SECTION ASSEMBLY, outlet, parts list Figure 8-80

1шт.

6

129842A2

VALVE, PRESSURE RELI

VALVE ASSEMBLY, main relief, component parts are not service separately, for service of external seals, order G110098 seal kit.

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

Outlet section diagnostic port, Incl Ref 8 Hex Soc, 7/16"-20 ORB

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small inch wide -119, 90 Duro, .924" ID x .103" Thk

12шт.

Included w/ SEAL KIT, 1346108C2

1шт.

10

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

4шт.

Included w/ SEAL KIT, 1346108C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

4шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

4шт.

13

G108805

STUD

tie, 3/8 NC x 11-3/4 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

KIT, Includes: Refs. 9 & 10, plus additional O-rings not required for this application

1шт.
