Запчасти Case 580L (1-22) - PICTORIAL INDEX, BACKHOE HYDRAULICS, EXTENDABLE DIPPER (00) - PICTORIAL INDEX

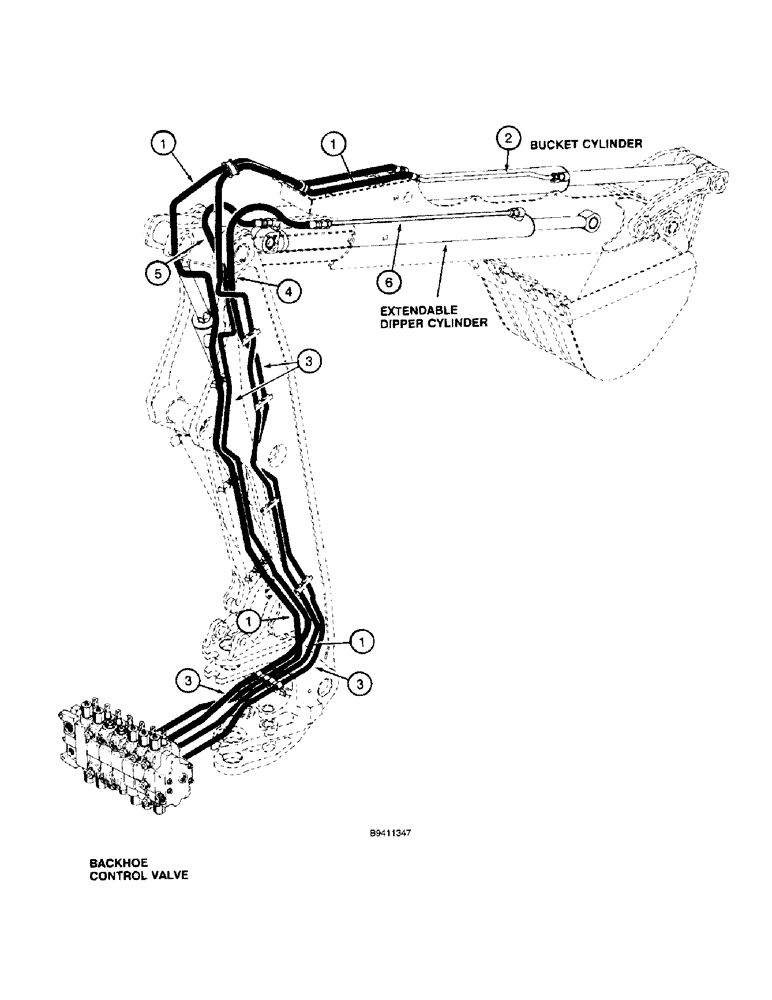

Схема запчастей Case 580L - (1-22) - PICTORIAL INDEX, BACKHOE HYDRAULICS, EXTENDABLE DIPPER (00) - PICTORIAL INDEX
6
5
4
1
1
3
1
1
3
3
2

Артикул

Название

Примечание

Количество

1

Hoses at control valve through swing tower to bucket cylinder, Fig. 8-30

1шт.

2

Bucket cylinder rod end tube, Figure 8-30

1шт.

3

Hoses at control valve through swing tower to boom for extendable dipper circuit, Fig. 8-32

1шт.

4

Hose at extendable dipper cylinder rod end tube, Fig. 8-32

1шт.

5

Hose at extendable dipper cylinder closed end, Fig. 8-32

1шт.

6

Tube at extendable dipper cylinder rod end, Fig. 8-32

1шт.
