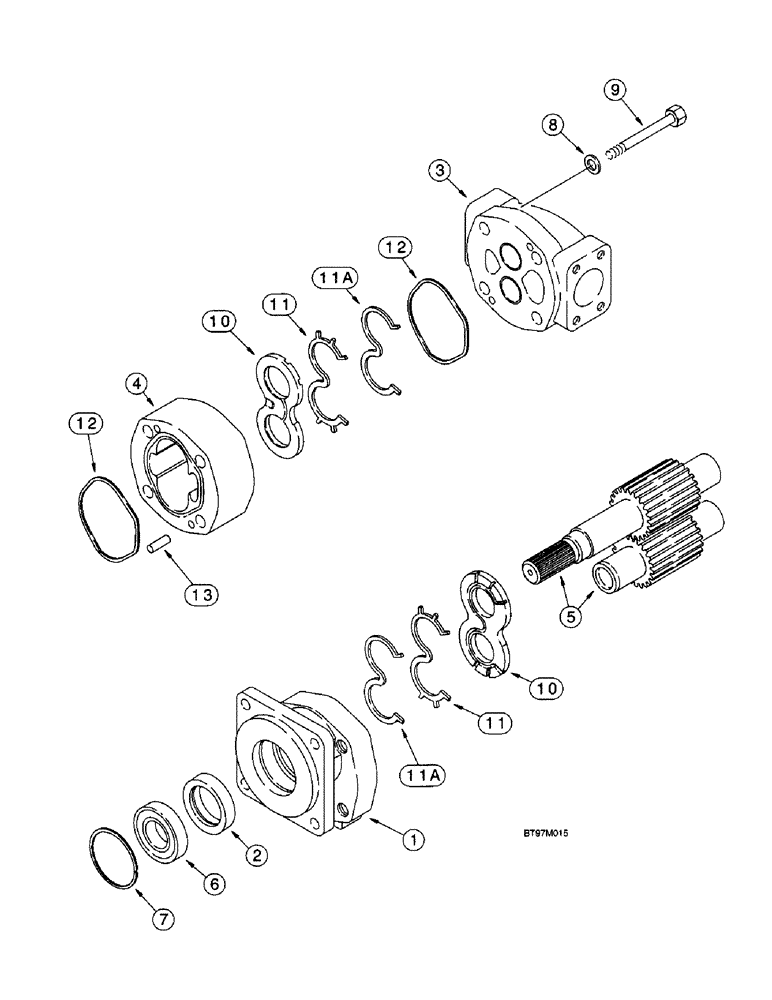

Запчасти Case 580L (8-068) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

257953A1

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulic equipment, 17 teeth shaft gear set, without hight flow, used with 257948A1 flex coupling on Figure 8-2, Includes: Ref. 1-13

1шт.

257953A1R

REMAN-HYD PUMP

PUMP ASSEMBLY, hydraulic equipment, 17 teeth shaft gear set, without hight flow, used with 257948A1 flex coupling on Figure 8-2, Includes: Ref. 1-13

1шт.

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER shaft end

1шт.

2

L32318

SEAL

shaft

1шт.

Part of seal kit, P/N 293923A1

1шт.

3

NSS

NOT SOLD SEPARAT

COVER closed end

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING gear, shaft end

1шт.

5

NSS

NOT SOLD SEPARAT

SET gear, shaft end, 17 teeth, 1-1/8 inch diameter shaft spline

1шт.

6

S88754

BALL BEARING

BEARING ball, sealed

1шт.

7

102-23283

SNAP RING,#283, 3.009", Int, Spiral

RING internal spiral retaining, retaining, spring lock, No. 283

1шт.

8

19-488

WASHER

flat

4шт.

9

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

4шт.

10

111589A1

LARGE PLATE

PLATE thrust, shaft end

2шт.

Part of seal kit, P/N 293923A1

1шт.

11

293926A1

SEAL

used with 293925A1 backup seal

2шт.

Part of seal kit, P/N 293923A1

1шт.

11a

293925A1

SEAL

backup, used with 293926A1 seal

2шт.

Part of seal kit, P/N 293923A1

1шт.

12

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

square ring, shaft end, 4-31/64 ID x 1/8 inch wide

2шт.

Part of seal kit, P/N 293923A1

1шт.

13

W16323

DOWEL

PIN dowel, shaft end

4шт.

293923A1

SEAL KIT

KIT seal, Includes Ref. 2, 10, 11, 11A, and 12

1шт.
