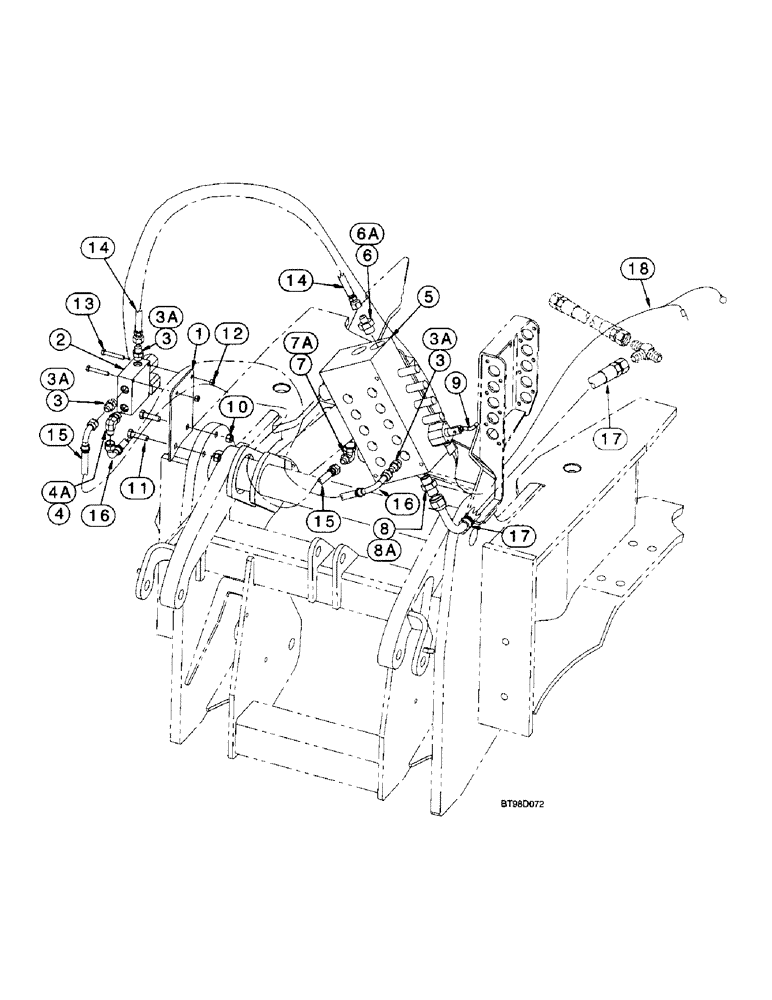

Запчасти Case 580L (8-067A) - THREE-POINT HITCH LOCK VALVE SERVICE KIT (08) - HYDRAULICS

313917A1

KIT

hitch lock valve, order from Parts and Components, Includes: Ref. 1-3, 4, 5-6, 7, 8, 9-18

1шт.

1

311592A1

PLATE

valve mounting

1шт.

2

311588A1

VALVE

ASSEMBLY, solenoid, component parts list not available at time of printing

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss, Incl. Ref 3A 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 4A

1шт.

4a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

311585A1

VALVE

ASSEMBLY, three point hitch control, component parts list not available at time of printing

1шт.

6

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 6A

1шт.

6a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 7A

1шт.

7a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 8A

1шт.

8a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

311593A1

ROD

lift control

1шт.

10

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

2шт.

11

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 40 mm

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

2шт.

13

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

2шт.

14

311589A1

HOSE,9.52 mm ID x 743.00 mm

Solenoid to Tank 9.52 mm ID x 743.00 mm

1шт.

15

311590A1

HOSE ASSY.

HOSE solenoid to cylinder, 1080 mm, 42-17/32 inch long

1шт.

16

311591A1

HOSE ASSY.

HOSE solenoid to valve, 953 mm, 37-17/32 inch long

1шт.

17

246636A1

HOSE

valve to tank, 960 mm, 37-13/16 inch long

1шт.

18

311596A2

HARNESS

three point hitch lock, Replaces: 311596A1

1шт.
