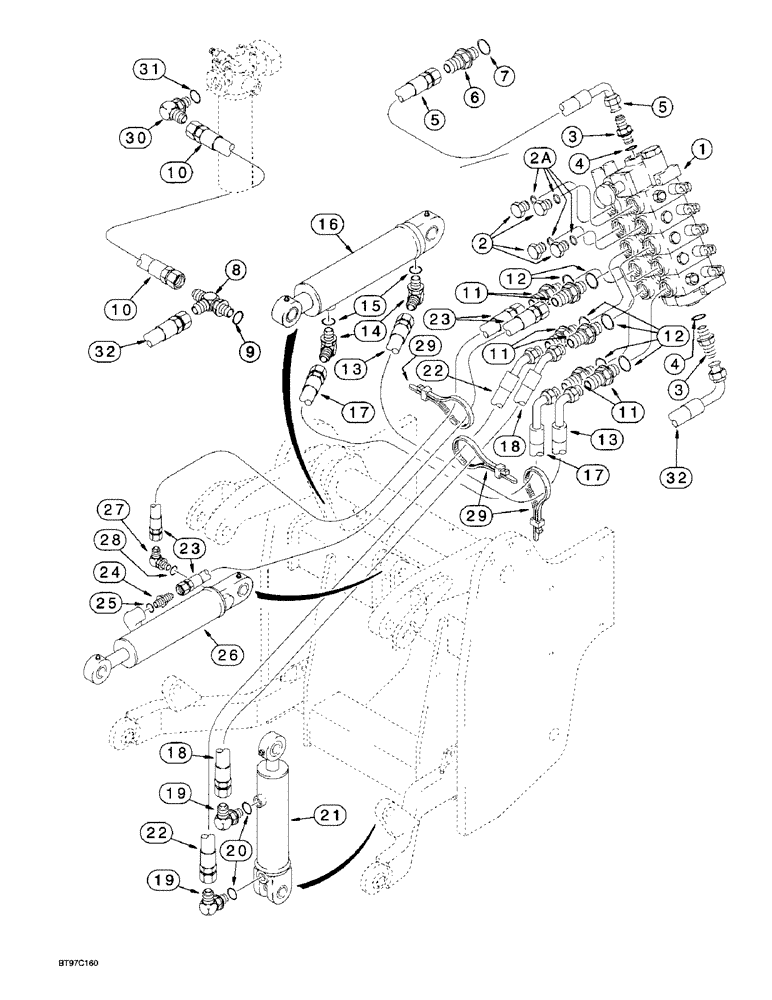

Запчасти Case 580L (8-066) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, RETURN LINE AT BOTTOM OF HITCH VALVE (08) - HYDRAULICS

1

142252A2

VALVE, CONTROL

VALVE ASSEMBLY, three point hitch control, parts list Figure 8-120, see Figure 9-78 for valve mounting

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 2A Hex Hd, 3/4"-16 ORB

4шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 4

2шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

181504A1

HOSE

loader control valve power beyond port to three point hitch control valve inlet port, 1575 mm, 62 inch) long, Includes: hose guard

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, at loader control valve power beyond port, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

8

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

10

236116A1

HOSE

430 mm, 16-15/16 inch long, loader valve to filter, see Figure 8-8 for tee, now tee attaches to return port on loader valve

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss, Incl. Ref 12 3/4"-16, 37º x 3/4"-16, O-Ring

6шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

181499A1

HOSE

upper port of lift section to closed end of lift cylinder, 950 mm, 37-13/32 inch long, Includes: hose guard

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, lift cylinder, 3/4-16 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY, lift, 76 mm, 3 inch ID x 207 mm, 8-5/32 inch) stroke, parts list Figure 8-156 or 8-157A

1шт.

17

181498A1

HOSE

lower port of lift section to rod end of lift cylinder, 635 mm, 25 inch long, Includes: hose guard

1шт.

18

181501A1

HOSE

upper port tilt section to rod end of tilt cylinder, 925 mm, 36-7/16 inch long

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

tilt cylinder, 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

CYLINDER ASSEMBLY, tilt, 64 mm, 2-1/2 inch ID x 160 mm, 6-19/64 inch stroke, parts list Figure 8-158

1шт.

22

181500A1

HOSE

tilt cylinder closed end to tilt section lower port, 1205 mm, 47-7/16 inch long

1шт.

23

181502A1

HOSE

upper and lower pitch section ports to rod and closed end of pitch cylinder, 755 mm, 29-3/4 inch long

2шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss, Pitch cylinder rod end, Incl. Ref 25 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

CYLINDER ASSEMBLY, pitch, 64 mm, 2-1/2 inch ID x 178 mm, 7 inch stroke, parts list Figure 8-160

1шт.

138235A1R

REMAN-HYD CYLINDER

580L, 570LXT both (1/98-)

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, pitch cylinder closed end, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 28

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 5 inch

6шт.

30

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, Incl. Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

32

246636A1

HOSE

return, 960 mm, 37-13/16 inch long

1шт.
