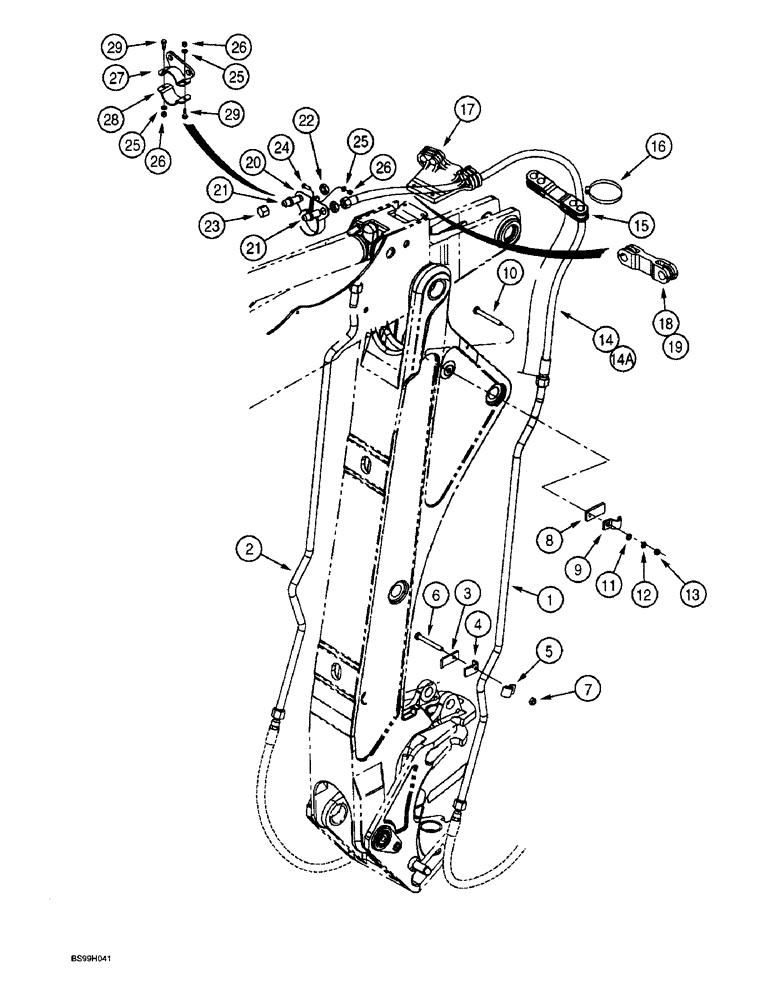

Запчасти Case 580L (8-050) - BACKHOE AUXILIARY HYDRAULICS, AT BOOM AND DIPPER (08) - HYDRAULICS

1

243404A1

TUBE,25.4 mm OD, 1809, 165 mm Length

on boom, left hand side

1шт.

Left hand and right hand are designated from sitting in the operator’s seat facing the backhoe.

1шт.

2

243300A1

TUBE,25.4 mm OD, 1809, 165 mm Length

on boom, right hand side

1шт.

Left hand and right hand are designated from sitting in the operator’s seat facing the backhoe.

1шт.

3

D149309

CLAMP

tube

2шт.

4

243298A1

CLAMP

tube

2шт.

5

242459A1

SHIN

CLAMP tube

2шт.

6

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

243398A1

SUPPORT

PLATE clamp

2шт.

9

242459A1

SHIN

CLAMP tube

2шт.

10

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

14

243679A2

HYDRAULIC HOSE,19.05mm ID x 2665mm L

HOSE, HYDRAULIC, Models with extendable dipper, 2665 mm, 104-15/16" long, Incl hose guard and two banded clamps, Replaces 243679A1 hose

2шт.

14a

256210A2

HYDRAULIC HOSE,19.05mm ID x 1285mm L

HOSE, HYDRAULIC, Models without extendable dipper, 1285 mm, 50-19/32" long, Incl hose guard and two banded clamps, Replaces 256210A1 hose

2шт.

15

246158A1

CLAMP,27mm ID

SUPPORT hose, models with extendable dipper

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

CLAMP adj., models with extendable dipper, 2-3/4 - 3-5/8 inch dia.

4шт.

17

246151A1

SUPPORT

hose, models with extendable dipper

1шт.

18

103670A1

CLAMP,27mm ID

CLAMP rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP adj., 1-1/4 - 2-1/8 inch dia.

2шт.

20

243415A1

SPECIAL CLAMP

CLAMP quick coupler, no longer available, order 314319A1 clamp and 314320A1 strap

1шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER straight, 1-1/16-12 inch flare x bulkhead flare

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT hex, lock, bulkhead, 1-1/16 inch NF

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

hex, 1-1/16-12 inch

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1-2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1-2шт.

27

314319A1

SPECIAL CLAMP

CLAMP quick coupler

1шт.

28

314320A1

SPECIAL CLAMP

STRAP clamp

1шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
