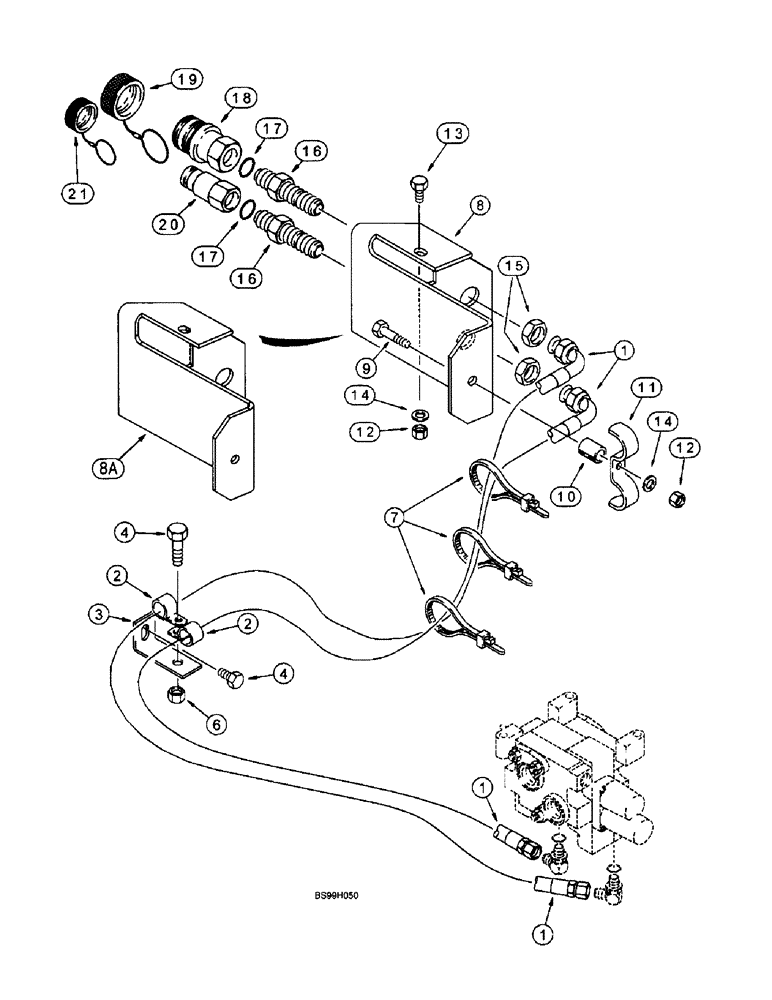

Запчасти Case 580L (8-040) - HAND HELD AUX. HYDRAULICS, AUX. VALVE TO QUICK DISCONNECT COUPLINGS, MODELS W/ 31 GAL. FUEL TANK (08) - HYDRAULICS

1

191215A1

HOSE

auxiliary valve to quick disconnect couplings, 2460 mm, 96-7/8 inch long, see Figure 8-36 for 218-5107 elbows at auxiliary valve

2шт.

2

D34033

CLAMP

P-type, 1-3/16 inch ID

2шт.

3

180318A1

SUPPORT

BRACKET hose support

1шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

8

297635A1

BRACKET

hose support to quick disconnect couplings, 255 mm, 10-3/64 inch x 155 mm, 6-1/8 inch, if used

1шт.

8a

370452A1

BRACKET

hose support to quick disconnect couplings, 257 mm, 10-1/8 inch x 176 mm, 6-15/16 inch, if used

1шт.

9

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10-1.5 x 50 mm, class 10.9

1шт.

10

131600A1

SPACER

clamp

1шт.

11

191075A1

FIXING BRACKET

CLAMP double

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT hex, lock, bulkhead, 1-1/16 inch NF

2шт.

16

126155A1

FITTING

CONNECTOR straight, bulk, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

18

122179A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, female, component parts are not serviced separately

1шт.

19

137343A1

PLUG

CAP female coupling, aluminum, if used

1шт.

19

193261A1

PLUG

CAP female coupling, black rubber, if used

1шт.

20

122178A2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, component parts are not serviced separately

1шт.

21

137344A1

PLUG

CAP male coupling, aluminum, if used

1шт.

21

193262A1

PLUG

CAP male coupling, black rubber, if used

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
