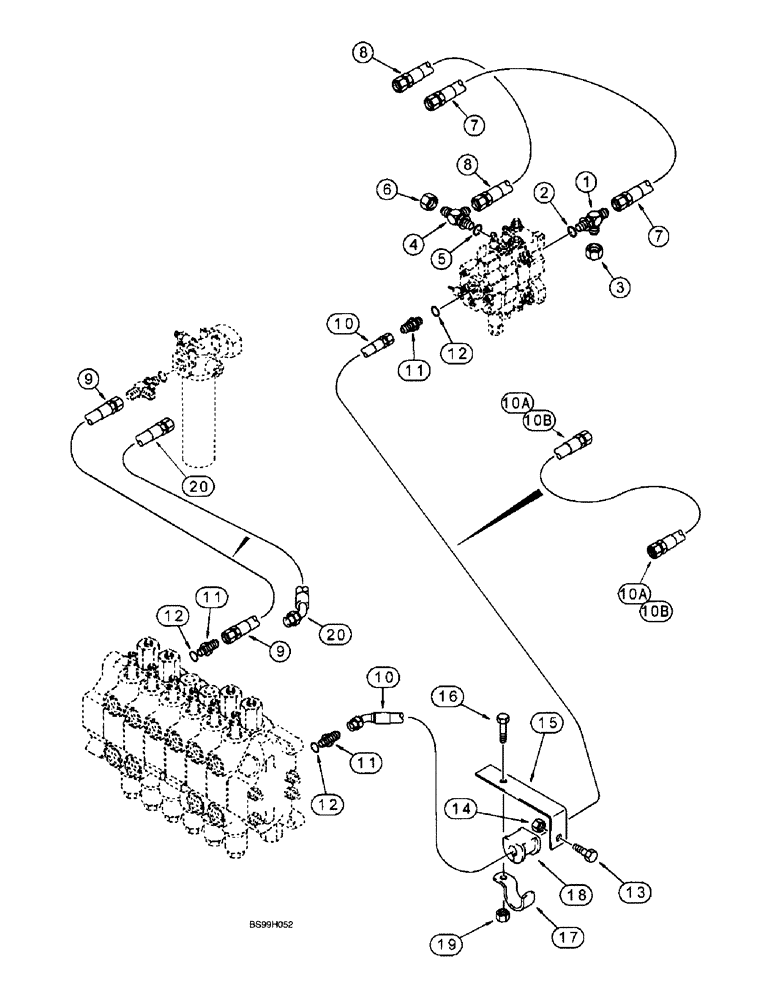

Запчасти Case 580L (8-034) - LOADER VALVE TO BACKHOE VALVE HYDRAULIC CIRCUIT, MODELS W/ STD. DIPPER OR EXT. DIPPER, W/O AUX. HYD. (08) - HYDRAULICS

1

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 2

1шт.

3

218-754

CAP,37 Degree, 9/16"-18

hex 37º, 9/16"-18

1шт.

4

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

16-3/4 inch fl branch x 1-1/16-12 fl x 14-7/8 inch adj. O-ring, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

218-756

CAP,37 Degree, 7/8"-14

1шт.

7

144221A1

HOSE

steering pilot, sterring control valve small center port to loader control valve, 1275 mm, 50-3/16 inch long, see Ref. 6 on Figure 5-4

1шт.

8

224423A1

HYDRAULIC HOSE,9.65 mm ID x 1300.00 mm

- Steering pressure, Loader control valve to steering control valve lower RH port 9.65 mm ID x 1300.00 mm

1шт.

9

144233A1

HOSE,1.0” ID x 890mm L

return, backhoe control valve to filter, 890 mm, 35 inch long, no longer available, order Ref. 20, 313648A1 hose

1шт.

See Figure 8-36 - 8-50 for auxiliary hydraulics and Figure 8-66 for hose used on models with three point hitch.

1шт.

10

144240A1

HOSE,3/4" ID, 1028mm L

loader valve power beyond port to backhoe control valve inlet, two auxiliary hydraulics, 1028 mm, 40-1/2 inch long

1шт.

10

144241A1

HOSE,19.05mm ID x 977mm L

loader valve power beyond port to backhoe control valve inlet, three spool valve, with hand held auxiliary hydraulics 977 mm, 38-15/32 inch long

1шт.

See Figure 8-36 - 8-50 for auxiliary hydraulics and Figure 8-66 for hose used on models with three point hitch.

1шт.

10a

315284A1

HOSE ASSY.,3/4" ID, 1006mm L

HOSE loader valve power beyond port to backhoe control valve inlet, two spool valve, models without hand held auxiliary hydraulics, 1006 mm, 39-5/8 inch long

1шт.

10b

325662A1

HOSE ASSY.

HOSE loader valve power beyond port to backhoe control valve inlet, three spool valve, models without hand held auxiliary hydraulics, 956 mm, 37-21/32 inch long

1шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 11-5/16-12 inch flare x O-ring boss, Incl. Ref. 12

3шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex, full threads, 12-1.75 x 35 mm

1шт.

14

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

1шт.

15

136008A1

SUPPORT

BRACKET mounting, hose

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

17

144479A1

CLAMP

isolation

1шт.

18

144477A1

ISOLATOR

Rubber

1шт.

20

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

HOSE, HYDRAULIC, Return, Backhoe control valve to filter, 910 mm, 35-27/32" long

1шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
