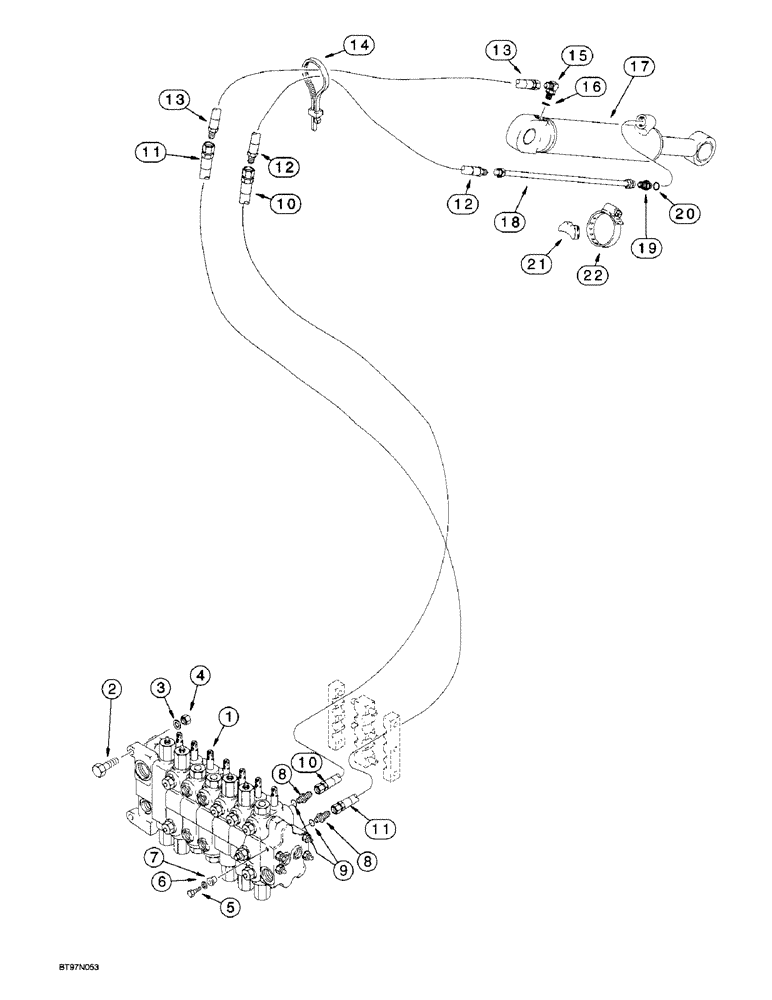

Запчасти Case 580L (8-032) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-90 - 8-93A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened, 25/64 x 1-1/4 x 7/64 inch

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, extendable dipper section upper and lower ports, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

143358A1

HOSE

in boom, to extendable dipper cylinder rod end, 3073 mm, 121 inch long, Includes: hose guard and clamp

1шт.

11

143359A1

HOSE,12.7mm ID x 3073mm L

in boom, to extendable dipper cylinder closed end, 3073 mm, 121 inch long, Includes: hose guard and clamp

1шт.

12

184617A1

HYDRAULIC HOSE,12.7mm ID x 850mm L

HOSE, HYDAULIC, Extendable dipper cylinder rod end, 850 mm, 33-1/2" long, Incl hose guard and clamp

1шт.

13

184616A1

HYDRAULIC HOSE,12.7mm ID x 700mm L

HOSE, HYDRAULIC, Extendable dipper cylinder closed end, 700 mm, 27-9/16" long, Incl hose guard and clamp

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, retaining, 15 inch

2-4шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, extendable dipper cylinder closed end, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

Assy, Extendable dipper, 76 mm, 3 inch ID x 1068 mm, 42 inch stroke, Parts list Figure 8-154

1шт.

17

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

17

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

18

D140706

PIPE

TUBE at extendable dipper cylinder rod end

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, extendable dipper cylinder rod end, 7/8-14 inch flare x O-ring boss, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

D38648

BLOCK

SPACER rubber

1шт.

22

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

1шт.
