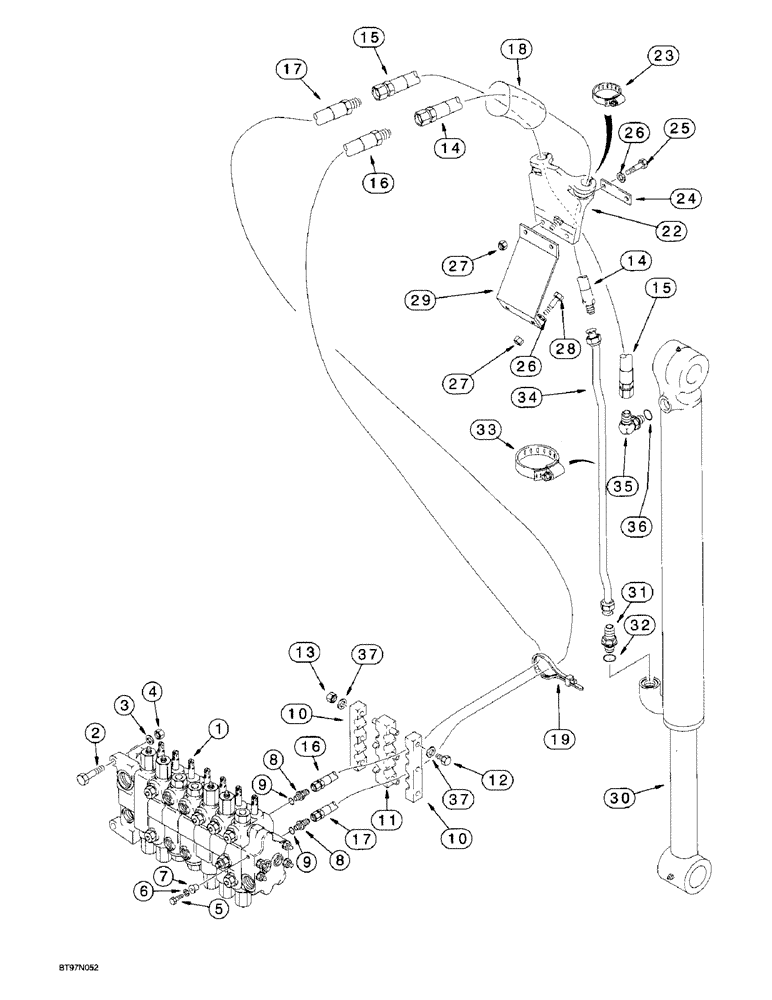

Запчасти Case 580L (8-030) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-90 - 8-93A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened, 25/64 x 1-1/4 x 7/64 inch

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section upper and lower ports, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

178951A1

CLAMP

hose, outer

2шт.

11

178952A1

CLAMP

hose, center

1шт.

12

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

hex, 10 - 1.5 x 120 mm

3шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

3шт.

14

143401A1

HOSE,12.7mm ID x 2052mm L

to tube at rod end of bucket cylinder, 2052 mm, 80-3/4 inch long

1шт.

15

143400A1

HOSE,12.7mm ID x 2052mm L

to closed end of bucket cylinder, 2052 mm, 80-3/4 inch long

1шт.

16

194160A1

HOSE,12.7mm ID x 3048mm L

upper hose to rod end of bucket cylinder, 3048 mm, 120 inch long, Includes: hose guard and clamp

1шт.

17

194161A1

HOSE,12.7mm ID x 3048mm L

lower hose to closed end of bucket cylinder, 3048 mm, 120 inch long, Includes: hose guard and clamp

1шт.

18

183322A1

PROTECTOR

SLEEVE 2000 mm, 78-3/4 inch long

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, retaining, 15 inch

2-5шт.

22

184297A1

SUPPORT

hose

1шт.

23

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP adj., 1-1/4 - 2-1/8 inch dia

2шт.

24

101479A1

SUPPORT

PLATE hose support

1шт.

25

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

hex, 10 - 1.5 x 45 mm

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

29

183736A1

SUPPORT

PLATE hose support

1шт.

30

128760A1

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke

CYLINDER ASSEMBLY, bucket, 83 mm, 3-1/4 inch ID x 872 mm, 34-5/16 inch stroket, parts list Figure 8-152

1шт.

30

128760A1R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

30

128760A1C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

31

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, bucket cylinder rod end, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

34

256091A1

HYD TUBE,19.05 mm OD, 906, 58 mm Length

TUBE bucket cylinder rod end, Replaces: 136436A1

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

4шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

6шт.
