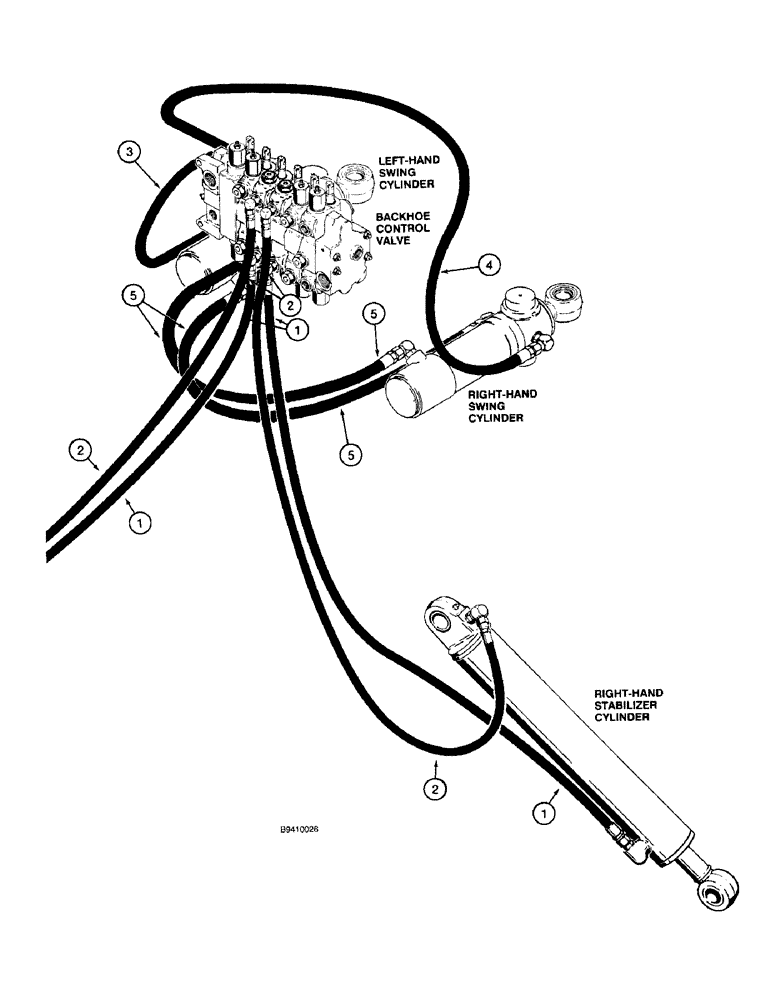

Запчасти Case 580L (1-18) - PICTORIAL INDEX, BACKHOE HYDRAULICS, STABILIZER CYLINDER AND SWING CYLINDER (00) - PICTORIAL INDEX

1

Hose at stabilizer cylinder rod ends to backhoe control valve stabilizer section lower ports, Fig. 8-20

1шт.

2

Hose at stabilizer cylinder closed ends to backhoe control valve stabilizer section upper ports, Fig. 8-20

1шт.

3

Hose at backhoe control valve swing section upper port to outer rod end of left hand swing cylinder, Fig. 8-22

1шт.

4

Hose at backhoe control valve swing section lower port to outer rod end of right hand swing cylinder, Fig. 8-22

1шт.

5

Crossover hose, Fig. 8-22

1шт.
