Запчасти Case 580L (8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

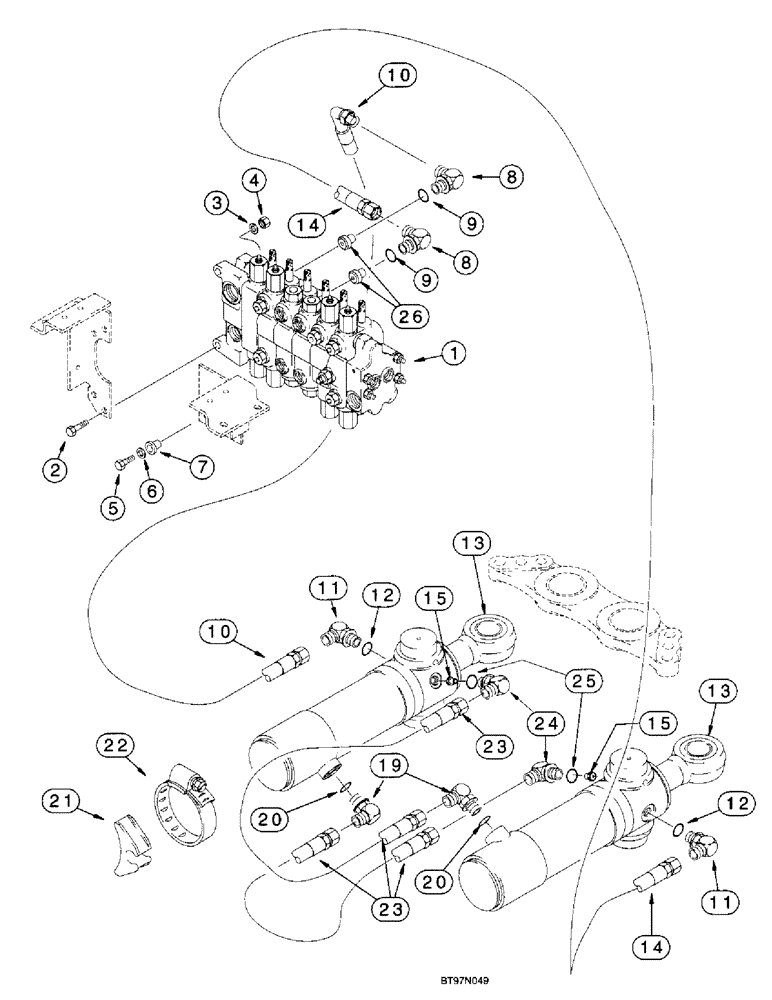

Схема запчастей Case 580L - (8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
11
23
22
15
11
13
7
6
10
25
8
14
8
9
9
3
13
15
2
1
12
26
14
24
5
4
23
21
19
20
12
20
10

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figures 8-86 - 8-92

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened, 25/64 x 1-1/4 x 7/64 inch

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 degree, swing section, upper and lower ports, 7/8-14 flare x 1-1/16-12 inch adj. O-ring boss, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

196278A1

HOSE ASSY.,12.7mm ID x 700mm L

HOSE swing section upper port to outer rod end of left hand swing cylinder, 700 mm, 27-9/16 inch long, Includes: hose guard

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, outer rod end of swing cylinders, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

CYLINDER ASSEMBLY, swing, 95 mm, 3-3/4 ID x 292 mm, 11-1/2 inch stroke, parts list Figure 8-146

2шт.

188027A2R

REMAN-HYD CYLINDER

570LXT, 580L All (1/98-)

2шт.

188027A2C

CORE-HYD CYLINDER

Return Number

1шт.

14

183243A1

HOSE,12.7mm ID x 1400mm L

right hand swing cylinder outer rod end to swing section lower port, 1400 mm, 55-1/8 inch long

1шт.

15

192971A1

ORIFICE,9.52mm OD x 7.14mm ID, 3.18mm x 6 ID, 3.61mm ID

RESTRICTOR check

2шт.

19

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 degree, 7/8-14 flare x 1-1/16-12 inch adj. O-ring boss, Includes: Ref. 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

D142787

SPACER

INSULATOR rubber

2шт.

22

214-1488

HOSE CLAMP,130.05mm - 152.4mm

CLAMP, HOSE, , Adj. #88, 5.12/6.00 Type F Worm

2шт.

23

255659A1

HOSE,12.7mm ID x 815mm L

crossover, 815 mm, 32-3/32 inch long, 1/2 inch ID, Includes: hose guard

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

182222A1

FITTING

RESTRICTOR check, 4.36 mm orifice, if used

2шт.

Выбрано товаров: 25
