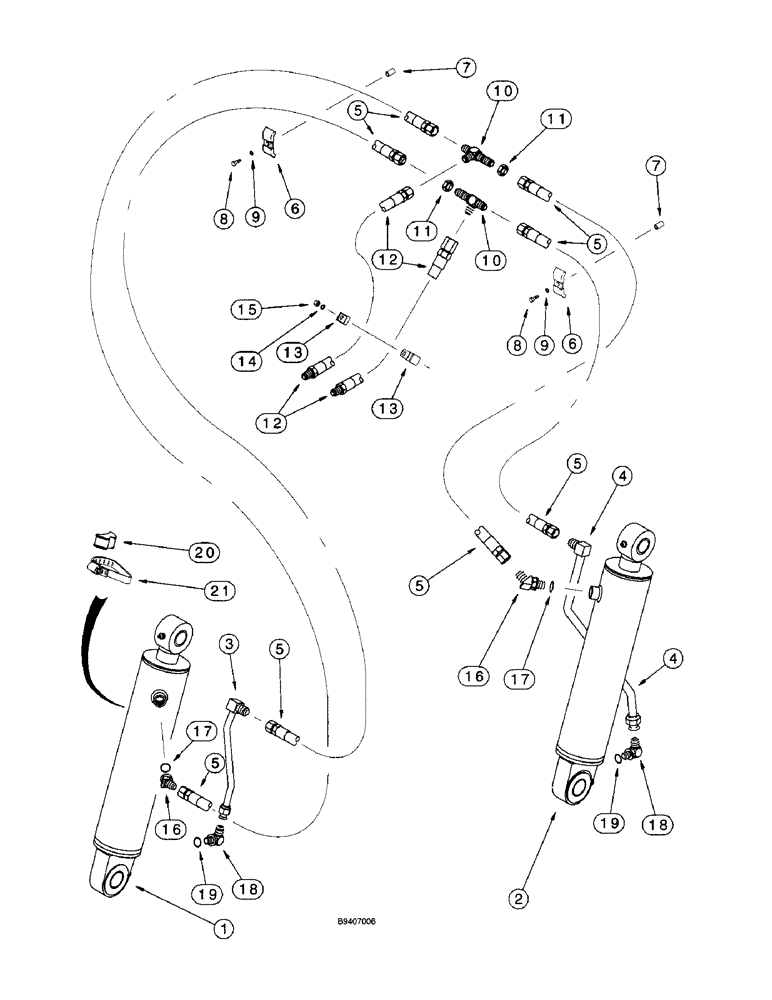

Запчасти Case 580L (8-018) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT LOADER BUCKET (08) - HYDRAULICS

1

1346190C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, clam, 76 mm, 3 inch ID x 231 mm, 9 inch stroke, left hand, parts list Figure 8-142

1шт.

2

1346189C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, clam, 76 mm, 3 inch ID x 231 mm, 9 inch stroke, right hand, parts list Figure 8-142

1шт.

2

87454017R

REMAN-HYD CYLINDER

570LXT LOADER LANDSCAPER, 580L LOADER BACKHOE, Both SERIES 2, CYLINDER ASSEMBLY, clam, 76 mm, 3 inch ID x 231 mm, 9 inch stroke, right hand (1/98-), Reman for New PN 1346189C1

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

192352A1

HYD TUBE

HOSE, FLEXIBLE (Tube), LH cylinder

1шт.

4

192345A1

HYD TUBE

HOSE, FLEXIBLE (Tube), RH cylinder

1шт.

5

144242A1

HOSE,12.7mm ID x 1120mm L

right hand and left hand cylinders, 1120 mm, 44-3/32 inch long

4шт.

6

D143846

CLAMP

Horizontal hose

2шт.

7

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm, 7/8 inch long

2шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

14-7/8 inch flare branch x flare x bulkhead flare, connecting horizontal and vertical tubes and hoses

2шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

12

144243A1

HOSE,12.7mm ID x 1167mm L

lift arms, 1167 mm, 46 inch long

2шт.

13

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type, Vertical hoses 1", Insul, 1/2" Bolt

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, clam cylinders, rod end, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, clam cylinders, closed end, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

D38648

BLOCK

SPACER rubber, clamp

2шт.

21

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Clam cylinder tubing #64, 3.56/4.50 Type F Worm

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

1шт.
