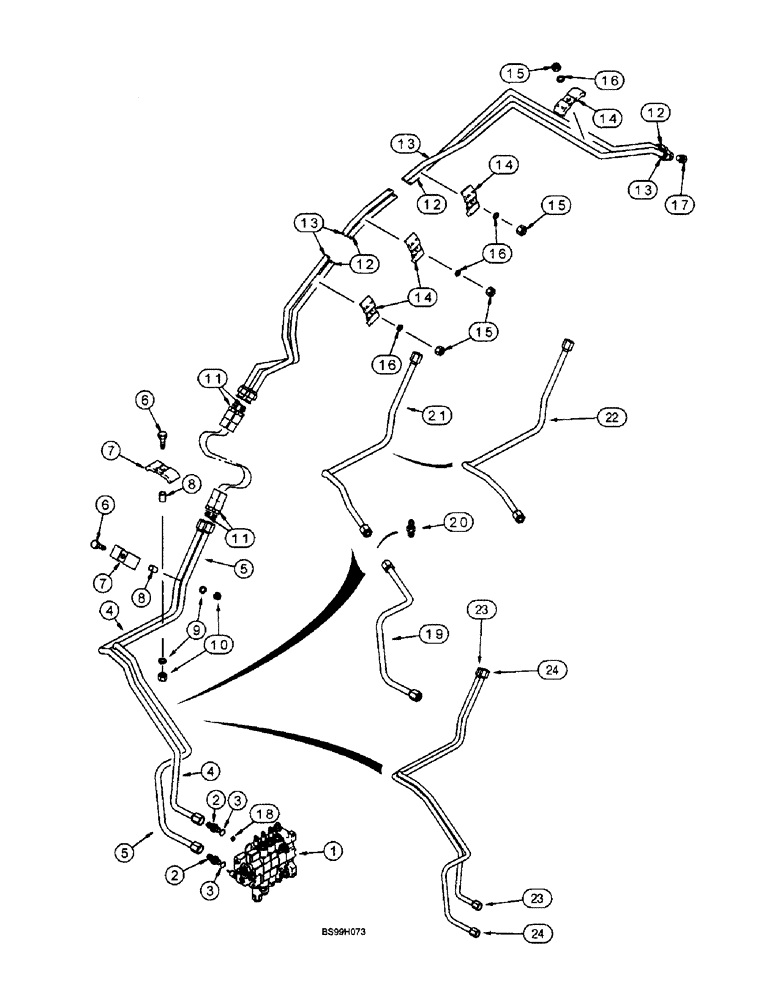

Запчасти Case 580L (8-016) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

113785A4

VALVE

ASSEMBLY, loader control, three-spool, see Figure 8-073 or 8-073B, for mounting hardware see 9-003

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

225326A1

TUBE

upper port loader valve clam section to hose at loader arm pivot, services itself, if used

1шт.

5

225328A1

TUBE

lower port loader valve clam section to hose at loader arm pivot, used in production, for service order 232945A1 and 232947A1 tubes and 218-435 connector, Ref 19-21, if used

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

7

D138055

CLAMP

tube

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

11

138467A1

HOSE,12.7mm ID x 680mm L

680 mm/26-3/4 inch long, at loader arm pivot

2шт.

12

196824A1

TUBE

lower, on loader lift frame, port A

1шт.

13

196821A1

TUBE

upper, on loader lift frame, port B

1шт.

14

D138055

CLAMP

tube

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

218-776

PLUG,7/8"-14, 37 Degree

hex, 7/8-14 inch flare, not used on models with clam bucket, if used

2шт.

18

188058A1

ORIFICE

RESTRICTOR check

1шт.

19

232945A1

TUBE

lower port at loader valve

1шт.

20

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare

1шт.

21

232947A1

TUBE

lower port at loader valve, if used

1шт.

22

360937A1

TUBE

lower port at loader valve, if used

1шт.

23

360916A1

TUBE

upper port loader valve clam section to hose at loader arm pivot, services itself, if used

1шт.

24

360918A1

TUBE

lower port loader valve clam section to hose at loader arm pivot, used in production, for service order P/N 232945A1 and 360937A1 tubes and 218-435 connector, Ref 19, 20, 22, if used

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
