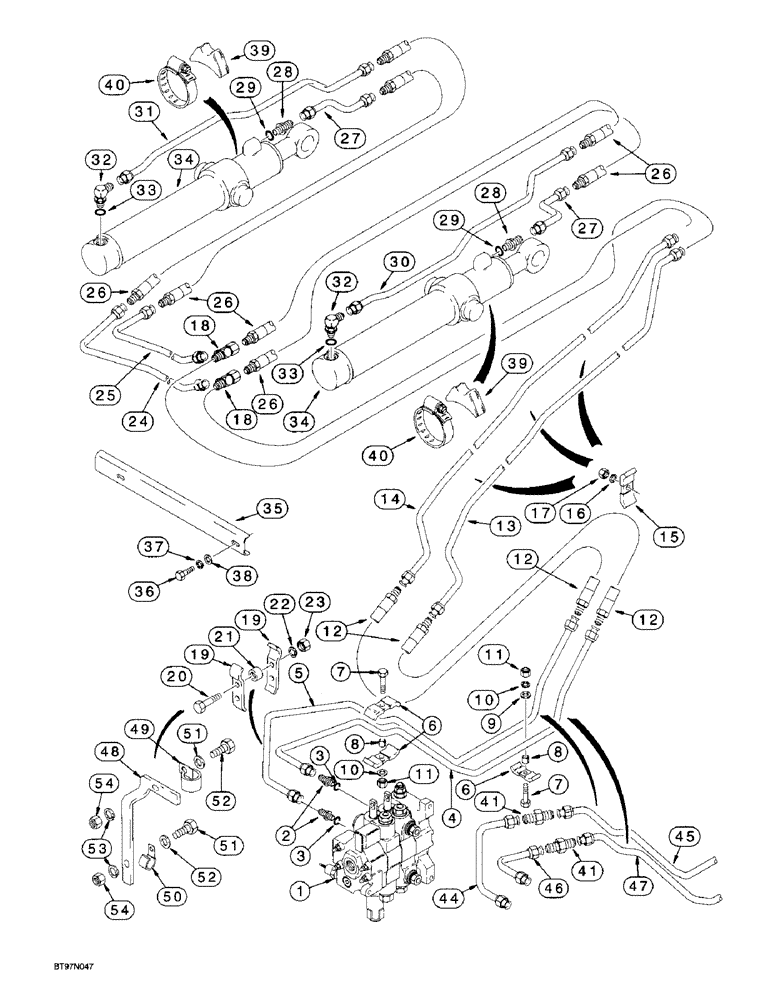

Запчасти Case 580L (8-011) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figure 8-0070 - 8-073B, for mounting see Figure 9-003

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

232447A1

TUBE

bucket section upper port, used in production, for service order P/N 232934A1 and 232936A1 tubes and 218-435 connector, Ref 41, 46 and 47 on Figure 8-105

1шт.

5

220169A1

TUBE

bucket section lower port, used in production, for service order P/N 221143A1 and 221146A1 tubes and 218-435 connector, Ref. 41, 44 and 45 on Figure 8-015

1шт.

6

D138055

CLAMP

tube

2шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

12

138467A1

HOSE,12.7mm ID x 680mm L

680 mm/26-3/4 inch long, at loader arm pivot

2шт.

13

196817A1

TUBE

lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders

1шт.

14

196819A1

TUBE

upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end

1шт.

15

D138055

CLAMP

tube

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, 7/8-14 inch flare branch x flare x adj straight thread, at upper lift frame crossover tube

2шт.

19

221733A1

SHIN

CLAMP tube, attaches to Ref. 5 tube above and Ref. 27 tube, see Figure 8-003, if used

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

If used Hex, M10 x 40, 8.8, Full Thd

2шт.

21

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube, if used

2шт.

22

892-11010

LOCK WASHER,M10

If used M10

2шт.

24

196815A1

TUBE

HOSE, FLEXIBLE (Tube), Crossover, Rear, Upper lift frame tube to rod end of bucket cylinder

1шт.

25

196813A1

TUBE

HOSE, FLEXIBLE (Tube), Crossover, Front, Lower lift frame tube to bucket cylinder closed end

1шт.

26

136226A1

HOSE

840 mm/33 inch long, at bucket cylinders

4шт.

27

192152A1

HYD TUBE,15.88 mm OD

TUBE bucket cylinder rod end

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

192156A1

TUBE,15.88 mm OD

right-hand bucket cylinder, closed end

1шт.

31

192154A1

HYD TUBE,15.88 mm OD

TUBE left-hand bucket cylinder, closed end

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adj O-ring boss, 90°

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

175238A1

CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

ASSEMBLY, 70/2-3/4 ID x 522 mm/20-9/16 inch stroke, loader bucket, see Figure 8-141

2шт.

35

250648A1

PROTECTOR

GUARD crossover tube, 3 mm thick

1шт.

36

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

39

L79937

SADDLE

SPACER rubber, tube

2шт.

40

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

41

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare

1шт.

44

221143A1

TUBE

bucket section,lower port at valve

1шт.

45

221146A1

TUBE

bucket section lower, port, Serial Range: tube-hose

1шт.

46

232934A1

TUBE,15.88 mm OD

bucket section, upper port at valve

1шт.

47

232936A1

TUBE

bucket section, upper port, Serial Range: tube-hose

1шт.

48

253111A1

SUPPORT

BRACKET tube mounting, 570LXT models, if used

1шт.

49

252831A1

SHIN

CLAMP, 1 inch tube, 570LXT models, if used

1шт.

50

252833A1

SHIN

CLAMP, 5/8 inch tube, 570LXT models, if used

1шт.

51

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8-1.25 x 25 mm, 570LXT models, if used

2шт.

52

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, 570LXT models, if used

2шт.

53

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , 570LXT models, If used M8

2шт.

54

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

570LXT models, if used M8, Cl 10

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used M10, Cl 10

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
