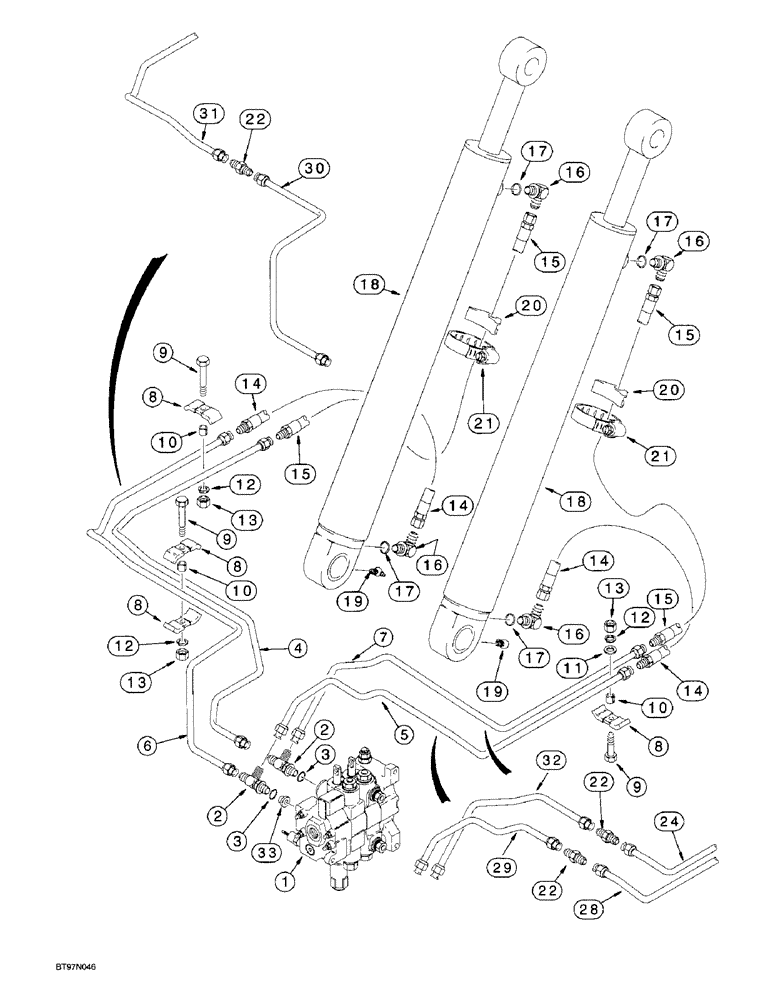

Запчасти Case 580L (8-010) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY loader control, for correct assembly and components, see Figure 8-070 - 8-073A

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare branch x flare x adj. O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

225330A1

TUBE

upper lift port to left hand loader lift cylinder rod end, used in production, services itself, for service order P/N 225330A1 tube, Ref. 4, models without ride control, see Figure 8-056 for parts used on models with ride control

1шт.

5

231984A1

TUBE

lower lift port to right hand loader lift cylinder closed end, used in production, for service order P/N 221158A1 and 232929A1 tubes and 218-435 connector, Ref. 22, 28 and 29

1шт.

6

225332A1

TUBE

lower lift port to left hand loader lift cylinder closed end, used in production, for service order P/N 232939A1, 232941A1 tubes and 218-435 connector, Ref. 22, 30 and 31, models without ride control, see Figure 8-056 for parts used on models with r

1шт.

7

231982A1

TUBE

upper lift port to right hand loader lift cylinder rod end, used in production, for service order P/N 221162A1 and 232931A1 tubes and 218-435 connector, Ref. 22, 24 and 32

1шт.

8

D138055

CLAMP

tube

4шт.

9

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

hex, 10 - 1.5 x 45 mm, Replaces P/N 814-10040, 40 mm long bolt used on some models

3шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

3шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

14

187535A1

HOSE,12.7mm ID x 720mm L

lift cylinder closed end, 720 mm/28-11/32 inch long

2шт.

15

187536A1

HOSE,12.7mm ID x 1090mm L

upper, port of control valve to lift cylinder rod end, 1090 mm/43 inch long

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adj. O-ring boss, 90°

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

131417A1

CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

ASSEMBLY, loader lift, 76 mm/3 inch ID x 766 mm/30-5/32 inch stroke, see Figure 8-138

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

20

D142787

SPACER

INSULATOR rubber

2шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare

1-3шт.

24

221162A1

TUBE

right hand loader lift cylinder rod end

1шт.

28

221158A1

TUBE

right hand loader lift cylinder closed end

1шт.

29

232929A1

HYD TUBE

TUBE lower lift port to right hand loader lift cylinder

1шт.

30

232939A1

TUBE

lower lift port to left hand loader lift cylinder, models without ride control, see Figure 8-056 for parts used on models with ride control

1шт.

31

232941A1

TUBE

left hand loader lift cylinder closed end, models without ride control, see Figure 8-056 for parts used on models with ride control

1шт.

32

232931A1

HYD TUBE

TUBE upper lift port to right hand loader lift cylinder

1шт.

33

232556A1

RESISTOR

RESTRICTOR drop rate orifice

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.
