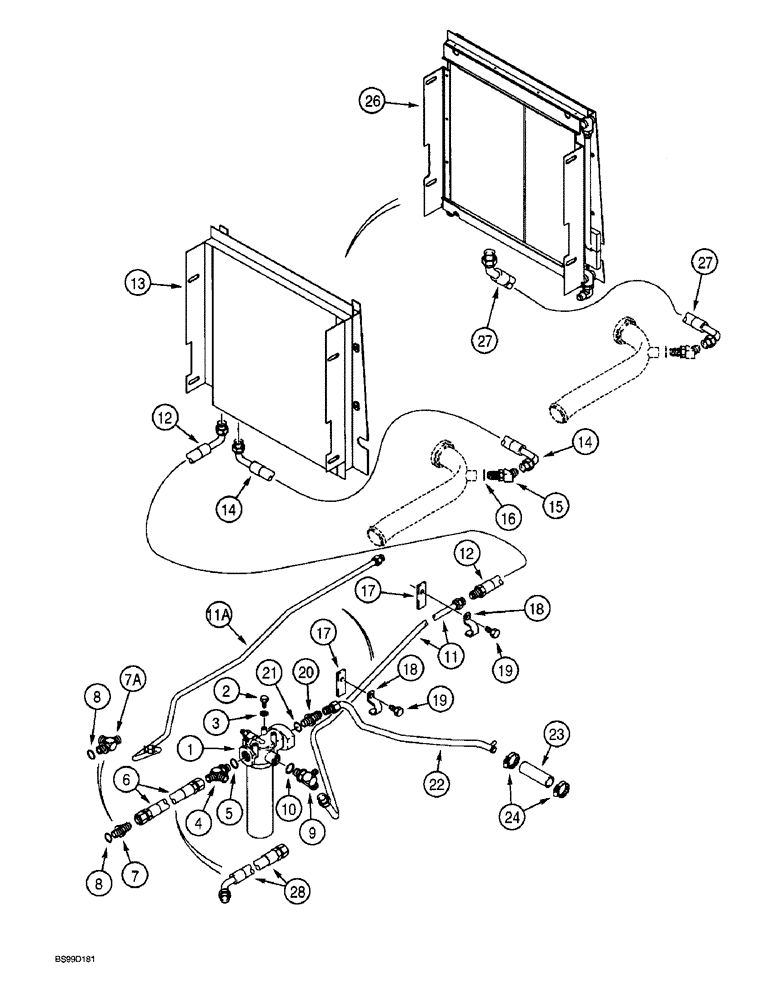

Запчасти Case 580L (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES AND FILTER(W/FLARED FITTINGS AT COOLER (08) - HYDRAULICS

1

122536A1

HYDRAULIC OIL FILTER

FILTER ASSEMBLY, hydraulic oil, see Figure 8-136

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

loader valve to filter and filter to backhoe control valve, 1-5/13-12 inch flare branch x flare x adj. O-ring boss, see Figure 8-66 for relocation of tee on models with three point hitch, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RIN, 1-11/64 ID x 7/64 inch wide

1шт.

6

144233A1

HOSE,1.0” ID x 890mm L

return, backhoe control valve to filter, 890 mm/35 inch long, no longer available, order P/N 313648A1 hose, Ref. 28

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, backhoe control valve outlet port, 1-5/16-12 inch flare x O-ring boss, models without extendable dipper

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

backhoe control valve outlet port, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, models with extendable dipper, if used, Includes: Ref. 8

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide, P/N 218-5069 or 218-5245 fitting

1шт.

9

228959A1

FITTING

TEE special, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

122176A1

TUBE

filter to cooler, 580L models, if used

1шт.

11a

227286A2

TUBE

filter to cooler, 570 LXT models, no longer used, order Ref. 11

1шт.

12

144220A1

HOSE,12.7mm ID x 595mm L

filter to cooler, 595 mm/23-7/16 inch long

1шт.

13

233817A1

COOLER, OIL

COOLER hydraulic oil, see Figure 6-020 for cooler mounting hardware, models without air conditioning

1шт.

14

144214A1

HOSE,12.7mm ID x 573mm L

cooler return, 573 mm/22-9/16 inch long, used with P/N 233817A1 cooler, models without air conditioning

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

14-7/8 inch flare x adj. O-ring boss, 45°, Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

115633A1

SUPPORT

PLATE mounting

2шт.

18

D143430

CLAMP

tube

2шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER straight, 1-5/16-12 flare x 1-5/8 inch O-ring, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

22

295172A1

TUBE

, Serial Range: return-tank

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

return tube to tank, 89 mm/3-1/2 inch long, cut from P/N S118383X bulk hose, see Figure 7-008 for attaching brake line clamp

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

26

291288A1

COOLER, OIL

COOLER hydraulic oil, heavy duty, see Figure 6-024 for cooler mounting hardware and component parts, models with air conditioning

1шт.

27

236231A1

HOSE

300 mm/11-13/16 inch long, used with P/N 291288A1 cooler, Ref. 26 on models with air conditioning

1шт.

28

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

HOSE, HYDRAULIC, Return, Backhoe control valve to filter, 910 mm/35-27/32" long

1шт.

S118383X

LARGE HOSE

HOSE bulk, 25 mm/1 inch x 38 mm/1-1/2 inch x 4877 mm/192 inch long

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

4шт.
