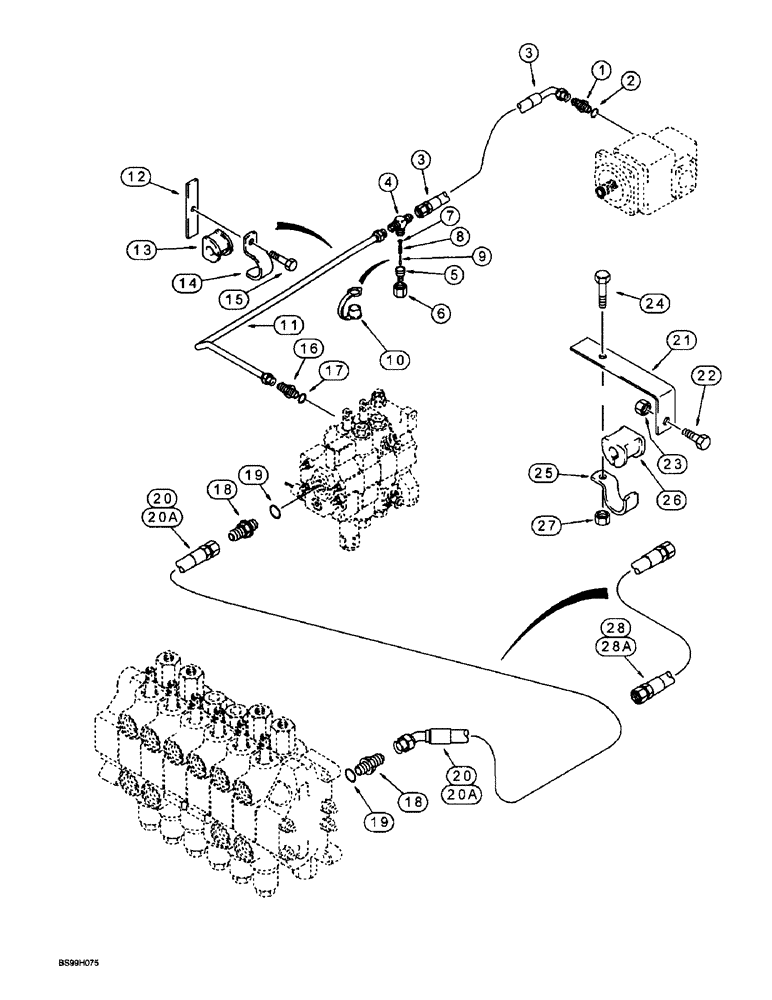

Запчасти Case 580L (8-006) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP AND LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 2

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

3

144215A1

HOSE,19.05mm ID x 576mm L

576 mm/22-11/16 inch long, large pump section port

1шт.

4

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1-1/16-12 flare branch x 1-5/16-12 inch flare x flare

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, Incl. Ref. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

6

425-1120

NUT,1 1/4"-12, G5

hex, 1-1/4 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

9

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

10

H434163

DUST CAP

CAP - dust, coupler

1шт.

11

122125A1

TUBE

tee to loader control valve inlet

1шт.

12

115507A1

SUPPORT

PLATE mounting

1шт.

13

D67297

BLOCK

INSULATOR rubber, tube

1шт.

14

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

1шт.

15

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare by O-ring boss, Incl. Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPATER straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 19

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

20

144240A1

HOSE,3/4" ID, 1028mm L

1028 mm/40-1/2 inch long, loader valve power beyond port to backhoe control valve inlet, models with 2 spool loader control valve, with hand held and or backhoe auxillary hydraulics

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

20a

144241A1

HOSE,19.05mm ID x 977mm L

977 mm/38-15/32 inch long, loader to valve power beyond prot to backhoe control valve inlet, models wtih 3 spool loader control valve, with hand held and or backkhoe auxiliary hydraulics

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

21

136008A1

SUPPORT

BRACKET mounting, hose, order P/N 213165, female coupling

1шт.

22

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex, full threads, 12-1.75 x 35 mm

1шт.

23

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

1шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

25

144479A1

CLAMP

isolation

1шт.

26

144477A1

ISOLATOR

Rubber

1шт.

28

315284A1

HOSE ASSY.,3/4" ID, 1006mm L

HOSE, 1006 mm/39-5/8 inch long, two spool loader valve power beyond port to backhoe control valve inlet, models without hand held or backhoe auxiliary hydraulics

1шт.

28a

325662A1

HOSE ASSY.

HOSE, 956 mm/37-21/32 inch long, three spool loader valve power beyond port to backhoe control valve inlet, models without hand held or backhoe auxiliary hydraulics

1шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
