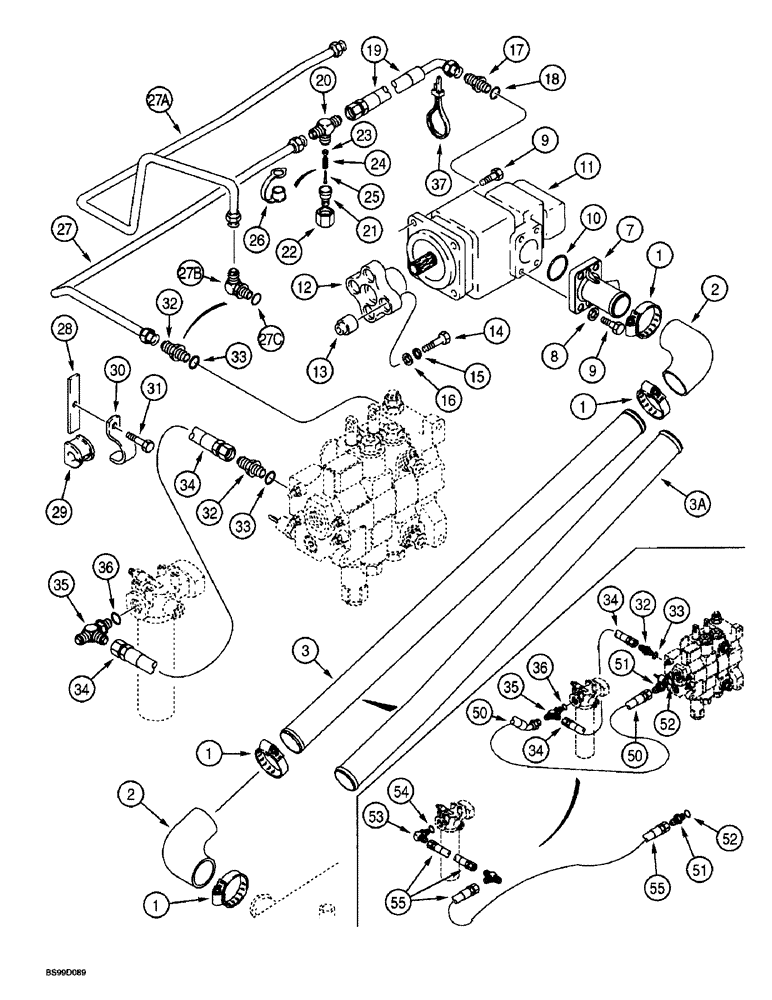

Запчасти Case 580L (8-005A) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE AND (08) - HYDRAULICS

1

259044A1

CLAMP

tube

4шт.

2

282497A1

HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7

- Suction, at hydraulic tank and pump 51.00 mm ID x 102.00 mm, SAE 30R7

2шт.

3

301273A1

TUBE,50.8 mm OD, 950 mm Length

suction, straight, if used

1шт.

3a

346198A1

TUBE,50.8 mm OD, 950 mm Length

suction, slight bend, if used

1шт.

7

308441A1

FLANGE

FLANGE tube

1шт.

8

895-15012

WASHER,M12 x 28 x 2.5

flat, 12.5 mm

4шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex, full threads, 12-1.75 x 35 mm

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

257953A1

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulic equipment, with 17 teeth shaft gear set, see Figure 8-068.

1шт.

11

257953A1R

REMAN-HYD PUMP

PUMP ASSEMBLY, hydraulic equipment, with 17 teeth shaft gear set, see Figure 8-068.

1шт.

11

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

257948A1

FLEXIBLE COUPLING,Flex, 17T

flex, 17 teeth, with steel plug, Incl 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING pump

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

coupling

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special, hardened

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

11/64 ID x 7/64 inch wide

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

576 mm/22-11/16 inch long, large pump section port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, pump outlet hose to loader valve inlet tube

1шт.

21

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, Incl. Ref. 21-25

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

22

425-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4 inch NF

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - coupling

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET - coupling

1шт.

26

H434163

DUST CAP

CAP - dust, coupler

1шт.

27

370137A1

TUBE,25.4 mm OD, 845, 524 mm Length

tee to loader control valve inlet, see Figure 8-012, Ref. 19-23 for tube clamps near loader valve, used with Ref 32 adapter, used on 580L models without hydraulic tool quick coupler, Replaces: P/N 122125A1

1шт.

27a

229341A1

TUBE

tee to loader control valve inlet, see Figure 8-0013, 19-23 or 8-015, Ref.48-54 for tube clamps near loader valve, used with Ref 27B elbow on 570LXT models without hydraulic tool quick coupler, see 8-060 for tube used, or order P/N 370137A1

1шт.

27b

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, if used, see Figure 8-061 for hydraulic tool quick coupler, Incl. Ref. 27C

1шт.

27c

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

28

115507A1

SUPPORT

PLATE mounting

1шт.

29

D67297

BLOCK

INSULATOR rubber, tube

1шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

1шт.

31

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, at loader valve inlet and outlet ports, adapter at upper port is replaced by a tee on models with loader hydraulic tool quick coupler, see Figure 8-060, Ref. 10, Incl. Ref. 33

1-2шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

34

144227A2

HOSE,19.05mm ID x 472mm L

472 mm/18-19/32 inch long, loader valve to filter, models without ride control, see Figure 8-056 for parts and Fig 8-066 for models with three-point hitch, see Figure 8-062 for hose used on models with coupler, Repla

1шт.

35

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare branch x flare x adj O-ring boss, loader valve to filter and filter to backhoe control valve, Includes: Ref. 36

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, if used

1шт.

50

144241A1

HOSE,19.05mm ID x 977mm L

977 mm/38-15/32 inch long, filter to loader valve power beyond port, if used, loader models only

1шт.

51

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, loader valve power beyond port, loader models only, Incl. Ref. 52

1шт.

52

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide, loader models only

1шт.

53

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, at filter to loader valve power beyond port, if used, loader models only, Incl. Ref. 54

1шт.

54

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide, loader models only

1шт.

55

236116A1

HOSE

430 mm/16-15/16 inch long, loader valve to filter, if used, loader models only

2шт.
