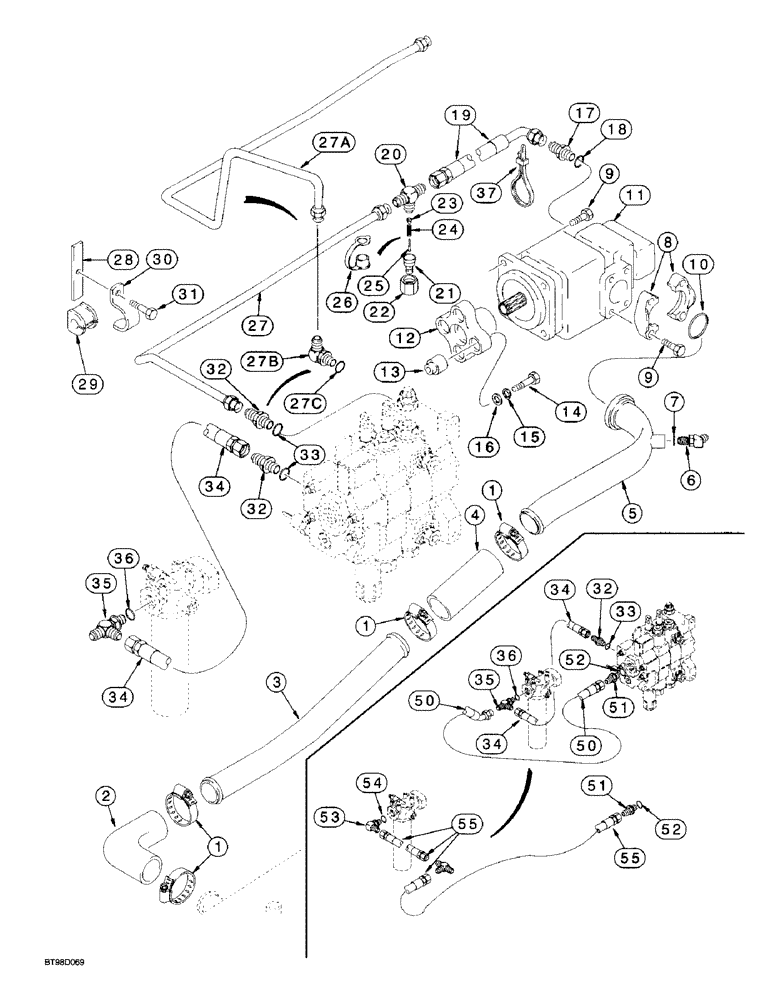

Запчасти Case 580L (8-002[A]) - EQUIP HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE AND LOADER VALVE TO FILTER (08) - HYDRAULICS

1

259044A1

CLAMP

tube

4шт.

2

282497A1

HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7

- Suction, at hydraulic tank 51.00 mm ID x 102.00 mm, SAE 30R7

1шт.

3

131586A1

TUBE

suction

1шт.

4

282496A1

HOSE,51.00 mm ID x 152.40 mm, SAE 30R6

- Coupler 51.00 mm ID x 152.40 mm, SAE 30R6

1шт.

5

121817A1

HYD TUBE

TUBE suction, at hydraulic equipment pump

1шт.

6

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjustng O-ring boss, 45°, to cooler return hose, Incl. Ref 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A14141

FLANGE

split, 2 inch

2шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex, full threads, 12-1.75 x 35 mm

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

257953A1

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulic equipment, with 17 teeth shaft gear set, see Figure 8-068

1шт.

11

257953A1R

REMAN-HYD PUMP

PUMP ASSEMBLY, hydraulic equipment, with 17 teeth shaft gear set, see Figure 8-068

1шт.

11

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

257948A1

FLEXIBLE COUPLING,Flex, 17T

flex, 17 teeth, with steel plug, Includes: Ref. 12-13

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING pump

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

coupling

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special, hardened

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

576 mm/22-11/16 inch long, large pump section port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, pump outlet hose to loader valve inlet tube

1шт.

21

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, Incl. Ref. 21-25

1шт.

21

196065A1

BUSHING

BODY coupling, order P/N 213165, mates to quick disconnect coupling

1шт.

21

196065A1

BUSHING

BODY coupling, order P/N 213165

1шт.

22

425-1120

NUT,1 1/4"-12, G5

hex, 1-1/4 inch NF

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

26

H434163

DUST CAP

CAP - dust, coupler

1шт.

27

122125A1

TUBE

tee to loader control valve inlet, see Figure 8-012, Re. 19-23 for tube clamps near loader valve, used with Ref. 32 adapter, used on 580L models without hydraulic tool quick coupler

1шт.

27a

229341A1

TUBE

tee to loader control valve inlet, see Figure 8-012, Ref. 19-23, or Figure 8-014, Ref. 48-54 for tube clamps near loader valve, used with Ref. 27B elbow on 570XLT models w/o hydraulic tool quick coupler, see Figure 8-060 for tube with hydraulic

1шт.

27b

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, if used, see Figure 8-060 for hydraulic tool quick coupler, Incl. Ref. 27C

1шт.

27c

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

28

115507A1

SUPPORT

PLATE mounting

1шт.

29

D67297

BLOCK

INSULATOR rubber, tube

1шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

1шт.

31

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, at loader valve inlet and outlet ports, adapter at upper port is replaced by a tee on models with loader hydraulic tool quick coupler, see Figure 8-60, Ref 10, Incl. Ref. 33

1-2шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

11/64 ID x 7/64 inch wide

1шт.

34

144227A1

HOSE

520 mm/20-15/32 inch long, loader valve to filter, models without ride control, see Figure 8-056 for parts used on models with ride control and Figure 8-066 for models with three-point hitch

1шт.

35

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare branch x flare x adj O-ring boss, loader valve to filter and filter to backhoe control valve, Includes: Ref. 36

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, if used

1шт.

50

144241A1

HOSE,19.05mm ID x 977mm L

977 mm/38-15/32 inch long, filter to loader valve power beyond port, if used, Loader models only

1шт.

51

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, loader valve power beyond port, Loader models only, Inc: Ref. 52

1шт.

52

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide, Loader models only

1шт.

53

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, at filter to loader valve power beyond port, if used, loader models only, Incl. Ref. 54

1шт.

54

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide, Loader models only

1шт.

55

236116A1

HOSE

430 mm/16-15/16 inch long, loader valve to filter, if used, Loader models only

2шт.
